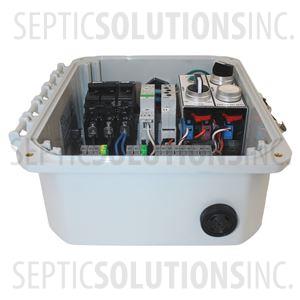

Legacy Controls Essential Series LE-4004 Simplex Timed Dose Control Panel (120V/230V, 0-15FLA)

LE-4004 Key Features

• Timed Dosing Control — Built-in Elko CRM-2H UNI timer lets you program precise on/off cycles to control effluent volume and protect downstream treatment systems.
• Three-Float Level Control — Dedicated terminals for Timer Enable, Timer Override, and High Water Alarm floats (float switches sold separately). The pump activates based on your timer settings when the enable float rises.
• Instant High-Water Alarm — Bright 360° red alarm beacon and loud 85+ dB buzzer activate immediately on high level for early warning and code compliance.
• Pump Run Indicator — Clear light shows pump status at a glance.
• Heavy-Duty Industrial Components — Sealed rotary HOA (Hand-Off-Auto) switch, tactile Alarm Test and Silence buttons, Elco VS220 contactor, and robust circuit breakers.
• Independent Power Circuits — Separate pump and alarm circuits ensure the alarm remains active even if the pump breaker trips.
• Dual Voltage Flexibility — Ships configured for 120V; simply remove one jumper for 230V operation. Alarm circuit stays 120V.
• Weatherproof & Durable — NEMA 4X polycarbonate enclosure with stainless steel lockable latch stands up to outdoor exposure.
• Easy Installation & Service — Color-coded wiring, clearly labeled terminal blocks (26–10 AWG, 600V rated), and field wiring strips.

LE-4004 Specifications

• Legacy Controls Essential Series LE-4004
• 120/240 VAC single-phase, 0–15 FLA rating

• 20 Amp Pump Circuit Breaker, 10 Amp Alarm/Control Circuit Breaker
• 1 HP @ 120 V / 2 HP @ 240 V – ideal for residential and light commercial use

• Industrial-grade components with 26–10 AWG, 600 V rated terminal blocks
• Elko CRM-2H UNI Timer to control dosing intervals
• 360 Degree Red Alarm Light Beacon
• High Decibel Alarm Buzzer (85 dB)
• Pump Run Indicator Light
• Pump Hand/Off/Auto Rotary Toggle
• Alarm Test Heavy Duty Button
• Alarm Silence Heavy Duty Button
• Elco VS220 Motor Contactor (300,000 cycle rating)
• 20 Amp Motor circuit breaker
• 10 Amp Control circuit breaker

• Stainless Steel lockable door latch
• Color Coded Wiring, Field Wiring Terminal Strips
• NEMA 4X Enclosure, UL 508A listed (NITW/NITW7)
• External Dimensions: 9.5'' x 11.5'' x 5.0''

• Two Year Limited Warranty

LE-4004 Applications

• Timed dosing to sand filters, mound systems, or drip distribution
• Simplex effluent or sewage lift stations
• Residential and light commercial septic systems
• New installations or replacement panels

This no-frills panel focuses on reliability, easy maintenance, and long-term performance in tough conditions — exactly what installers and service technicians demand.

Note: Float switches are not included.

Wiring & Voltage Configuration

This panel is designed for quick setup:

• 120V Operation (default): Jumper installed between terminals 2 (L2) and N.
• 230V Operation: Remove the jumper and wire both hots accordingly.
• Alarm circuit remains 120V, so with 230V operation an incoming Neutral wire is still required.

Detailed wiring instructions and a schematic are included with the panel and available for download.

What's Included

• LE-4004 Control Panel

• All necessary internal components (timer, contactor, breakers, beacon, buzzer, etc.)

Note: Floats switches are sold separately!
