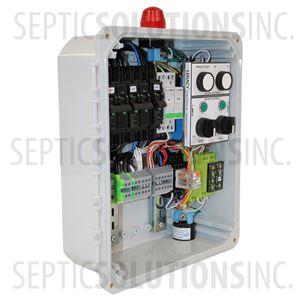

Legacy Controls Essential Series LE-6004 Duplex Timed Dose Control Panel (120V/230V, 0-16FLA)
The Legacy Controls Essential Series LE-6004 is a robust duplex timed dose control panel built for systems requiring two alternating submersible pumps. It delivers precise time-based dosing while providing automatic lag pump activation and high-water alarm protection — ideal for higher-flow or redundant residential and light commercial septic setups.
Designed for effluent dosing to advanced treatment systems (sand filters, mound systems, drip irrigation) or sewage lift stations, this panel uses a proven three-float configuration (Timer Enable, Timer Override, and High Water Alarm). When the high water float activates, the lag pump engages automatically — no fourth float required. This keeps your system running smoothly even if the lead pump can't keep up.
In Stock
Item #:CP-001-6-0004
Manufacturer:Legacy Controls
LE-6004 Key Features
- True Duplex Operation with Alternation — Built-in logic alternates between the two pumps for even wear and extended service life.
- Timed Dosing Control — Elko CRM-2H UNI timer allows precise on/off cycle programming to control effluent delivery and protect downstream treatment components.
- Automatic Lag Pump Activation — On high water level, the lag pump engages automatically alongside or instead of the lead pump for added capacity and reliability.
- Three-Float Simplicity — Dedicated terminals for Timer Enable, Timer Override, and High Water Alarm floats (float switches sold separately).
- Instant High-Water Alarm — Bright 360° red alarm beacon and loud 85+ dB buzzer provide immediate visual and audible alerts for early warning and regulatory compliance.
- Pump Run Indicators — Clear lights show status for each pump at a glance.
- Heavy-Duty Components — Includes sealed rotary HOA (Hand-Off-Auto) switches, tactile Alarm Test and Silence buttons, industrial-grade Elco VS220 contactors, and robust circuit breakers.
- Independent Circuits — Separate power for pumps and alarm — the alarm stays active even if a pump breaker trips.
- Dual Voltage Flexibility — Ships pre-configured for 120V; simply remove one jumper for 230V/240V operation (alarm circuit remains 120V).
- Rugged Outdoor Enclosure — NEMA 4X polycarbonate enclosure with stainless steel lockable latch withstands harsh weather and corrosive environments.
- Easy Installation & Maintenance — Color-coded wiring, clearly labeled terminal blocks (26–10 AWG, 600V), and accessible field wiring terminals.
- Float Switches Included - (3) N/O Control Duty Floats with 15' Cords included
LE-6004 Specifications
- Legacy Controls Essential Series LE-6004
- 120/240 VAC single-phase, 0–16 FLA rating
- (2) 20 Amp Circuits for Submersible Pumps, (1) 10 Amp Circuit for Control / Alarm
- 1 HP @ 120 V / 2 HP @ 240 V – ideal for residential and light commercial use
- Industrial-grade components with 26–10 AWG, 600 V rated terminal blocks
- Elko CRM-2H UNI Timer to control dosing intervals
- 360 Degree Red Alarm Light Beacon
- High Decibel Alarm Buzzer (85 dB)
- Pump Run Indicator Light
- Pump Hand/Off/Auto Rotary Toggle
- Alarm Test Heavy Duty Button
- Alarm Silence Heavy Duty Button
- Elco VS220 Motor Contactor (300,000 cycle rating)
- 20 Amp Motor circuit breaker
- 10 Amp Control circuit breaker
- Stainless Steel lockable door latch
- Color Coded Wiring, Field Wiring Terminal Strips
- NEMA 4X Enclosure, UL 508A listed (NITW/NITW7)
- External Dimensions: 12.0'' x 14.25'' x 5.0''
- Two Year Limited Warranty
LE-6004 Applications
- Timed dosing to sand filters, mound systems, or drip distribution
- Duplex effluent or sewage lift stations
- Residential and light commercial septic systems
- New installations or replacement panels
This no-frills panel focuses on reliability, easy maintenance, and long-term performance in tough conditions — exactly what installers and service technicians demand.
Wiring & Voltage Configuration
This panel is designed for quick setup:
- 120V Operation (default): Jumper installed between terminals 2 (L2) and N.
- 230V Operation: Remove the jumper and wire both hots accordingly.
- Alarm circuit remains 120V, so for 230V operation an incoming Neutral wire is required.
Detailed wiring instructions and a schematic are included with the panel and available for download.
