Polylok Heavy Duty Trench/Channel Drain - Six Pack of 4 ft Sections (Grey)

SIX PACK OF 4 FT SECTIONS

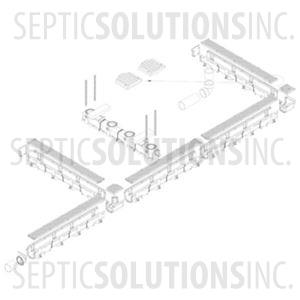

The Polylok Heavy Duty Trench/Channel Drain is engineered for the most flexibility in a heavy duty design. This channel drain can be H-20 wheel load rated when cast in reinforced concrete. It offers a modular design with interlocking components including 90 degree corners and Tees. Each section is 4' in length and comes with a reversible ADA compliant grate that can be either flat, or allow a 3/16'' convex surface.

In Stock

$414.00MSRP: $499.00

Item #:PL-90860-6G

Manufacturer:Polylok

HEAVY DUTY TRENCH DRAIN SPECIFICATIONS

Model: PL-90860 (Grey)
4 ft Sections x 6 inches wide
Can be cut every 12'' to reduce length (pre-marked from the factory)
Grates are ADA compliant
Grates are reversible with a flat side and a side with a 3/16'' convex
Grates are fastened using provided #8 x 1-1/4'' stainless steel screws
H-20 Wheel Load rating when cast in reinforced concrete
Traffic speed not to exceed 20 mph. Not recommended for forklift traffic.
Open and Closed End Caps available
90 Degree Elbows and Tees available
Each segment has 8 anchor positions to allow rebar to be installed to prevent floating
2x4's can easily be fastened to the base to aid in leveling and anchoring
Each segment has four drainage ports to enable 3'' or 4'' SCH 40 or 4'' SDR35 connections
