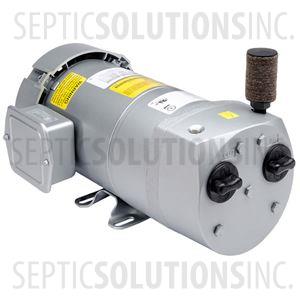

Gast AT05 Rotary Vane Septic Air Pump
Known as the industry workhorse, the AT05 delivers reliable, pulse-free airflow with minimal maintenance, making it the choice of professional installers. The Gast AT05 Rotary Vane compressor fits many 500 GPD or larger aerobic septic systems. The externally mounted cooling fan on motor promotes longer life and is recommended for use on septic systems.
The Gast AT05 Rotary Vane aerator is a compatible replacement for the following models:
|
|
The Gast AT05 Rotary Vane Septic Air Pump is engineered for longevity and efficiency, offering superior performance in high-pressure applications.
In Stock
Item #:AT05
Manufacturer:Gast
Gast AT05 Rotary Vane Specifications
- Gast Model AT05-101-G215DX
- 4.8 cfm (cubic feet per minute) Maximum Air Flow (@ 0 PSI)
- 5.0 psi Maximum Continuous Operating Pressure
- 1/4'' Female Threaded Outlet
- 1/4 HP, 120VAC, 60 Hz, 4.7A
- 1 Phase, 1725 RPM, 1.00SF
- Totally Enclosed External Motor Cooling Fan (Not Included on 0523 Model)
- Dimensions: 13.74'' L x 8.32'' W x 6.30'' H
- Includes All Internal and External Air Filters and Mounting Feet
- Condition: NEW
- Replaces the Gast models 0323, 0523, RV03, RV05, Thomas QR-0030, and Thomas QR-0050
- Fits Many 500, 600, and 750 GPD Aerobic Treatment Systems (Sizing is Determined By Brand of Aerobic System)
- Replacement Parts Available
- One Year Manufacturer's Warranty
Gast AT05 Rotary Vane Applications
The Gast AT05 Rotary Vane septic air compressor is used on 500-750 GPD rated NSF Class 1 Standard 40 aerobic treatment systems (ATUs).
The Gast AT05 unit includes an external motor cooling fan which promotes longer motor life when compared to the Gast 0523 model which does not include this external fan. The Gast AT05 is recommend in continuous duty applications and also applications where the motor will be running in a very warm ambient environment.
