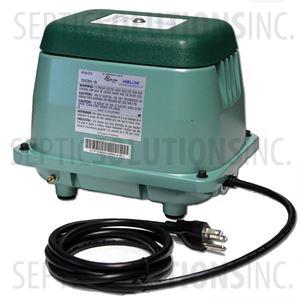

Hiblow Outback 80 High Heat Linear Septic Air Pump

Outback 80 Features & Benefits

• Extreme Heat Resistance: Re-engineered diaphragms handle heat from high ambient temperatures, poor ventilation, and high backpressure.
• Same Reliable Performance: Identical 80 LPM output and specs to the standard HP-80.
• Quiet & Efficient: Low noise (36 dBA @ 1m) and energy-efficient operation.
• Durable Design: Built for long service life in demanding ATU environments.
• Easy Maintenance: Compatible with existing rebuild kits; new Outback-specific full repair and diaphragm-only kits available.
• Includes: Rubber 90° elbow with hose clamps and 1/8" brass alarm connection fitting.

Outback 80 Specifications

• 4.2 cfm (cubic feet per minute) Maximum Air Flow (@ 0 PSI)
• 80 LPM (Liters Per Minute) @ 2.13 PSI
• 3.6 PSI Maximum Continuous Operating Pressure
• 120 VAC, 60 Hz, 1.6A, 71 Watts
• 36 dBA Measured @ 1 Meter
• Dimensions: 9.3'' L x 7.1'' W x 7.8'' H

• Condition: NEW

• Includes Rubber 90 with Hose Clamps
• Includes 1/8'' Brass Alarm Connection Fitting
• Replaces HP-80-0110, Thomas 5078S and 5080S, Secoh EL-80-15, Medo LA-80B, and other 80 LPM Linear Air Pumps
• Fits Many 500 and 600 GPD Aerobic Treatment Systems (Sizing is Determinded By Brand of Aerobic System)
• WHALE OF A DEAL - EXTENDED TWO YEAR WARRANTY!
  (The Standard Manufacturer's Warranty is one year and Septic Solutions' warranties this unit in full for an additional year)

Outback 80 Applications

Perfect for 500-600 GPD aerobic treatment units (ATUs), including brands like Hoot, Hydro-Action, Clearstream, and many others. The Outback version is especially recommended for installations in hot, humid, or enclosed conditions where standard pumps overheat or fail prematurely.

AEROBIC SYSTEM COMPATIBILITY

The Hiblow HP-80 septic air pump is a compatible replacement for use on many 500 & 600 GPD (Gallons Per Day) rated aerobic treatment units, including but not limited to the following systems:

THE LIFELINE TO YOUR AEROBIC SEPTIC SYSTEM!

The septic air pump is literally the lifeline of your aerobic system. The system cannot function the way it was designed without the air pump working. The actual purpose of the air pump is two-fold. First, the air pump puts oxygen into the water allowing the formation and survival of Aerobic bacteria. These Aerobic bacteria are what eat up all of the waste in the tank. They are much larger and more efficient at processing waste as compared to the anaerobic bacteria found in a conventional septic system.

Secondly, the air pump creates an action in the tank that breaks down large solids into tiny particles, making it very easy for the bacteria to attach to and devour the waste.

If you air pump quits working on your aerobic system, over a period of about 2 weeks the system will begin to turn back anaerobic. The biggest problem with this happening is that there is no secondary treatment system behind your aerobic system, as you have in a conventional anaerobic septic system. Once the aerobic system turns back anaerobic, instead of producing a clear odorless discharge the effluent will be closer to raw sewage. As you may realize, raw sewage discharging into a ditch, lake, or pond, or being sprayed on your lawn is not a good thing. This is why it is important to your system for the air pump to be up and running.

SEPTIC AIR PUMP SIZE DOES MATTER!

The other misconception is that the air pump just puts air in the water, so it doesn’t really matter which size is used. Nothing could be further from the truth. Air pump sizing is actually very important to the operation of your system, and not every system will use the same size air pump. If you have been our website, then you already know there are many different types and sizes. The air pump size is normally determined by the volume capacity of the tank, the style of air diffusers in the tank, and how many GPD (Gallons Per Day) the system is designed to treat.

Our sales team can make sure you get the right size pump if you are unsure about this aspect of buying a new one. In most cases we only need either the model number of the pump you are replacing, or the brand of your aerobic system and the GPD that it is rated to treat. Again, size does matter and it is very important that you get the correct air pump for your system.

Why the Air Pump Is Essential for Your Septic System

The septic air pump is the lifeline of your aerobic treatment system. It serves two critical functions:

1. Oxygenation: Supplies oxygen to the tank, enabling aerobic bacteria to thrive and efficiently break down waste, producing clear, odorless effluent.
2. Solid Breakdown: Creates agitation to break large solids into smaller particles, making it easier for bacteria to process waste.

Without a functioning air pump, your system may revert to an anaerobic state within about two weeks, leading to raw sewage-like effluent and potential environmental hazards. Proper pump sizing is crucial, and the Hiblow HP-80 is specifically designed for 500-600 GPD systems, ensuring optimal performance.

Replacement Parts and Maintenance

Extend the life of your Hiblow Outback 80 with our genuine OEM rebuild kits and parts, available for immediate shipping:

• Diaphragm Kits: Replace every 4-5 years to maintain airflow and pressure.
• Air Filters: Rinse or replace every 6-12 months to prevent debris buildup.

Visit our Hiblow HP-60/80 Parts page for a full selection, or watch our Hiblow HP-80 Rebuild Tutorial for step-by-step maintenance instructions. Maintenance is simple—remove the top cover, rinse the air filter, and replace diaphragms as needed.
