Ultra-Air Model 735 RED Septic Aerator - Alternative Replacement for Jet Aerator

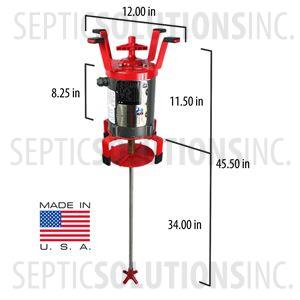

ULTRA-AIR® MODEL 735 RED SPECIFICATIONS

ULTRA-AIR® MODEL 735 RED ADVANTAGES

MADE 100% IN THE USA!

The Ultra-Air Model 735 aerator is made 100% in the USA! The electric motors are made specially for Septic Solutions by Baldor Electric Motor Company in FT. Smith, Arkansas. The plastic parts are manufactured in Indiana from molds owned by Septic Solutions, Inc. The brackets are stamped, bent, and powder-coated right here in our hometown of Dieterich, Illinois. The shaft and brass couplings are also machined right here in our hometown of Dieterich, Illinois. The units are assembled, boxed, and shipped from here at our facility in Dieterich, Illinois. With the Ultra-Air Model 735 you are getting a quality product that has been completely manufactured and assembled from start to finish 100% in the USA!

FLOOD RESISTANT MODELS AVAILABLE!

The Ultra-Air® Model 735 is the only aftermarket product available with a Flood Resistant motor. The White Splash Flood Resistant unit uses the same Baldor 1/4 HP electric motor, but this motor is specially sealed and can withstand being submerged for intermittent periods of time. If you have issues with the system backing up due to an outlet being plugged or a failed submersible pump, we would recommend the Flood Resistant unit.

WELD-FREE BRACKET SYSTEM

The Ultra-Air® Model 735 uses an eight-piece bracket system (4 top, 4 bottom) with no welds. Some units available on the market use a four-piece bracket system that includes spot welds that hold the bottom and top supports together. These spot welds create a weak point in the bracket system and can cause the brackets to fail over time when exposed to the high moisture tank environment and the constant vibration of the motor.

If the brackets fail, you would lose your motor in the bottom of your tank. Our bracket system contains zero welds and zero weak points and will not fail over time.

MOTOR SHIELD/HANDLE WITH FRESH AIR HOSE BARB

The Ultra-Air® Model 735 comes with a motor shield that includes a handle and a fresh air hose barb. The handle allows for easy installation and maintenance of your aerator. The air hose barb allows you to attach a hose from the top of the motor going out the vented lid in your tank to always ensure the motor is pulling fresh oxygen into your system. The specially designed handle will ensure that you can easily place your motor both in and out of the tank without damaging and potentially bending the shaft which would significantly reduce the life of your motor. The motor shield incorporated into the handle will also better protect the motor from the harsh environment found inside the tank. Many of the competitive brands do not have these very important features.

LARGE 5'' SUDS RESTRICTOR

The Ultra-Air® Model 735 comes with a large 5'' suds restrictor. The suds restrictor is designed to set above the water level in the tank and prevent foam and suds from getting up into the electric motor. The 2'' - 3'' suds restrictor on other models available on the market are not adequate to truly protect the motor from foam and suds. The suds restrictor can also act as a high water alarm. If the water level gets above the suds restrictor, it will cause the motor to pull high amps and trip the reset in your control panel. This will signal an alarm and let you know there is an issue.

AERODYNAMIC ASPIRATOR THAT IS TRUE TO THE OEM DESIGN

Our revolutionary Aerodynamic Aspirator performs true to OEM airflow specifications and requirements but provides nearly 25% reduction in drag on the motor. This leads to longer motor life and less electricity usage while not sacrificing performance.

The new aspirator design is extremely important. The 4-prong design promotes better stirring action and more oxygen diffusion in the tank. The longer prongs push air bubbles at a higher volume, deeper into the liquid waste, providing a much better aeration effect versus the "old-style" aspirator tips. The photo to the right shows the "old-style" (pictured left) next to the new Aerodynamic Aspirator (pictured right).

Without enough oxygen your aerobic system will not produce the high quality of effluent required in most States. This "older-style" of an aspirator was abandoned by the Original Equipment Manufacturers some 20 years ago due to its inability to draw enough oxygen into the system. A properly working system is important to our environment.

The Three Year Limited Warranty is effective on all units purchased on or after 6-26-2017. Any units purchased before this date were sold with a One Year Limited Warranty

Jet is a Registered Trademark of Jet, Inc.

Please Review Our Disclaimer before making any purchases

Septic Solutions, Inc. purchased these Ultra-Air air pumps directly from Ultra-Air's authorized distributor. Septic Solutions, Inc. is offering these pumps and parts as alternative replacements that are comparable to your existing Jet aerator, Norweco aerator, or other Septic Tank aerator. The Ultra Air was not tested on an NSF Certified Aerobic system as is required in some areas. It is the sole responsibility of the purchaser to check with their local regulatory authorities to ensure compliance.
