Legacy Controls Essential Series LE-6003 Duplex Control Panel (120V/230V, 0-15FLA)

The Legacy Controls Essential Series LE-6003 is a reliable, heavy-duty duplex control panel designed for residential and light commercial septic systems, sewage lift stations, and effluent dosing applications that require two alternating submersible pumps.

Built for durability and simplicity, the LE-6003 provides true duplex alternation for even pump wear, automatic high-water alarm protection, and optional lag pump activation. It uses a proven four-float control strategy (Off, Lead On, optional Lag On, and High Water Alarm) and is ideal for new installations or as a direct replacement for older duplex panels.

This panel requires three float switches (sold separately). A fourth float switch can be added for full lag pump functionality during high-flow conditions.

In Stock

$969.00MSRP: $1299.00

Item #:CP-001-6-0003

Manufacturer: Legacy Controls

Product Documents

CONNECTION DIAGRAM

OPERATION MANUAL

Related Items

Alderon Altra Control Duty Mechanical Float Switch with 10' Cord

Alderon Altra Control Switch with 10' Cord

Item #:2001054

Our Price: $49.00MSRP: $65.00

Ships Wednesday
with FREE SHIPPING

Order in the next: -- hr --min --sec

Ship Date Wed, Apr 29

Delivery: 1-4 Business Days

Product Information
Product Documents

LE-6003 Key Features

True Duplex Alternation – Built-in alternating relay ensures both pumps get equal runtime, maximizing system life and reliability.
Three- or Four-Float Operation – Standard three-float setup (Off / Lead On / High Alarm) with easy terminals for an optional Lag On float.
High-Visibility Alarms – Bright 360° red alarm beacon and loud 85+ dB buzzer for immediate high-water notification.
Pump Run Indicator – Clear LED shows which pump is operating at a glance.
Heavy-Duty Components – Industrial-grade HOA (Hand-Off-Auto) rotary switches, tactile alarm test/silence buttons, and Elco contactors.
Separate Power Circuits – Independent pump and alarm circuits keep the alarm active even if a pump breaker trips.
Dual Voltage Ready – Ships pre-wired for 120V; simple jumper removal converts to 230V operation.
Weatherproof & Secure – NEMA 4X polycarbonate enclosure with stainless steel lockable latch for outdoor installation.
Easy Installation – Color-coded wiring, clearly labeled terminal blocks, and full wiring diagram included.
UL 508A Listed – Meets strict safety and quality standards.

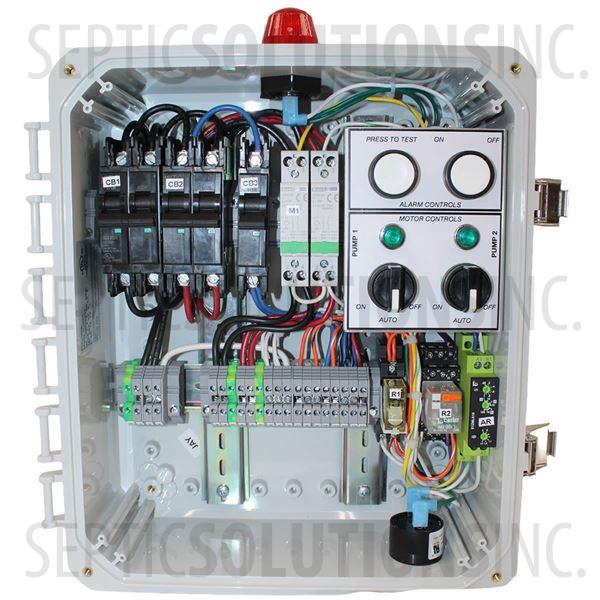

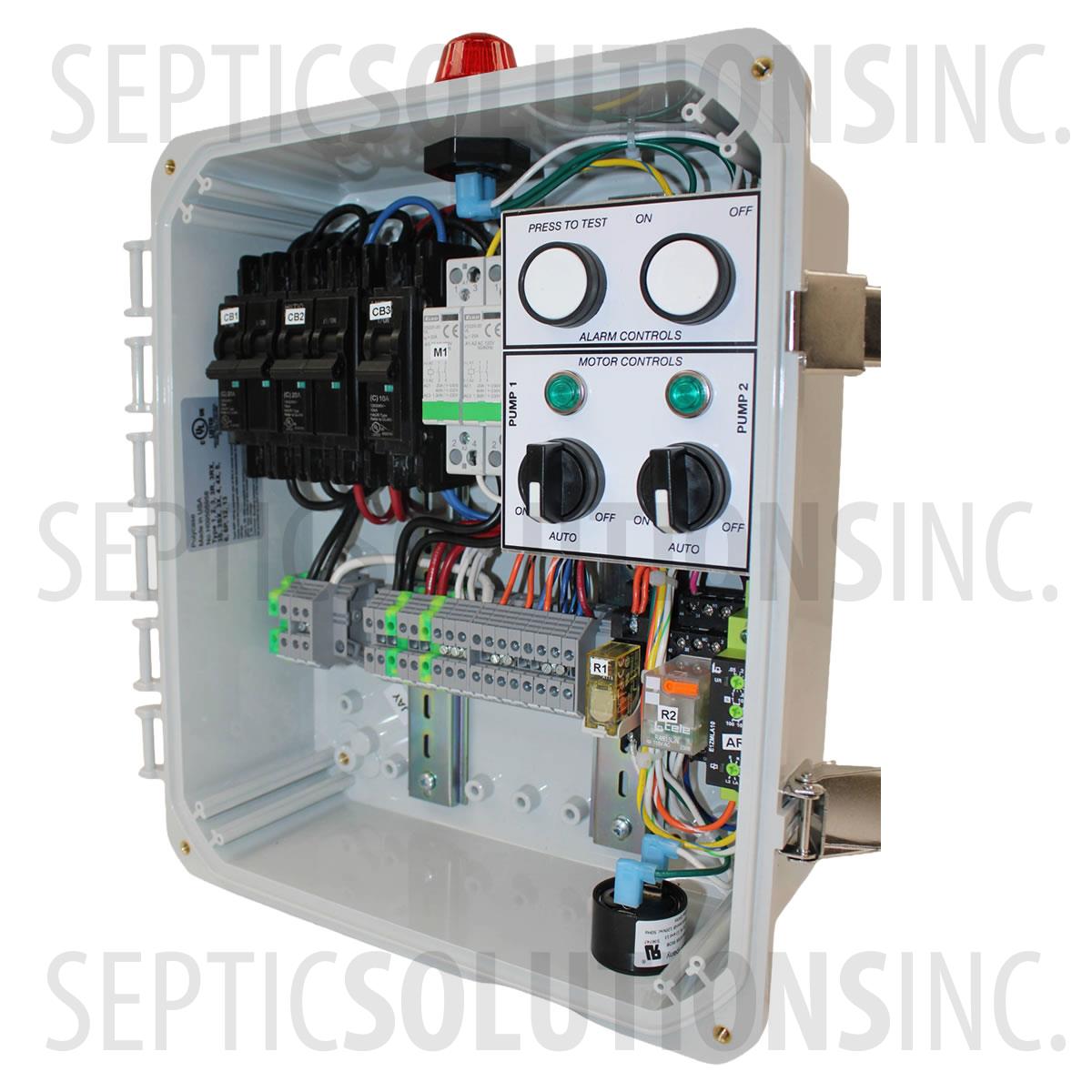

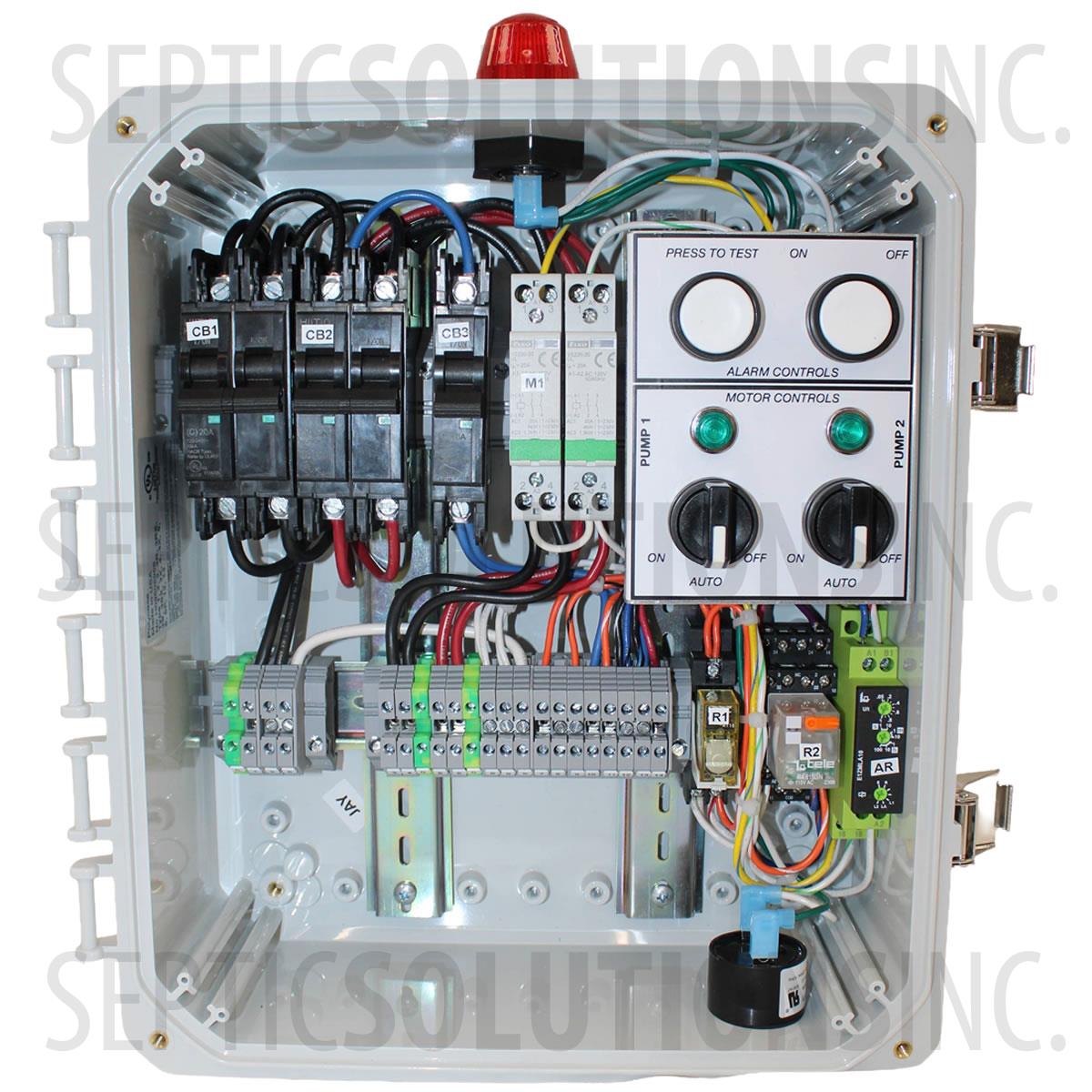

LE-6003 Specifications

Legacy Controls Essential Series LE-6003
120/240 VAC single-phase, 0–15 FLA rating
Two Power Inputs: 120/240VAC for Pump Circuits, 120VAC for Control Circuit
(2) 20 Amp Circuits for Submersible Pumps, (1) 10 Amp Circuit for Control / Alarm
1 HP @ 120 V / 2 HP @ 240 V – ideal for residential and light commercial use
Industrial-grade components with 26–10 AWG, 600 V rated terminal blocks
360 Degree Red Alarm Light Beacon
High Decibel Alarm Buzzer (85 dB)
Pump Run Indicator Light
Pump Hand/Off/Auto Rotary Toggle
Alarm Test Heavy Duty Button
Alarm Silence Heavy Duty Button
Elco VS220 Motor Contactor
20 Amp Motor circuit breaker
10 Amp Control circuit breaker
Stainless Steel lockable door latch
Color Coded Wiring, Field Wiring Terminal Strips
NEMA 4X Enclosure, UL 508A listed (NITW/NITW7)
External Dimensions: 12.0'' x 14.25'' x 5.0''
Two Year Limited Warranty

LE-6003 Applications

Duplex sewage and effluent lift stations
Residential and light commercial septic systems
Demand-dose pumping applications
New installations or control panel replacements

Ideal for any single-phase submersible pump up to 15 FLA that requires dependable float-based automatic operation and high-level alarm protection.

Note: Float switches are not included.

Wiring & Voltage Configuration

This panel is designed for quick setup:

120V Operation (default): Jumper installed between terminals 2 (L2) and N.
230V Operation: Remove the jumper and wire both hots accordingly.
Alarm circuit remains 120V only with its own dedicated terminals.

Detailed wiring instructions and a schematic are included with the panel and available for download.

What's Included

LE-6003 Control Panel
All necessary internal components (contactor, breakers, beacon, buzzer, etc.)

Note: Floats switches are sold separately!

Why Choose the Legacy Control Essential Series?

Legacy Controls is a Florida-based manufacturer specializing in premium electrical control panels and circuit protection solutions for the wastewater, septic, and light industrial markets. Headquartered in Mims, FL, they design and produce UL-listed systems engineered for consistent, long-term performance in the harshest field conditions. Installers and service professionals appreciate this panel for its straightforward design, high-quality components, and proven reliability. It avoids unnecessary complexity while delivering everything needed for safe, code-compliant pump station control.
