Simplex Pump Station Control Panels

SEWAGE AND EFFLUENT PUMP CONTROL PANELS

Simplex Control Panels are designed to control a single submersible pump application. These panels work great with most any effluent or sewage pumping station.

ADVANTAGES OF USING A CONTROL PANEL

A Simplex Control Panel gives you many options that you cannot achieve on a direct wire installation. The first and probably most important is it puts your high water alarm and submersible pump on separate circuits. This means if the submersible pump fails and blows the breaker, your high water alarm is still functional. Secondly, our simplex control panels allow you to use multiple floats to operate the submersible pump. The panel is designed to have an “OFF” float and an “ON” float for the pump. This gives you a lot more flexibility in setting your pumping range. The next big advantage of a simplex panel is it gives you the option to manually bypass the floats and test the pump. This makes for easy troubleshooting, and also the ability to manually kick the pump on if ever necessary.

CHOOSING THE BEST CONTROL PANEL

We offer simplex control panels in a variety of different options. The first thing that will narrow down your search are the electrical specifications necessary to run the submersible pump. We have single phase panels that operate 120VAC pumps, 230VAC pumps, and panels that are dual voltage and will run either. We have three phase panels for 230VAC and 460VAC submersible pumps.

BEST 120VAC, SINGLE PHASE SIMPLEX PANELS

These simplex control panel are designed to operate lift stations with a single 120V submersible pump up to 15 or 20 FLA depending on the panel model:

• Legacy Controls LE-4003 Simplex Control Panel
• SPI SSC12B Simplex Control Panel
• Alderon APS Simplex Control Panel
• Alderon Pump Guard 120V Economy Simplex Control Panel

BEST 230VAC, SINGLE PHASE SIMPLEX PANELS

These simplex control panel are designed to operate lift stations with a single 230V submersible pump up to 15 or 20 FLA depending on the panel model:

• Legacy Controls LE-4003 Simplex Control Panel
• SPI SSC12B Simplex Control Panel
• Alderon APS Simplex Control Panel

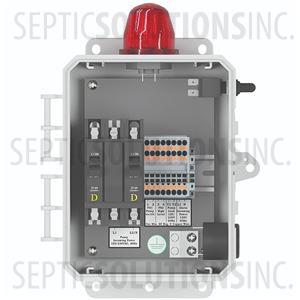

• Alderon Pump Guard 230V Economy Simplex Control Panel

SIMPLEX CONTROL PANEL FEATURES

Simplex control panels are essential for managing single-pump septic systems, offering automation, monitoring, and safety features to prevent overflows and ensure efficient operation. Key benefits include:

• Dual Circuit Protection: Separate pump and alarm circuits ensure the high water alarm remains active even if the pump circuit fails, preventing unnoticed backups.
• High Water Alarm: Externally mounted buzzers (85–90 dB) and 360-degree red alarm lights provide immediate alerts for high water levels or pump issues.
• Durable Design: Weatherproof NEMA 4X fiberglass enclosures resist corrosion, UV exposure, and harsh weather, suitable for indoor or outdoor installation.
• User-Friendly Features: External Run/Test/Mute switches simplify alarm testing and maintenance, while optional timers allow precise pump scheduling.
• UL 508A Listed: Meets rigorous safety and performance standards for reliable, compliant operation.
• Versatile Compatibility: Supports 120V or 120/230V submersible pumps (0–20 FLA) and are compatible with most submersible pump brands.
