Aerobic Septic System Control Panels
CONTROL PANELS FOR AEROBIC SYSTEMS
BIO-A DOUBLE LIGHT CONTROL PANEL
The BIO-A-AV double light control panel works best on aerobic systems that include a submersible pump and a spray irrigation or sprinkler system. This panel includes three breakers for the alarm circuit, air pump circuit, and submersible pump circuit. It includes separate alarms for both high water and air pump failure. The high water alarm operates from a float switch in the tank, while the air pump failure alarm uses a pressure switch connected to the pump via a 1/8’’ airline. This panel also includes a timer which allows you to control what segments of the day you wish to have the submersible pump come on (as little as 15 minute intervals).

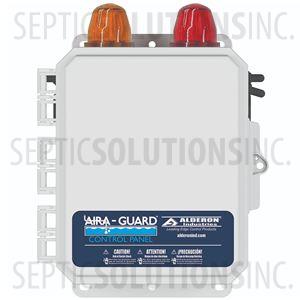

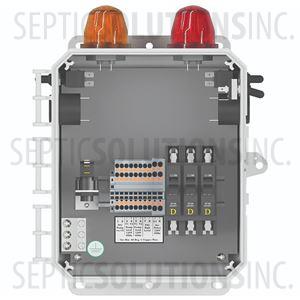

BIO-B DOUBLE LIGHT CONTROL PANEL
The BIO-B double light control panel is identical to the BIO-A panel listed above, with one exception. The BIO-B does not have a timer to operate the submersible pump. This means the pump will come on when the tank is full, or on demand as some will call it. All of the other functions remain the same.

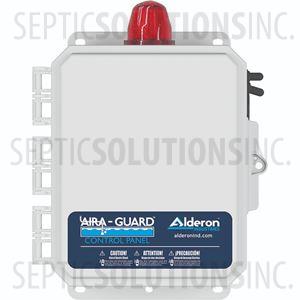

BIO-C SINGLE LIGHT CONTROL PANEL
The BIO-C single light control panel is also very similar to the BIO-A. However, the BIO-C panel does not have a pressure switch, which means it will not give you an alarm for air pump failure. The BIO-C has a high water alarm only, however it will still supply power to an air pump. This panel includes a timer for the submersible pump.

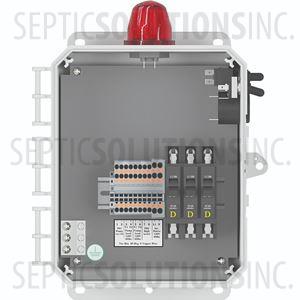

BIO-D SINGLE LIGHT CONTROL PANEL
The BIO-D single light control panel is a hybrid of the BIO-B and the BIO-C. The BIO-D panel does not have a pressure switch to signal air pump failure, and it also does not have a timer for the submersible pump. This panel will power both the air pump and submersible pump, and give you an audible and visual alarm for high water.
BIO AEROBIC TIME DOSING CONTROL PANEL
The BIO Aerobic Time Dosing control panel is designed for use on aerobic systems that have a submersible pump using a timed dose application. The most common use for this panel is on underground drip irrigation systems. The control panel includes a circuit for the air pump, a circuit for the submersible pump, and a control circuit. The BIO Aerobic Time Dosing panel includes a pressure sensor and alarm for air pump failure, and a high water alarm for submersible pump failure. It also includes the Omron Repeat Cycle timer to control the time dosing functions of the submersible pump.
SHAFT AERATOR CONTROL PANELS
Our RWT series control panels are designed to work with shaft style aerators on Jet and Norweco Singulair Aeration Systems. The include an alarm for aerator failure and a high water alarm. The RWT-1L-NPC is for a system with an aerator and no submersible pump. The RWT-1L is for a system with an aerator and a submersible pump.
