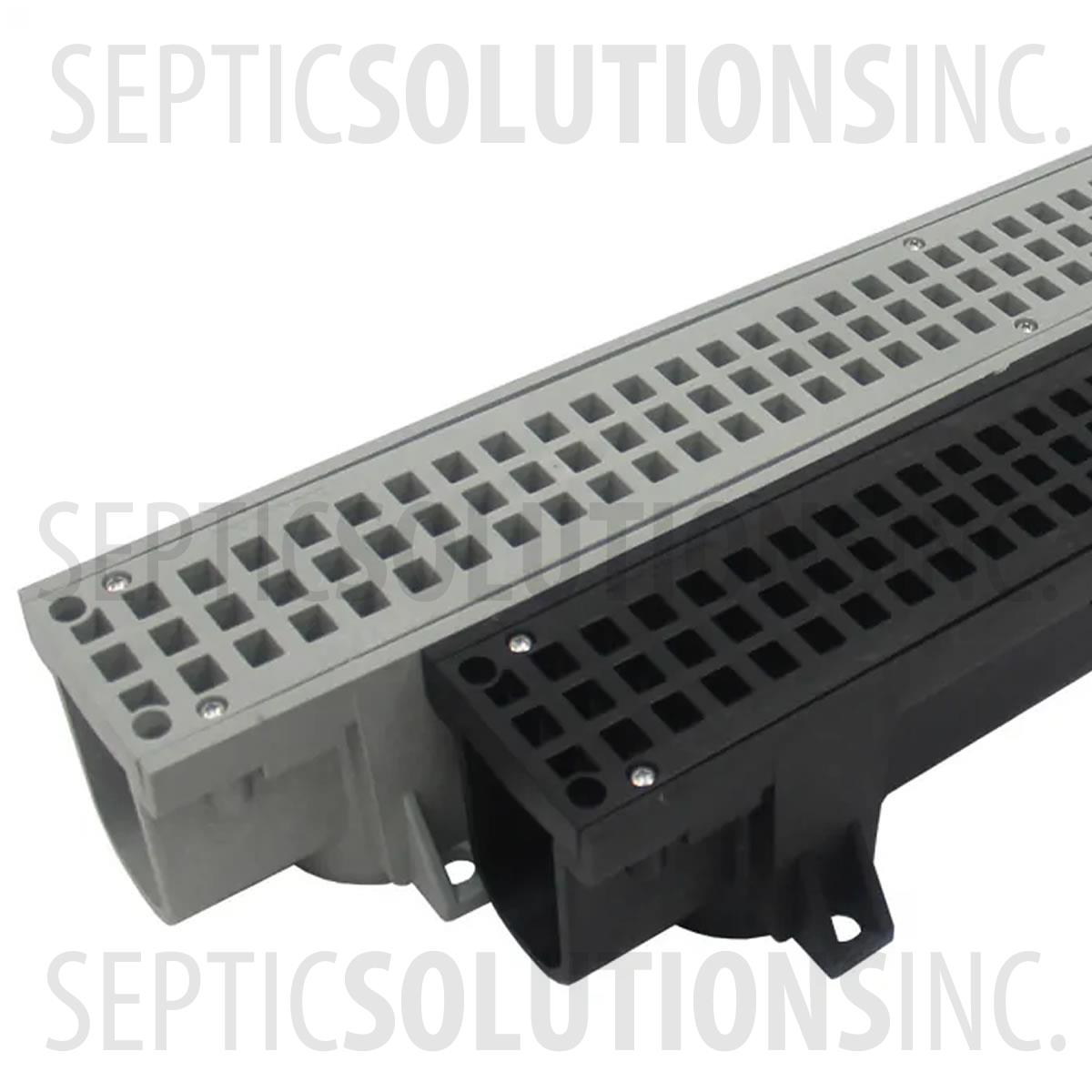

Polylok Skinny Trench/Channel Drain - 4 ft Long x 3.5'' Wide Section (GREY)

Print
The Polylok Skinny Heavy Duty Trench/Channel Drain offers the flexibility of the standard heavy duty trench drain in a slim, compact design. It offers a modular design with interlocking components including 90 degree corners and Tees. Each section is 4' in length by a slim 3.5'' width and comes with a reversible ADA compliant grate that can be either flat, or allow a 3/16'' convex surface.
Made In USA

In Stock

$89.00MSRP: $99.00

Retail Volume Pricing

Quantity BreaksEa. Price
1 - 3$89.00 ea.
4 - 7$79.00 ea.
8 +$69.00 ea.

Item #:PL-90861-G

Manufacturer: Polylok

SKINNY TRENCH DRAIN SPECIFICATIONS

  • Model: PL-90861-G (Grey)
  • 4 ft Sections x 3.5 inches wide
  • Can be cut every 12'' to reduce length (pre-marked from the factory)
  • Grates are ADA compliant
  • Grates are reversible with a flat side and a side with a 3/16'' convex
  • Grates are fastened using provided #8 x 1-1/4'' stainless steel screws
  • H-20 Wheel Load rating when cast in reinforced concrete
  • Traffic speed not to exceed 20 mph. Not recommended for forklift traffic.
  • Open and Closed End Caps available
  • 90 Degree Elbows and Tees available
  • Each segment has 8 anchor positions to allow rebar to be installed to prevent floating
  • 2x4's can easily be fastened to the base to aid in leveling and anchoring

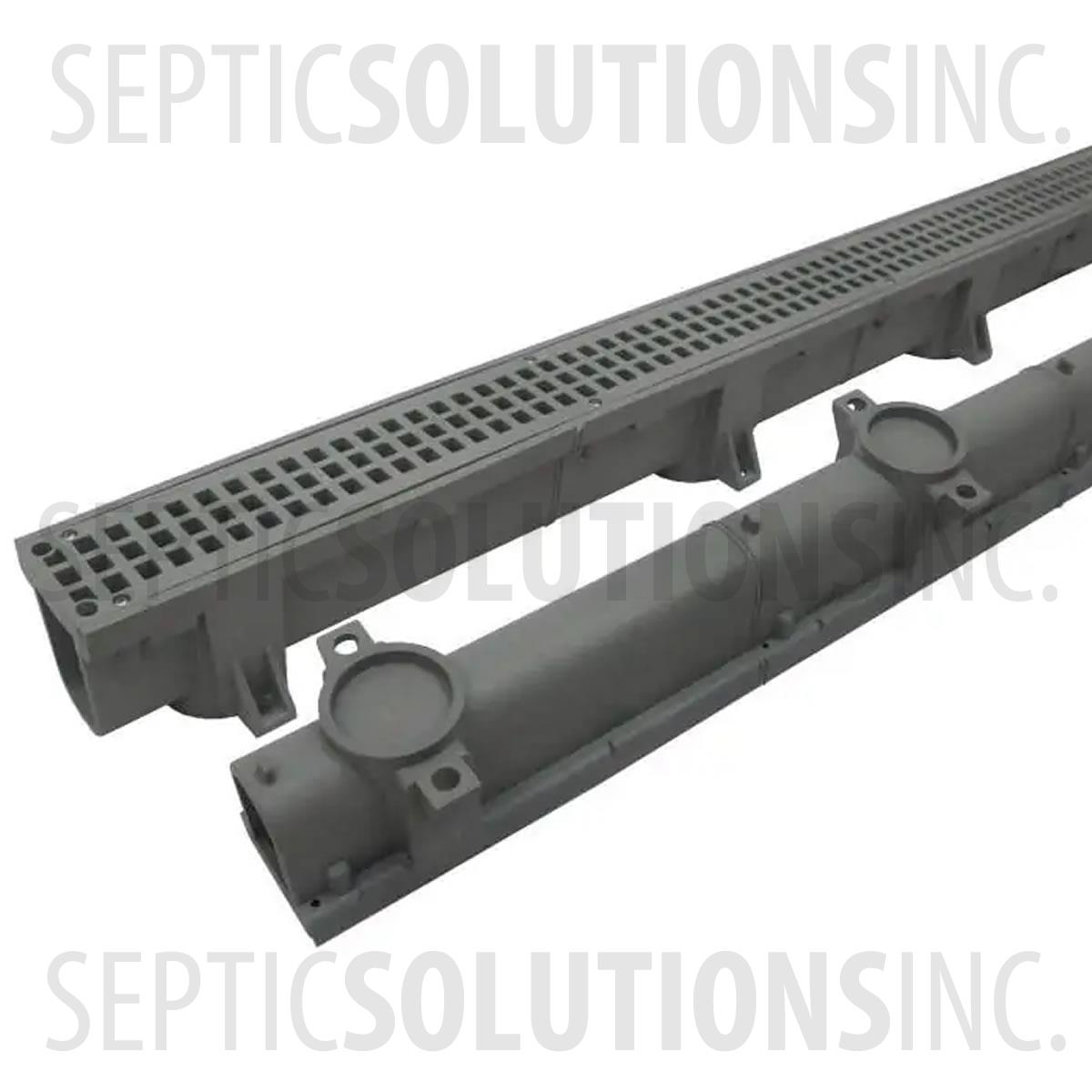

  • Each segment has four drainage ports to enable 3'' or 4'' SCH 40 or 4'' SDR35 connections

4' Skinny Trench Drain (Grey) Downloadable Documents

FileName
PL-90861-G_Dimensional-DrawingViewDownload
