Liberty 2448-Series Simplex Sewage Grinder Pump Station
Print50 MAX GPM, 110 FT MAX HEAD, 1-1/4" DISCHARGE
For residential and commercial applications, the 2448LSG is a complete factory assembled simplex grinder package featuring the LSG200-Series 2 HP Omnivore® grinder pump. All internal brackets, floats, guide-rail base and discharge piping is pre-installed at the factory saving hours of labor at the job site.
For residential and commercial applications, the 2448LSG is a complete factory assembled simplex grinder package featuring the LSG200-Series 2 hp Omnivore® grinder pump. All internal brackets, floats, guide-rail base and discharge piping is pre-installed at the factory saving hours of labor at the job site. - See more at: http://www.libertypumps.com/Product/2448-Series#sthash.0Oi8bu8N.dpuf
Call For Availability
$3450.00MSRP: $4900.00
Item #:2448LSG202
Manufacturer: Liberty Pumps
CALL 1-877-925-5132 TO CHECK ON ITEM AVAILABILITY

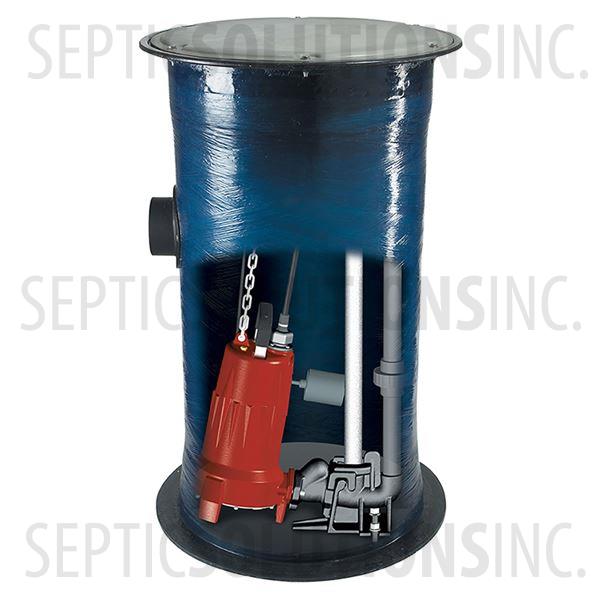

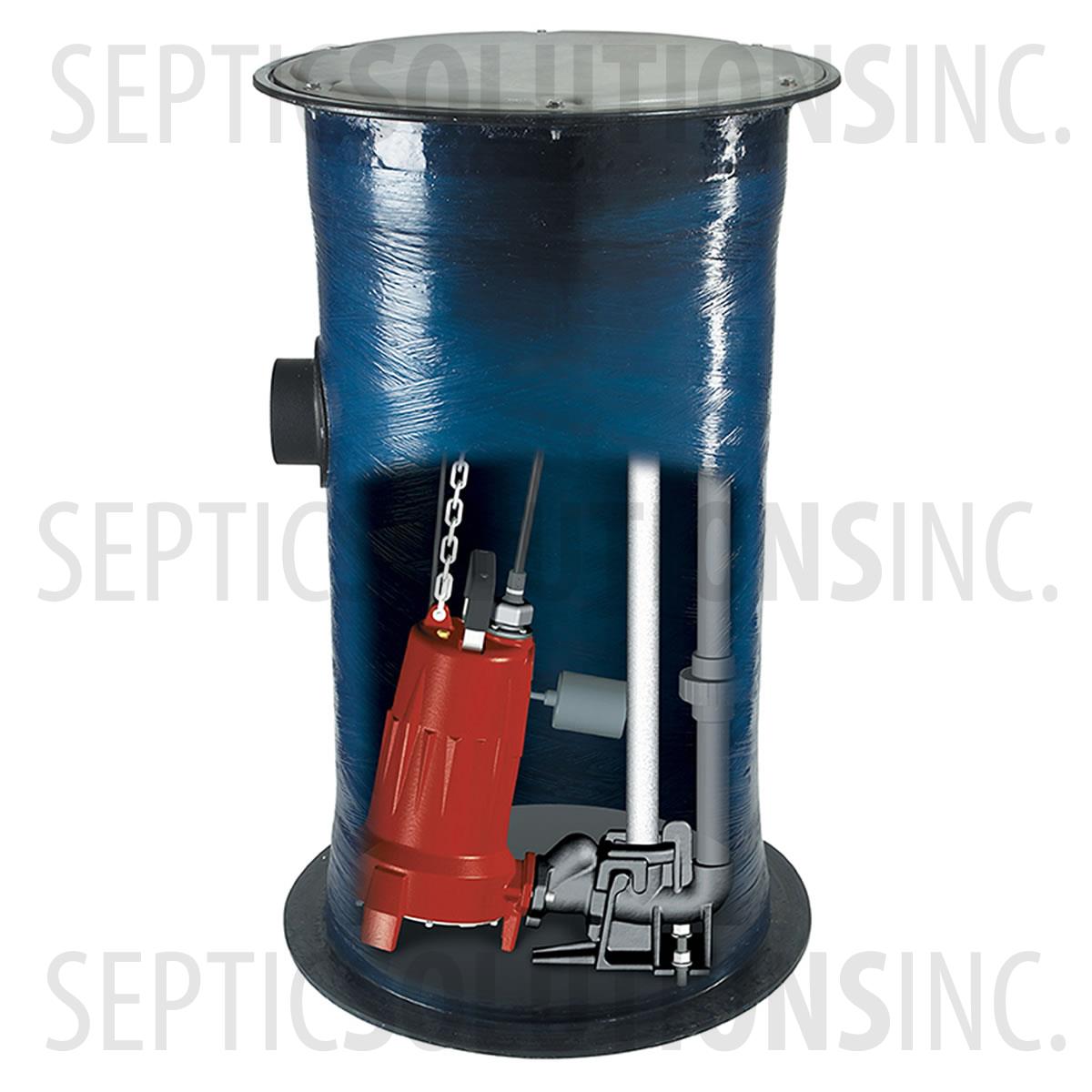

Liberty 2448 Simplex Pump Station
Omnivore LSGX-200 Grinder Pump Specifications
- Model LSGX202A
- 2.0 HP, 230VAC, 15.0A, 60 Hz
- 25 GPM @ 100ft of Head Pressure
- Shut Off: 185ft, Max GPM: 39
- 1-1/4'' NPT Vertical Female Discharge
- Heavy Duty Cast Iron Construction
- Patented V-Slice Cutter Technology
- Shreds Difficult Solids Such As Feminine Products, Wipes, Rags, Etc.
- Twin Stainless Steel Impellers Driving Flow To Maximum Heads of 180 feet
- Includes Quick-Disconnect 25' Power Cord with Plug
- Includes 25' Wide Angle Mechanical Float Switch with Piggyback Plug
- Internal Capacitors - No Control Panel Required!
- Dimensions: 9.5'' L x 9.5'' W x 19.5'' T
- Three Year Warranty
24x48 Fiberglass Basin Specifications
- Pre-Mounted Floats For Pump Control & Alarm
- 4'' Fiberglass Hub with 4'' Rubber Pipe Seal
- 1-1/4'' Discharge
- Pre-Assembled Galvanized Guide Rail System
- Pre-Assembled Schedule 80 PVC Discharge Piping with Ball Valve
- Integral Check Valve
- Anti-Flotation Collar
- Structural Foam Cover - 1000lb Load Rating
- NEMA 4X Junction Box For Electrical Connections
- Stainless Steel Lift Chain For Pump
Control Panel Sold Separately.
