Alderon SHD Economy Simplex Control Panel (120/230V, 0-15FLA)

Print

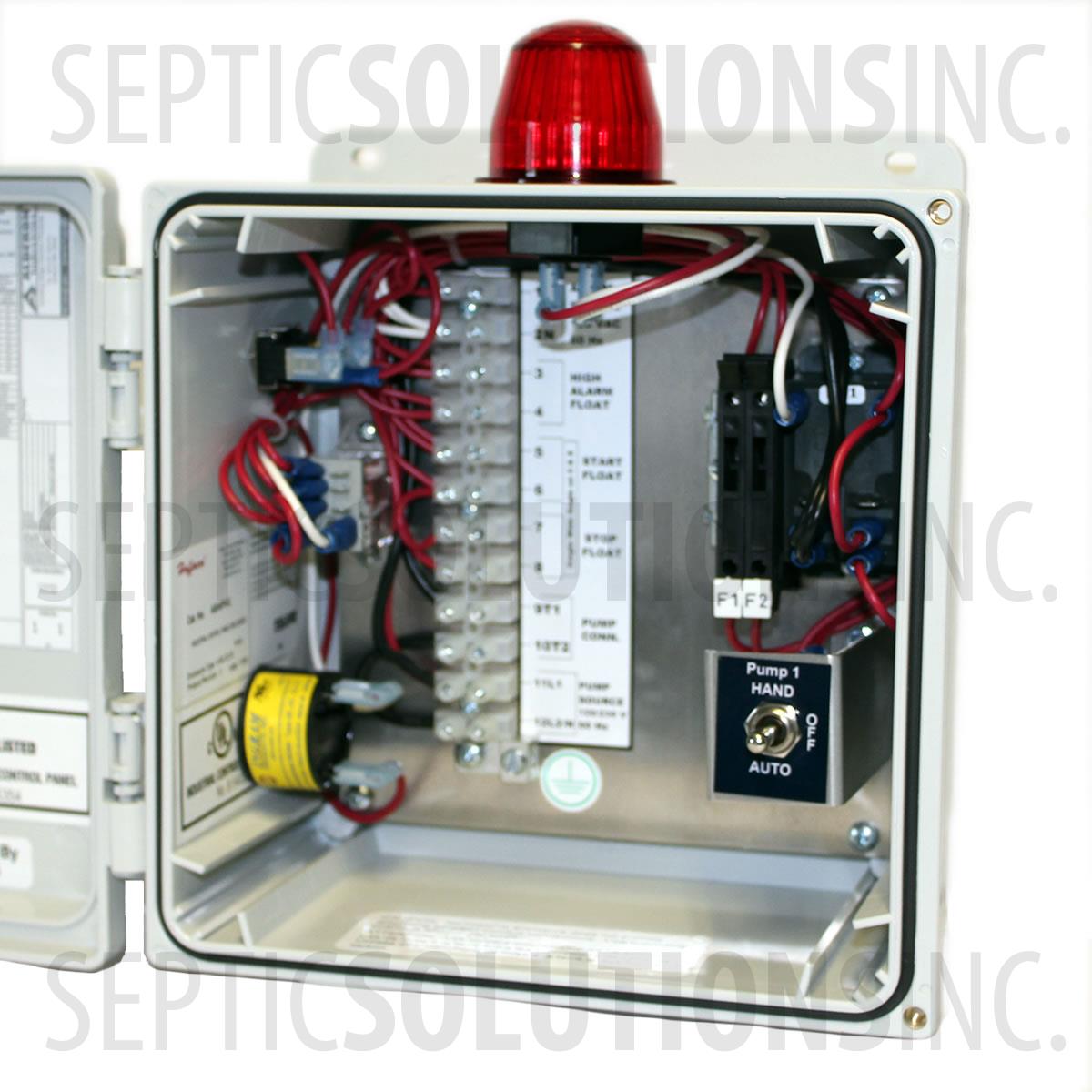

The Alderon Economy SHD control panel is used for simplex pump applications. The control panel includes (3) mechanical float switches for "OFF", "ON", and "ALARM" functions and includes a Hand/Off/Auto switch to manually test the submersible pump. This control panel does not include circuit breakers and requires two incoming power inputs for the submersible pump and for the control circuit.

Made In USANEMA 4XUL Listed

Discontinued

$275.00MSRP: $365.00

Item #:SHD230

Manufacturer: Alderon

SEPTIC SOLUTIONS HAS DISCONTINUED
THIS ITEM FROM OUR INVENTORY

SHD Simplex Control Panel Specifications

  • 120VAC, Single Phase, 0-15 FLA
  • (3) 20ft Mechanical Float Switches
  • Power Relay acts as Motor Contactor (100,000 cycle rating)
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle

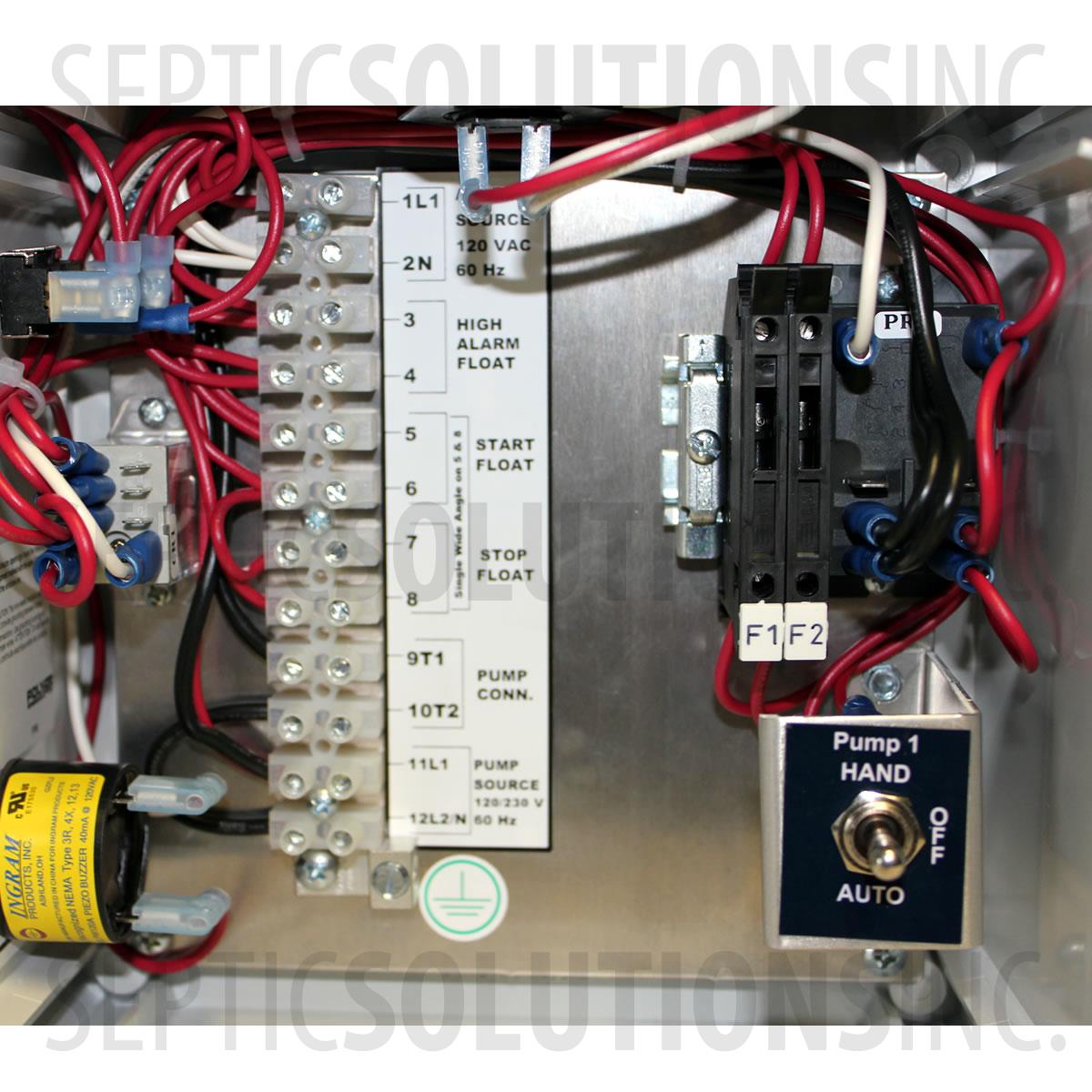

  • Field wiring terminal strips
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • NEMA 4X Enclosure, UL 508A Listed
  • Dimensions: 10'' W x 10'' H x 6'' D
  • Three Year Warranty

Alderon SHD Economy Simplex Control Panel Downloadable Documents

FileName
SHD230_WiringViewDownload
