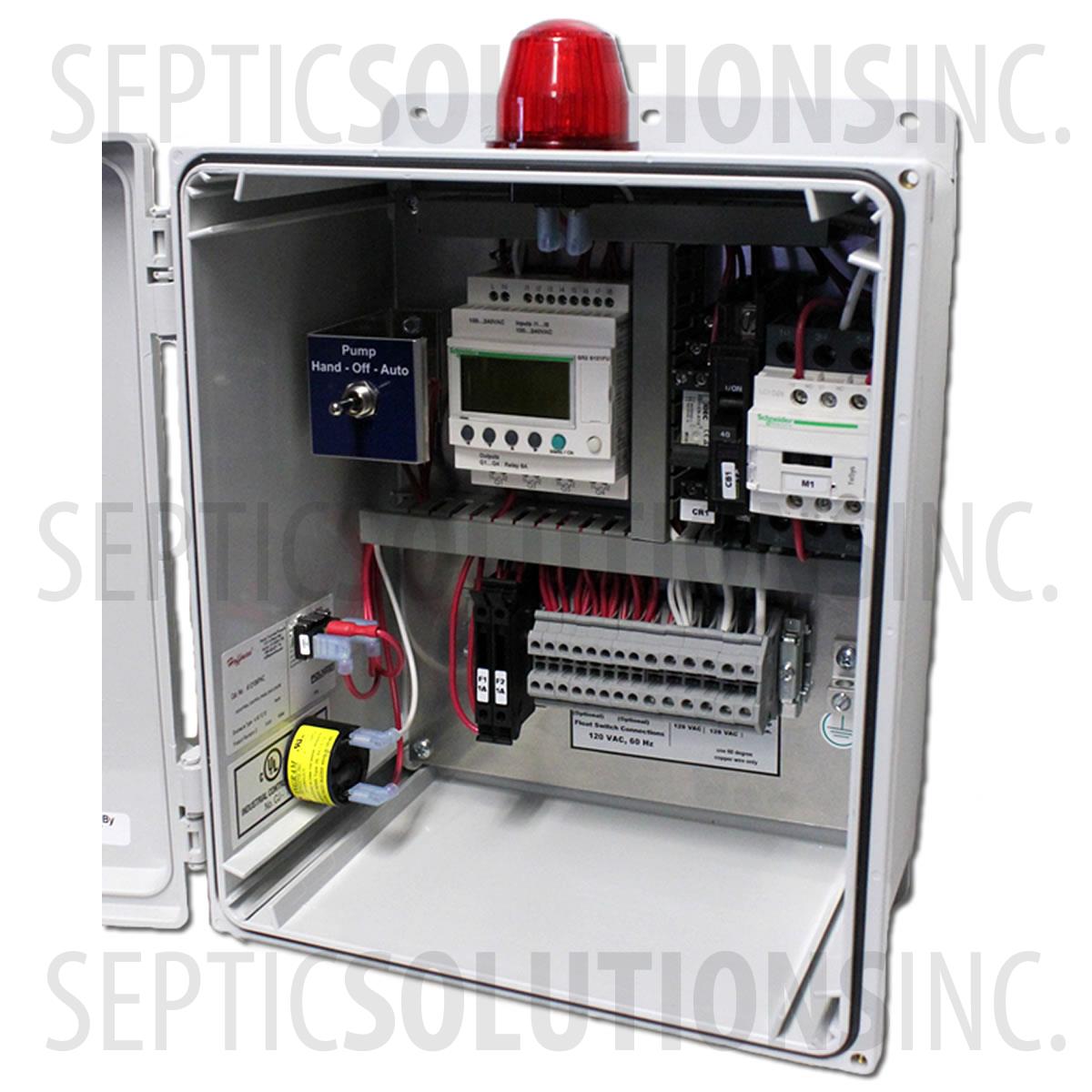

The Alderon Smart™ Panel is designed to control and monitor a single submersible pump. Includes pump circuitry, high water alarm, and 2 mechanical float switches for Timer Enable and Alarm controls. A progammable Smart controller monitors the time dosing function.

Made In USANEMA 4XUL Listed

Out of Stock

$819.00MSRP: $1005.00

Item #:1101

Manufacturer: Alderon

THIS PRODUCT IS CURRENTLY OUT OF STOCK
PLEASE CALL (877)-925-5132 FOR EXPECTED AVAILABILITY!

  • 120VAC, Single Phase, 0-20 FLA
  • (2) Mechanical Floats w/ 15ft Cords - Timer Enable, High Water Alarm
  • Programmable Smart Controller For Time Dosing Function
  • Programmable Timed Doses, Programmable Timer Override
  • Elapsed Time Meter, Event Cycle Counter in Smart Controller
  • 360 degree red alarm light, High decible alarm buzzer (100 dB)
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • IEC contactors (2,000,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Dimensions: 11.50'' W x 14.00'' T x 6.50'' D
  • NEMA 4X Rated Enclosure, UL 508A Listed
  • Three Year Warranty
  • NEMA 4X Enclosure for Outdoor Installations
  • Used to control a pump station with a single submersible pump
  • Time Dosing Controller allows for scheduled dosing and flow equalization
  • Programmable Smart Controller includes Elapsed Time Meter and Cycle Counter
  • Programmable Smart Controller keeps record of Time Overrides and High Water Alarms

Time Dosing control panels are used to control the amount of water a submersible pump can push to the secondary system over a period of time. The Simplex and Duplex control panels listed above are considered On Demand or Demand Dose systems. This means the pump will run when it needs to based upon the float switch in the tank. Time Dosing or Timed Dose panels use a Repeat Cycle timer in which an ON cycle and an OFF cycle is set for the pump and the timer follows that cycle repeatedly.

The reason for time dosing is to equalize the flow of water to the secondary system. In certain applications large amounts of water can be used in a short period of time. This is very hard on a septic system. With a Time Dosing control panel, you can equalize that flow by spreading it out throughout a longer period of time. The Repeat Cycle Timer will dose the system by running the pump short periods of time throughout the day versus an On Demand system (like the Simplex and Duplex Panels Above) that will pump a large amount of water all at once.

Our Time Dosing Control Panels are available in 120V and 230V. We have them for both Simplex and Duplex applications.
