Alderon Smart IQ Duplex Time Dosing Control Panel (120/230V, 0-15FLA)

Print

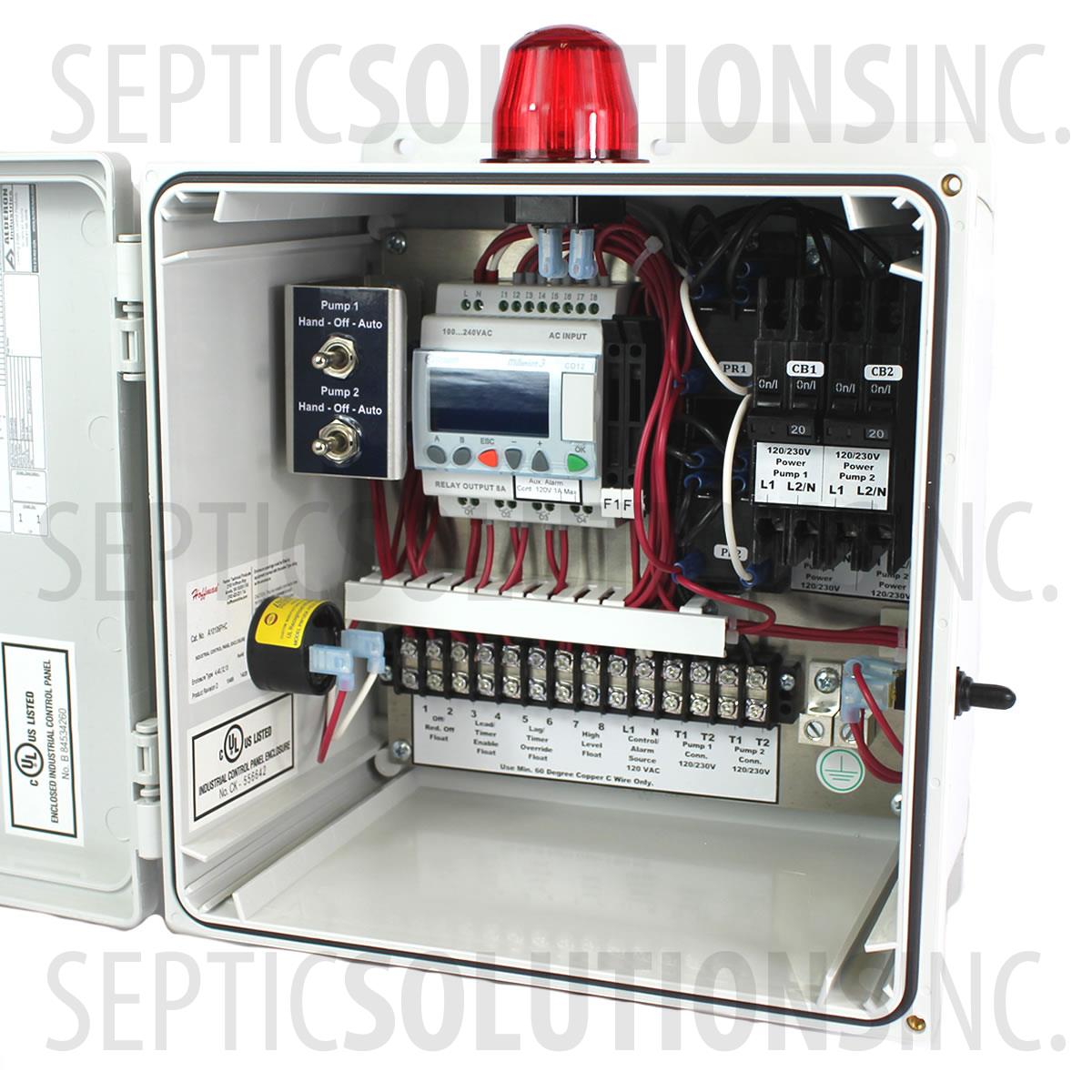

The Alderon Smart IQ panel is designed to control and monitor a time dosed duplex submersible pump system. Includes pump circuitry, high water alarm, and 4 mechanical float switches for Redundant Off, Lead On / Timer Enable, Lag On / Timer Override, and Alarm controls. A progammable Smart controller monitors the time dosing function.

THIS ITEM HAS BEEN REPLACED BY THE FLEX POWER PAK DUPLEX TIME DOSING CONTROL PANEL.

Made In USANEMA 4XUL Listed

Discontinued

$1299.00MSRP: $1499.00

Item #:D230SMARTIQ

Manufacturer: Alderon

SEPTIC SOLUTIONS HAS DISCONTINUED
THIS ITEM FROM OUR INVENTORY

D230 SMART IQ SPECIFICATIONS

  • 120/230VAC, Single Phase, 0-15 FLA
  • (4) Mechanical Floats w/ 20ft Cords - Redundant OFF, Lead ON, Lag ON, ALARM
  • Programmable Smart Controller For Time Dosing Function
  • Programmable Timed Doses, Programmable Timer Override
  • Elapsed Time Meter, Event Cycle Counter in Smart Controller
  • 360 degree red alarm light, High decible alarm buzzer (100 dB)
  • Pump Hand/Off/Auto heavy duty toggle
  • Pump 1 and Pump 2 Selector Switch
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Power Relay Instead of IEC Motor Contactor (100,000 cycle rating)
  • Motor Circuit Breakers
  • 3 Amp Control/Alarm Fuses
  • NEMA 4X Enclosure, UL 508A Listed
  • Dimensions: 12.00'' W x 13.50'' T x 6.50'' D
  • Three Year Warranty

D230 SMART IQ APPLICATIONS

  • NEMA 4X Enclosure for Outdoor Installations
  • Used to control a pump station with a two submersible pumps
  • Time Dosing Controller allows for scheduled dosing and flow equalization
  • Programmable Smart Controller includes Elapsed Time Meter and Cycle Counter
  • Programmable Smart Controller keeps record of Time Overrides and High Water Alarms

WHY USE TIME DOSING?

Time Dosing control panels are used to control the amount of water a submersible pump can push to the secondary system over a period of time. The Simplex and Duplex control panels listed above are considered On Demand or Demand Dose systems. This means the pump will run when it needs to based upon the float switch in the tank. Time Dosing or Timed Dose panels use a Repeat Cycle timer in which an ON cycle and an OFF cycle is set for the pump and the timer follows that cycle repeatedly.

The reason for time dosing is to equalize the flow of water to the secondary system. In certain applications large amounts of water can be used in a short period of time. This is very hard on a septic system. With a Time Dosing control panel, you can equalize that flow by spreading it out throughout a longer period of time. The Repeat Cycle Timer will dose the system by running the pump short periods of time throughout the day versus an On Demand system (like the Simplex and Duplex Panels Above) that will pump a large amount of water all at once.

Our Time Dosing Control Panels are available in 120V and 230V. We have them for both Simplex and Duplex applications.
