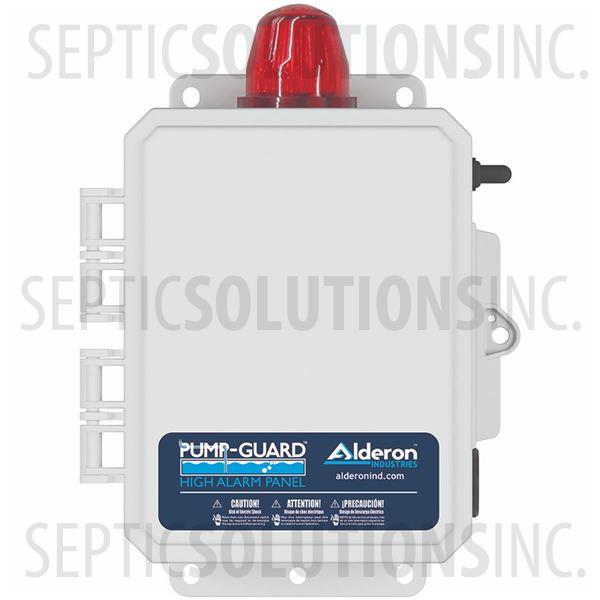

Alderon Pump Guard Economy Simplex Control Panel (230V, 0-15FLA)
PrintThe Alderon Pump Guard 230V Economy Simplex Control Panel is a rugged, USA-made control solution designed for single-pump sewage and effluent systems. Built inside a NEMA 4X UV-resistant enclosure and UL 508A listed, this panel delivers essential pump and alarm functionality without unnecessary complexity—perfect for residential septic systems, sump pits, or small lift stations.
Coming Soon!
Item #:2012100
Manufacturer: Alderon
Pump Guard 230V Simplex Panel Specifications
- 230VAC, 0-15FLA
- 20 Amp Double-Pole 230V Pump Circuit Breaker
- 10 Amp Single-Pole 120V Alarm Circuit Breaker
- High Water Alarm
- Externally Mounted High Decibel Alarm Buzzers
- 360 Degree Red High Water Alarm Light
- Externally Mounted Alarm Run/Test/Mute Switch
- Dimensions: 8.00'' x 6.00'' x 3.00''
- NEMA 4X Enclosure. UL 508A Listed
- Pump Duty Float Switch & High Level Alarm Float Switch Sold Separately
- Two Year Limited Warranty
Pump Guard 230V Simplex Panel Applications

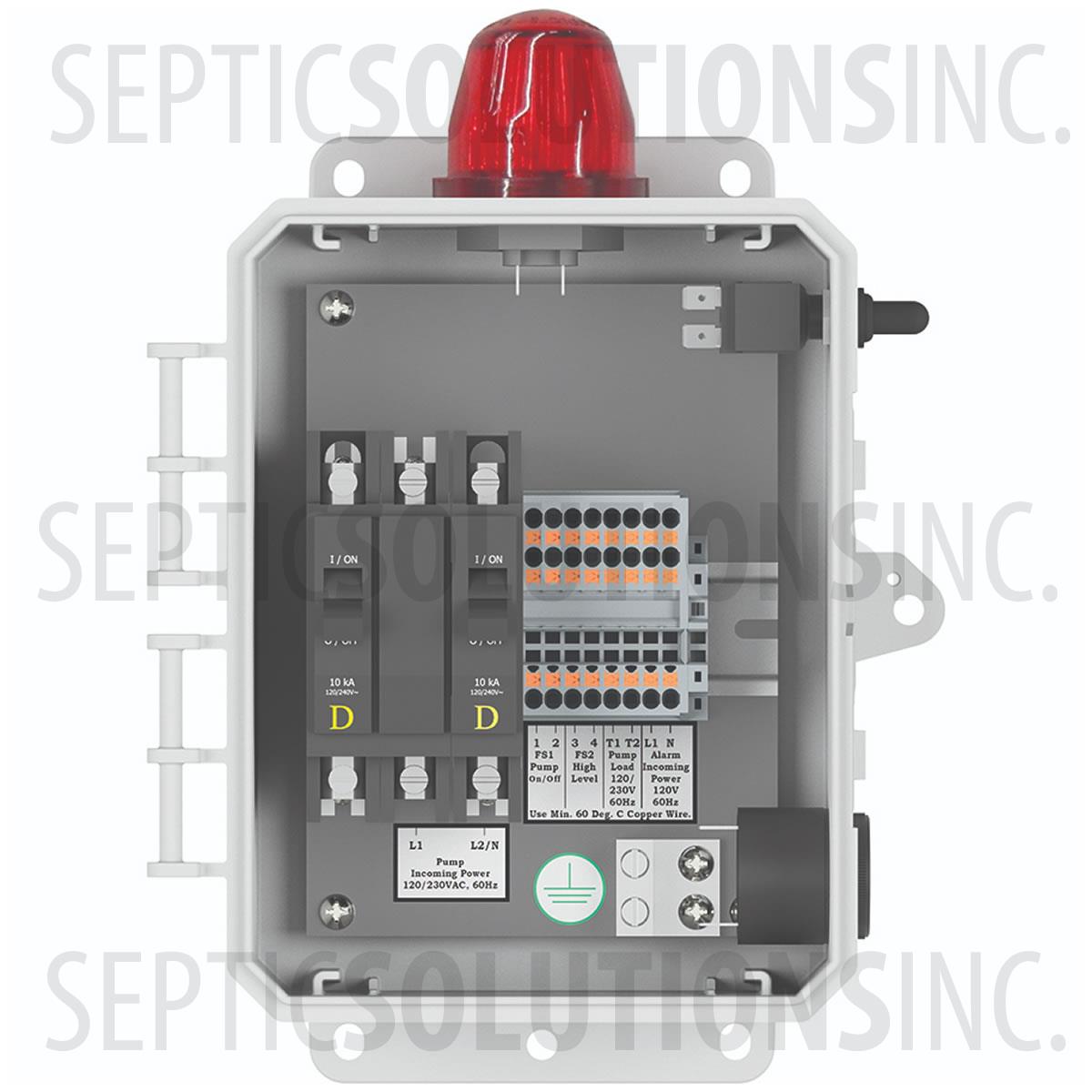

The Pump Guard Simplex Control Panel is a basic control box that contains two circuits: A 10 Amp circuit for the high level alarm functionality, and a 20 Amp double-pole 230V circuit for the submersible pump. Float switches to run the submersible pump and the high level alarm are sold separately.
How It Works
The Pump Guard creates two independent circuits:
- Pump Circuit (20A, 230V) – Automatically activates your submersible pump when the lower float switch is triggered.
- Alarm Circuit (10A, 120V) – Sounds the buzzer and flashes the red beacon if water reaches the high-level float (sold separately).
