Polylok PL-68 Effluent Filter and Baffle Combo

Print

RATED TO FILTER FLOWS UP TO 800 GPD

The Polylok PL-68 Effluent Filter System is much more than just an effluent filter. The filter housing can be used as a baffle and is designed to accept Polylok's snap in solids deflector which prevents solids from entering the filter or leaving the tank.

In Stock

$59.95MSRP: $69.00

Item #:30140-68H

Manufacturer: Polylok

Gas/Solids Deflector:

Polylok PL-68 Features

  • Rated To Filter 800 Gallons Per Day
  • Offers 68 Linear Feet of 1/16'' Filter Area
  • Gasket Seal On Filter Prevents Effluent Bypass
  • Simple To Install. Easy To Clean
  • NSF/ANSI Certified and Approved
  • Baffle Fits 3'' and 4'' Schedule 40 or SDR-35 Pipe
  • Filter Insert Fits 4'' Pipe Only
  • Optional Snap-In Gas/Solids Deflector Available
  • Red filter cartridge accepts 3/4'' PVC as an extension handle
  • Overall Length: 22''

Polylok PL-68 Applications

  • The PL-68 Effluent Filter will operate efficiently for several years under normal conditions before requiring cleaning.
  • It is recommended that the filter be cleaned every time the tank is pumped or at least every three years.

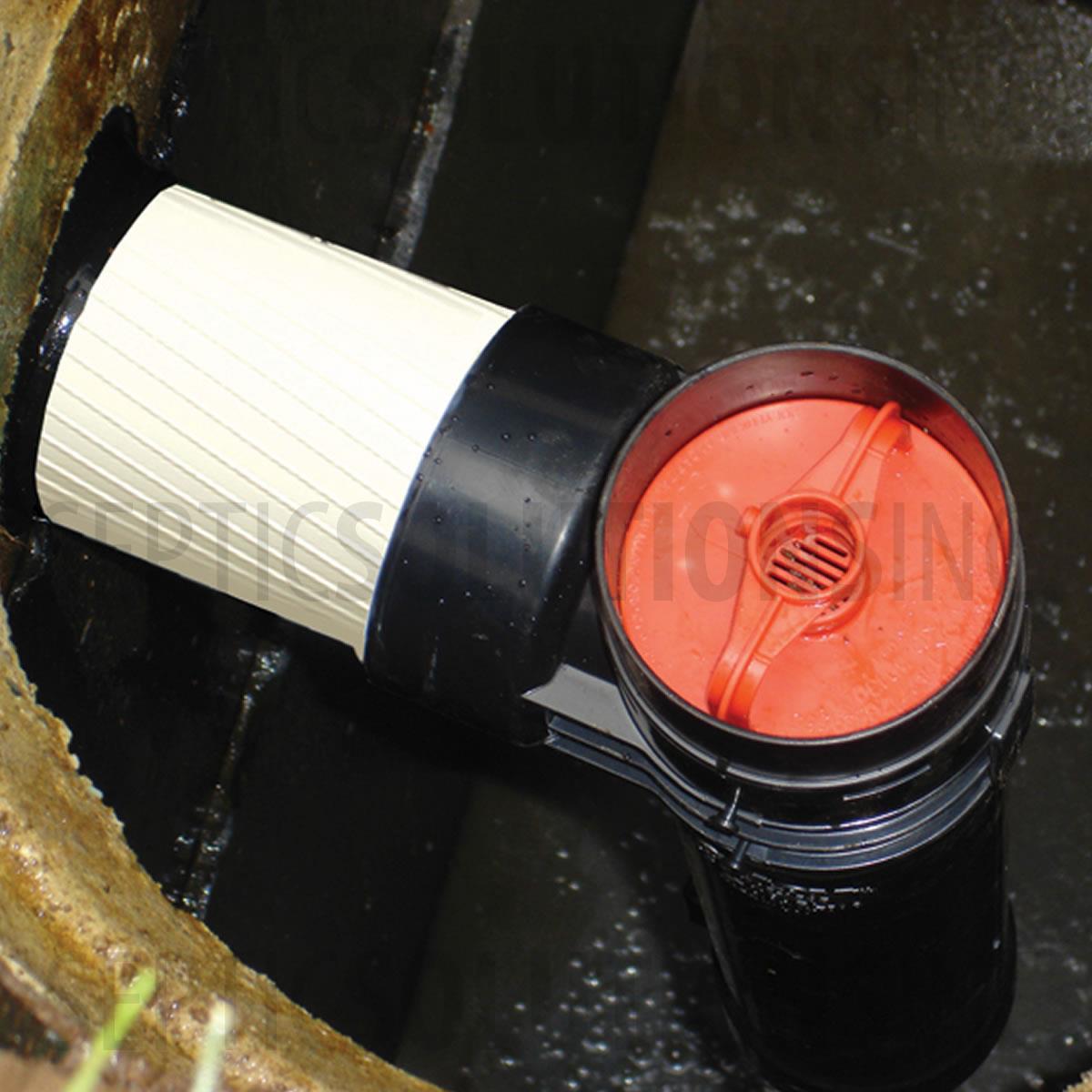

  • The PL-68 is ideal for residential waste flows up to 800 GPD. The filter easily installs in any new or existing 3'' or 4'' outlet tee.
  • An optional snap-in Gas/Solids Deflector Available

Polylok PL-68 Effluent Filter and Baffle Combo Downloadable Documents

FileName
30140-68H_Spec1ViewDownload
30140-68H_Spec2ViewDownload
