Alderon Oil Alert! Elevator Sump Water Removal System

Print

FOR ANY PUMP UP TO 15 AMPS AT 120 VAC! CODE APPROVED!

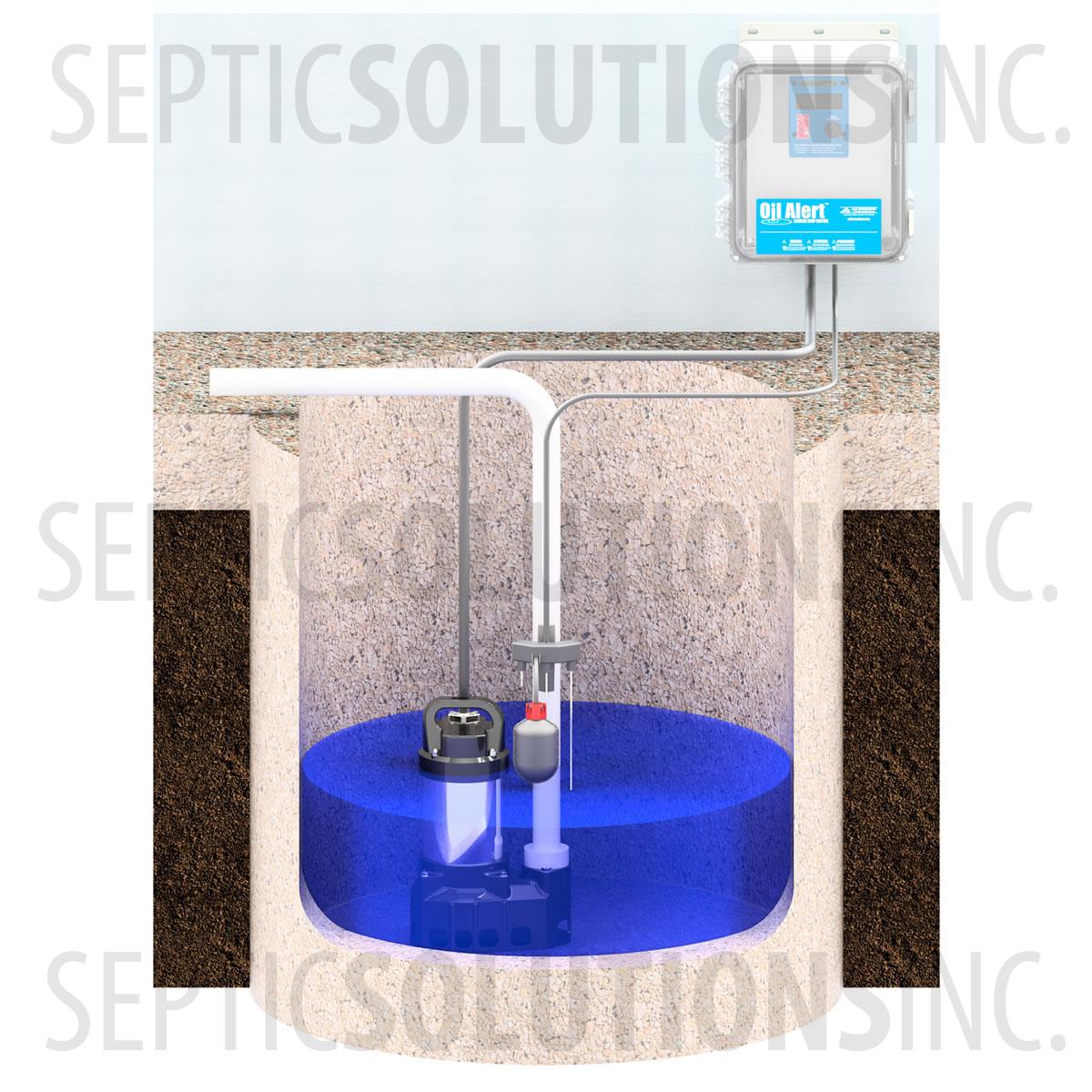

The Oil Alert™ Elevator Sump Water Removal System is used in elevator sump pits to remove water while retaining oil and other hydrocarbons. Water and oil fill the elevator sump pit. As the sump is filling, the oil will float on top of the water. This layer of oil will not be pumped from the tank. The water underneath the oil will be pumped out through the discharge pipe to the sewer or other proper disposal area. The Oil Alert™ system can be used with any brand of submersible pump.

Made In USAUL Listed

In Stock

$1359.00MSRP: $1499.00

Item #:7410

Manufacturer: Alderon

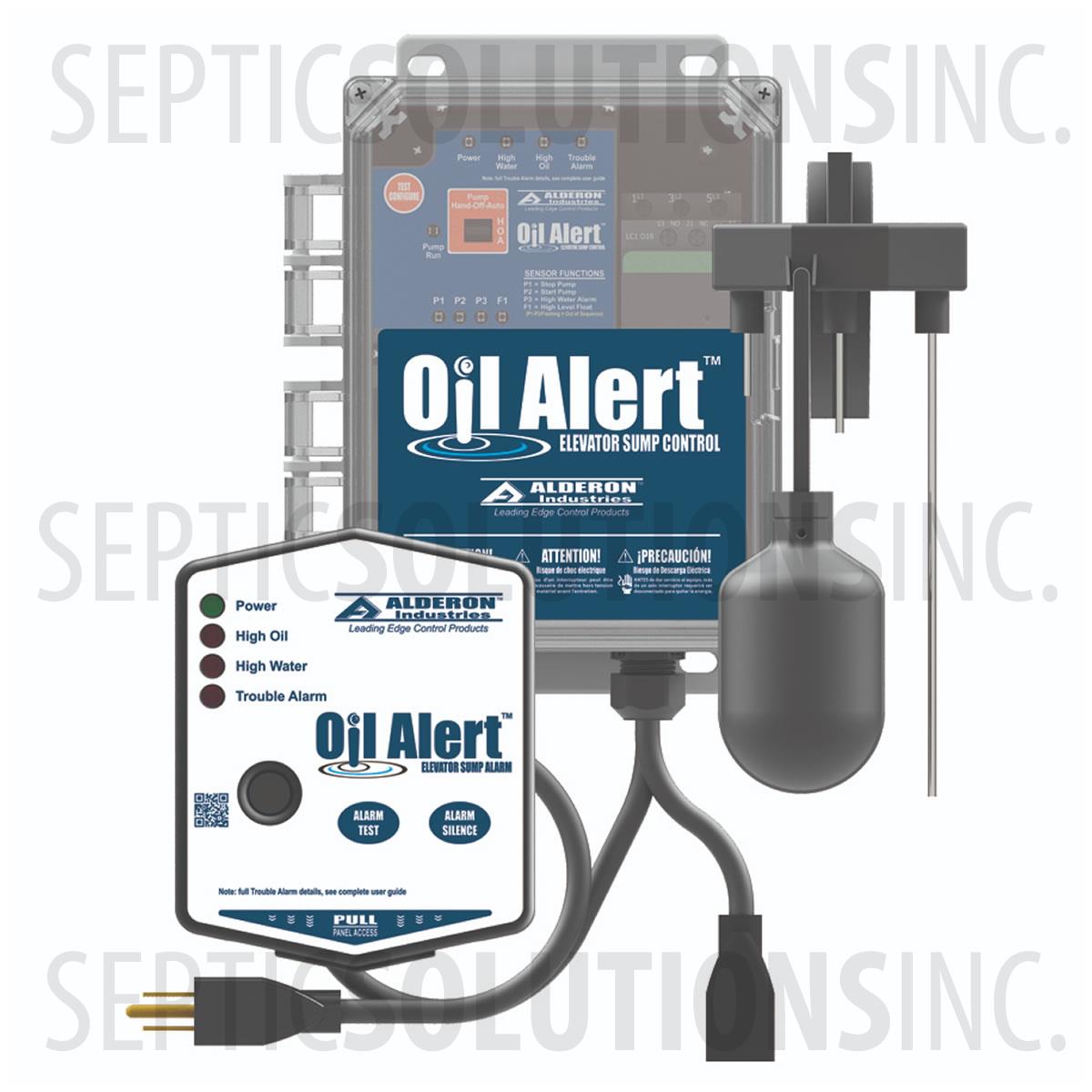

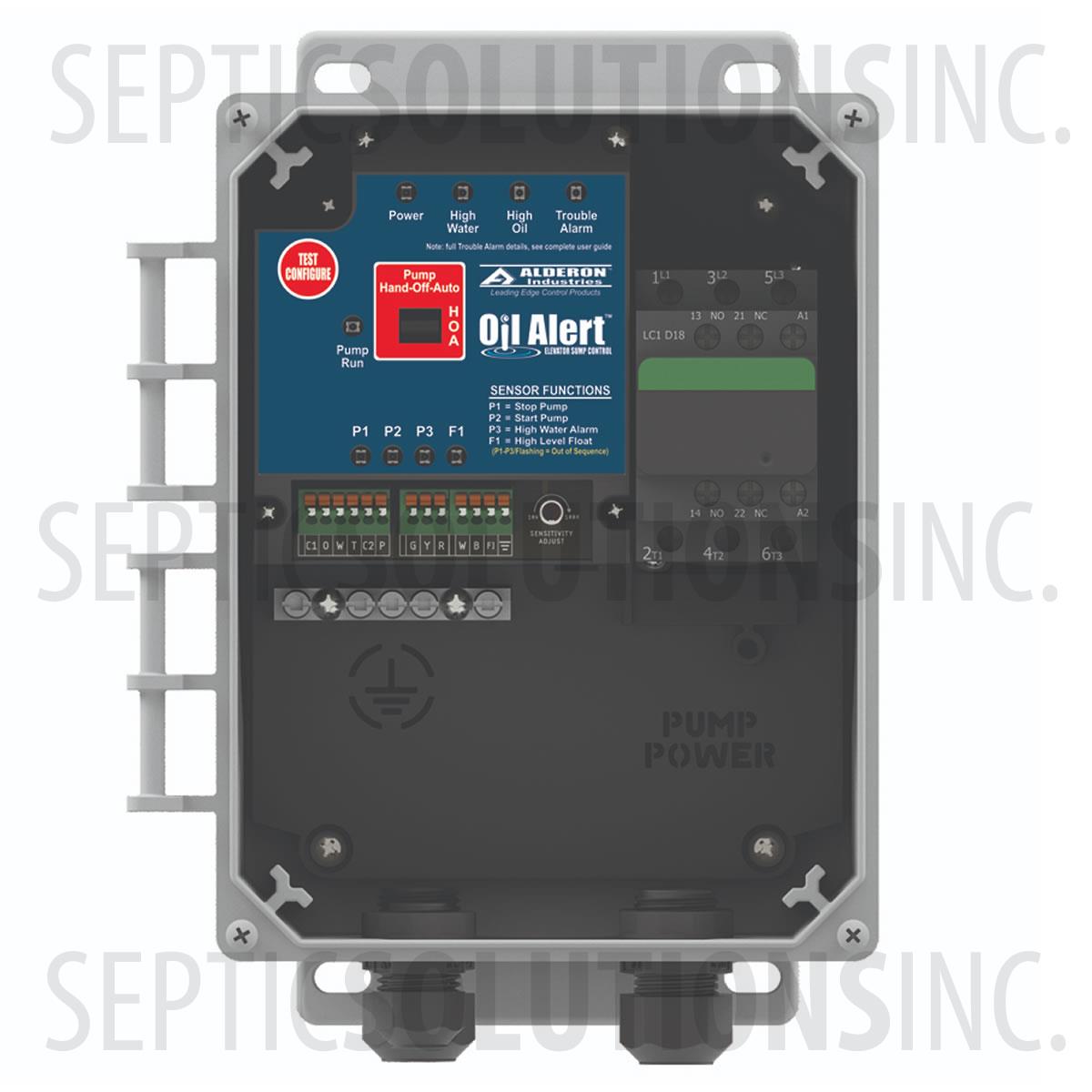

Alderon Oil Alert™ Control Features

  • 120 VAC, Single Phase, 0-15 FLA

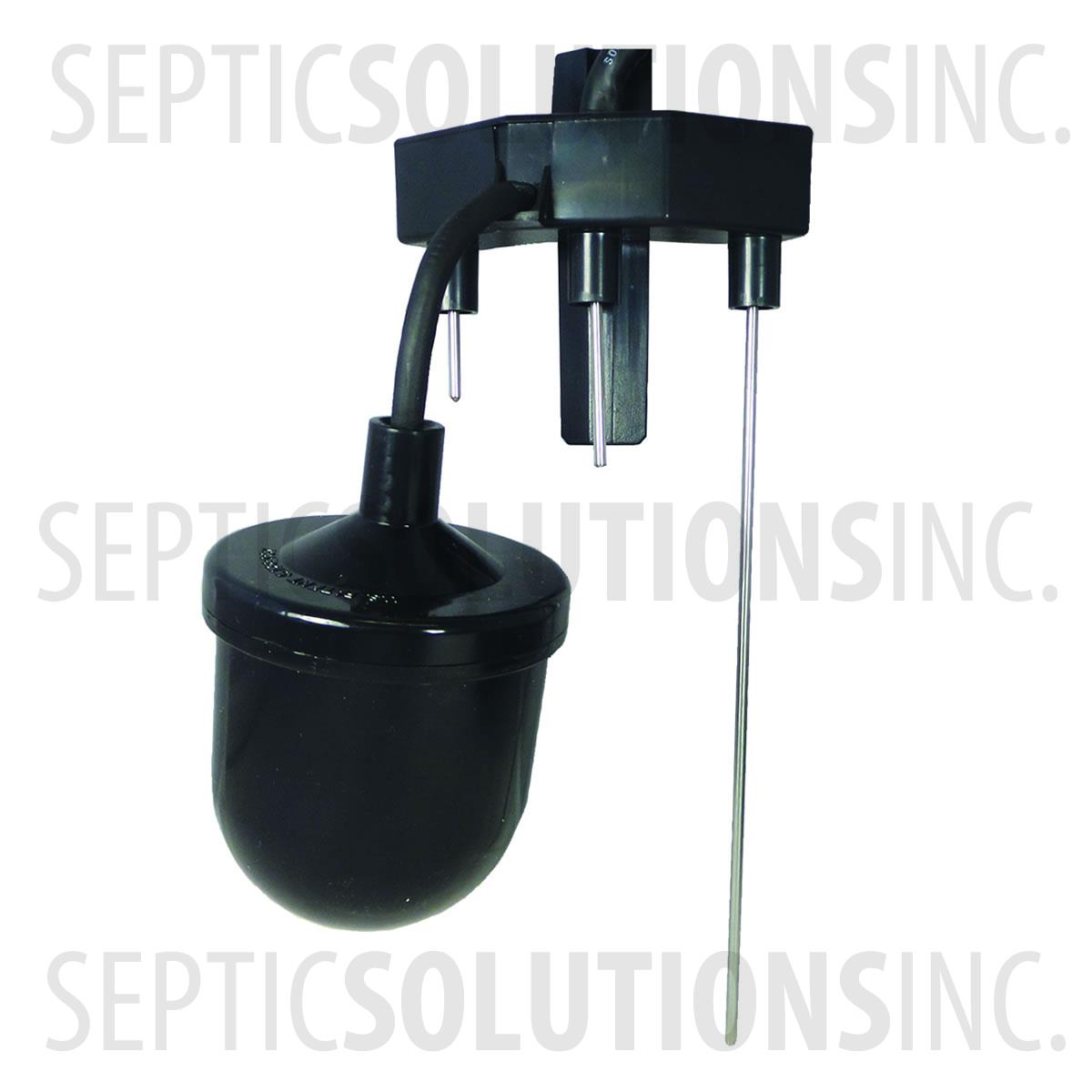

  • One Preset Level Sensor For Easy Installation
  • Operates With All Pumps Approved for Sump Pits
  • Remote Alarm Included
  • NEMA Type I Enclosure
  • ASME A17.1 COMPLIANT
  • Dimensions: 9.75'' H  x 5.02'' W x 5.25'' D

Alderon Oil Alert™ Operation

On liquid rise, level reaches pump “start” probe to start the pump. Pump will remain on until level is below “off” probe. The “off” probe senses air or oil and turns the pump off so the oil layer will not be pumped out of the tank. If the level reaches alarm probe and mechanical float, the system will differentiate between water and oil and activate the remote alarm.

Alderon Oil Alert! Elevator Sump System Downloadable Documents

FileName
7410_OilAlert_InstallationViewDownload
7410_OilAlert_SpecificationsViewDownload
