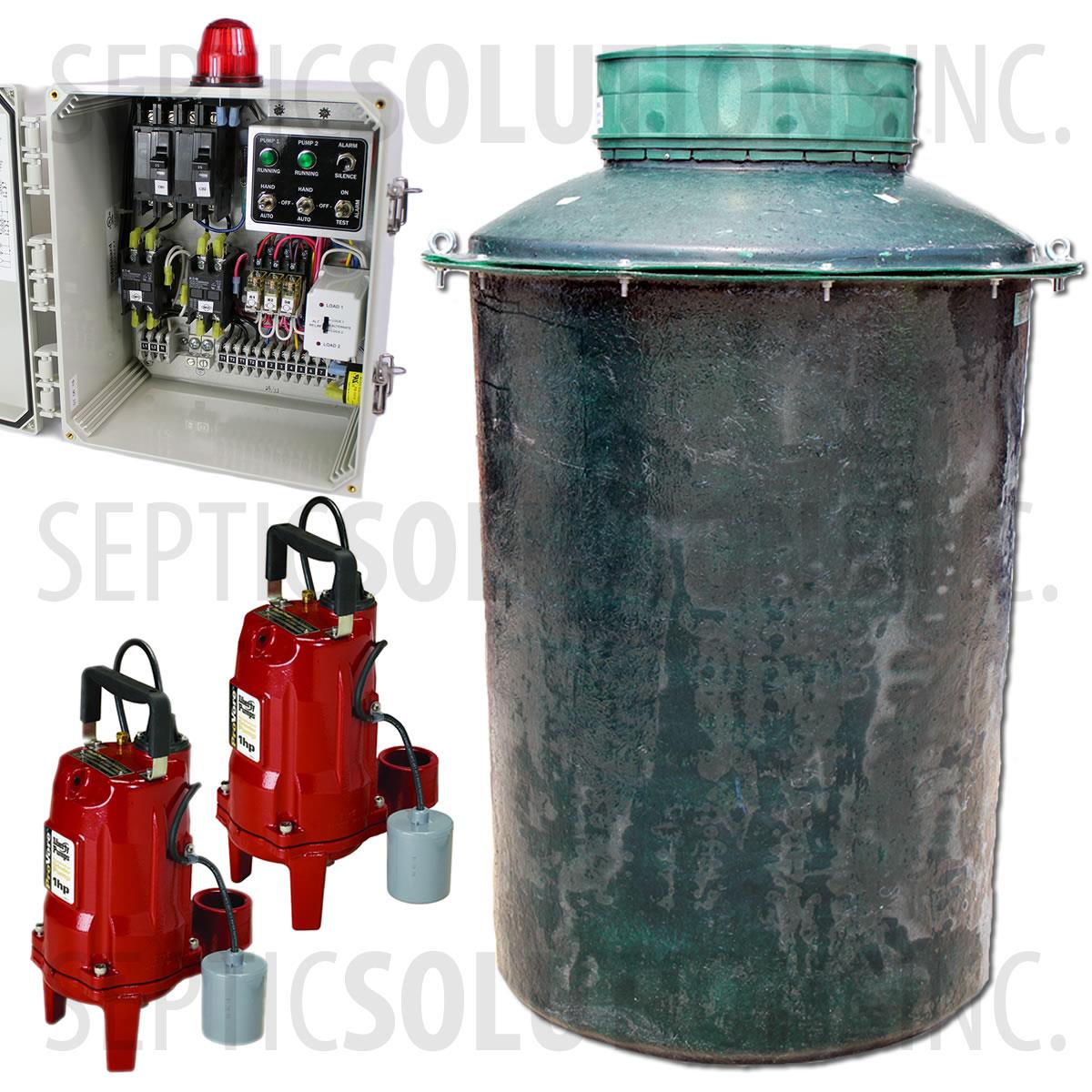

200 Gallon Duplex Fiberglass Pump Station with (2) 1.0 HP Sewage Grinder Pumps and Alternating Control Panel

Print

48" Diameter x 69" Tall Basin • Dual 1.0 HP Grinders • 50 ft Max Head • Up to 46 GPM per Pump • Pre-Assembled Duplex Grinder Lift Station

This 200-gallon duplex grinder pump station is a complete, ready-to-install solution designed for higher-demand residential or light commercial applications requiring reliable pumping of raw sewage. It features a durable fiberglass basin paired with two powerful Liberty 1.0 HP residential grinder pumps and an alternating control panel, making it ideal for homes with basements, multiple fixtures, or properties that must pump to a pressurized sewer main or force main where gravity flow is not possible. The duplex setup provides redundancy and automatic alternation for greater reliability and longer pump life.

Built To Order Within 1-2 Business Days

$6325.00MSRP: $6599.00

Item #:200FPT-PRG1DUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT. APPROXIMATE TRANSIT TIME IS 2-5 BUSINESS DAYS. PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

FEATURES & BENEFITS

  • Pre-Assembled & Ready to Install — Arrives fully assembled with dual pumps, basin, access cover, discharge piping, floats, and alternating control panel for fast installation.
  • Heavy-Duty Fiberglass Construction — 200-gallon tank (48" diameter x 69" tall) engineered for direct burial with excellent corrosion resistance and structural strength.
  • Dual Liberty 1.0 HP Grinder Pumps — Patented V-Slice cutter technology efficiently grinds tough solids (wipes, rags, feminine products, etc.) into a fine slurry for reliable transport through small-diameter piping.
  • Duplex Alternating Operation — Automatic alternation between pumps with backup activation if one fails, plus high-level alarm for maximum reliability.
  • Solid Performance — Each pump delivers up to 46 GPM with a maximum head of 50 ft.
  • Easy Access — Includes a 24" diameter Polylok access cover; optional risers available to bring service to grade.
  • Complete Control Panel — Includes SPI/SDC-style duplex panel with automatic alternating relay, pump run indicators, and audible/visual alarm.

TECHNICAL SPECIFICATIONS

200-Gallon Fiberglass Tank

  • Dimensions: 48" Diameter x 69" Tall
  • Heavy-duty fiberglass for direct burial
  • 24" Polylok access cover
  • 4" inlet with grommet
  • 2" SCH 40 discharge pipe sealed with grommet
  • Cord seals for power and float switches

Liberty 1.0 HP Residential Grinder Pump (Model PRG101A) — Quantity: 2

  • 1.0 HP, 115V, 12.0A, 60 Hz, single phase
  • Performance: 30 GPM @ 25 ft head • Max 46 GPM • Shut-off: 50 ft
  • 2" NPT vertical female discharge
  • Heavy-duty cast iron construction
  • Patented V-Slice cutter technology shreds difficult solids
  • Includes quick-disconnect 10' power cord with plug
  • Includes 10' wide-angle mechanical float switch with piggyback plug
  • Dimensions: 11.1" L x 7.2" W x 17.6" H
  • 3-Year Manufacturer Warranty

Duplex Control Panel (SPI SDC12B or Equivalent)

  • 120/240VAC, Single Phase, 0-20 FLA
  • Automatic alternating relay
  • (3) Mechanical floats with 20 ft cords
  • 360° red alarm light and high decibel audible buzzer
  • Pump run light indicators
  • Hand/Off/Auto and Alarm On/Test/Mute toggles
  • NEMA 4X enclosure, UL 508A Listed
  • 2-Year Limited Warranty

Important Note: Grinder pumps are designed for pumping to a city sewer main or force main. They are not recommended for pumping directly into a septic tank (use a sewage ejector pump for septic applications).

APPLICATIONS

  • Homes with high wastewater volume or multiple below-grade bathrooms
  • Properties requiring redundancy and backup capability
  • Retrofitting existing homes to connect to city sewer
  • New construction on challenging lots with no gravity flow
  • Residential or light commercial wastewater applications with tough solids

WHAT'S INCLUDED

  • 200-gallon fiberglass pump basin
  • (2) Liberty 1.0 HP PRG101A residential grinder pumps
  • Duplex alternating control panel with alarm
  • Three mechanical float switches
  • 24" Polylok access cover
  • Pre-installed discharge piping and seals
  • All necessary grommets and hardware
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
