• 300 Gallon Duplex Fiberglass Pump Station with (2) 1.0 HP Little Giant Sewage Grinder Pumps and Alternating Control Panel - Part Number 300FPT-10GDUP

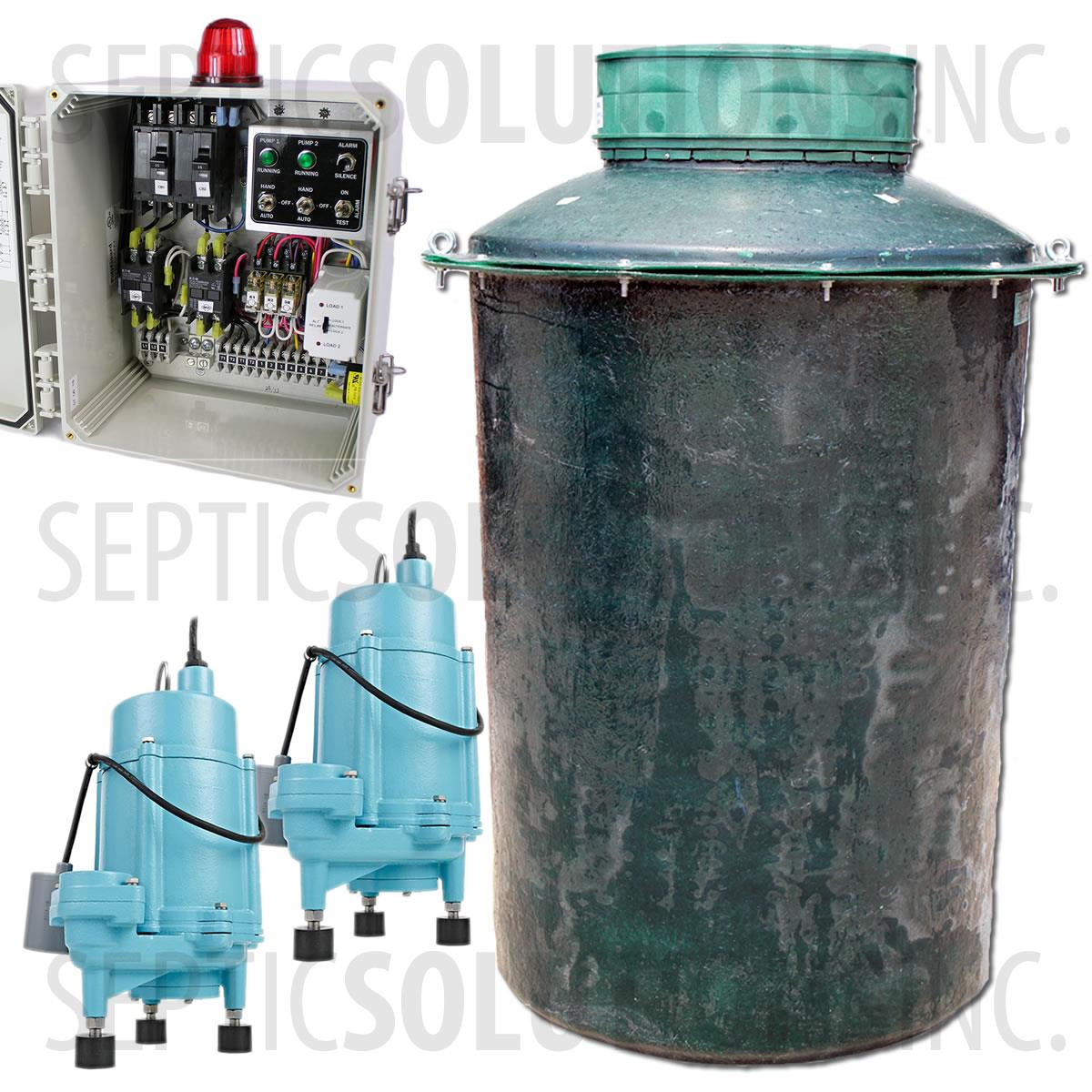

300 Gallon Duplex Fiberglass Pump Station with (2) 1.0 HP Little Giant Sewage Grinder Pumps and Alternating Control Panel

Print

FOR RAW SEWAGE PUMPING

This 300 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground sewage grinder lift station. The Little Giant 1.0 HP residential grinder pumps included in this system is designed for handling raw sewage and tough solids. The typical application for this package is to pump sewage and wastewater from a household to the city sewer.

PUMP STATION FEATURES:

  • 57'' x 67'' Basin with 300 Gallon Capacity
  • (2) 1.0 HP Little Giant Grinder Pumps with 2'' Discharge
  • 37 GPM @ 25ft of Head, Shut Off: 53ft of Head
  • 120VAC, 12.5A, 60Hz, 1 Phase
  • SPI SDC12B Duplex Control Panel with Alarm

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Built To Order Within 1-2 Business Days

$5549.00MSRP: $6199.00

Item #:300FPT-10GDUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

300 GALLON FIBERGLASS TANK

  • 57'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LITTLE GIANT 1.0 HP SEWAGE GRINDER PUMP

  • Model 16G-F151-20
  • 1.0 HP, 115VAC, 12.5A, 60 Hz
  • 37 GPM @ 25ft of Head Pressure
  • Shut Off: 53ft, Max GPM: 49
  • 2'' NPT Vertical Female Discharge
  • Heavy Duty Cast Iron Construction
  • Shreds Difficult Solids Such As Feminine Products, Wipes, Rags, Etc.
  • Includes 20' Power Cord with Plug
  • Includes 20' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 11.33'' L x 10.03'' W x 18.41'' T
  • Three Year Warranty

#50A506 DUPLEX CONTROL PANEL

  • 120/240VAC, Single Phase, 0-20 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Two 2-pole definite purpose contactors (100,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Two Year Limited Warranty
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

300 Gallon Duplex Pump Station w/ (2) 1 HP Little Giant Grinders Downloadable Documents

FileName
16G_Series_Grinder_FlyerViewDownload
16G_Series_Spec_SheetViewDownload
300FiberglassTank_SpecViewDownload
50A506_InstallViewDownload
50A506_SpecViewDownload
