• 300 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Little Giant Sewage Grinder Pumps and Alternating Control Panel - Part Number 300FPT-20GDUP

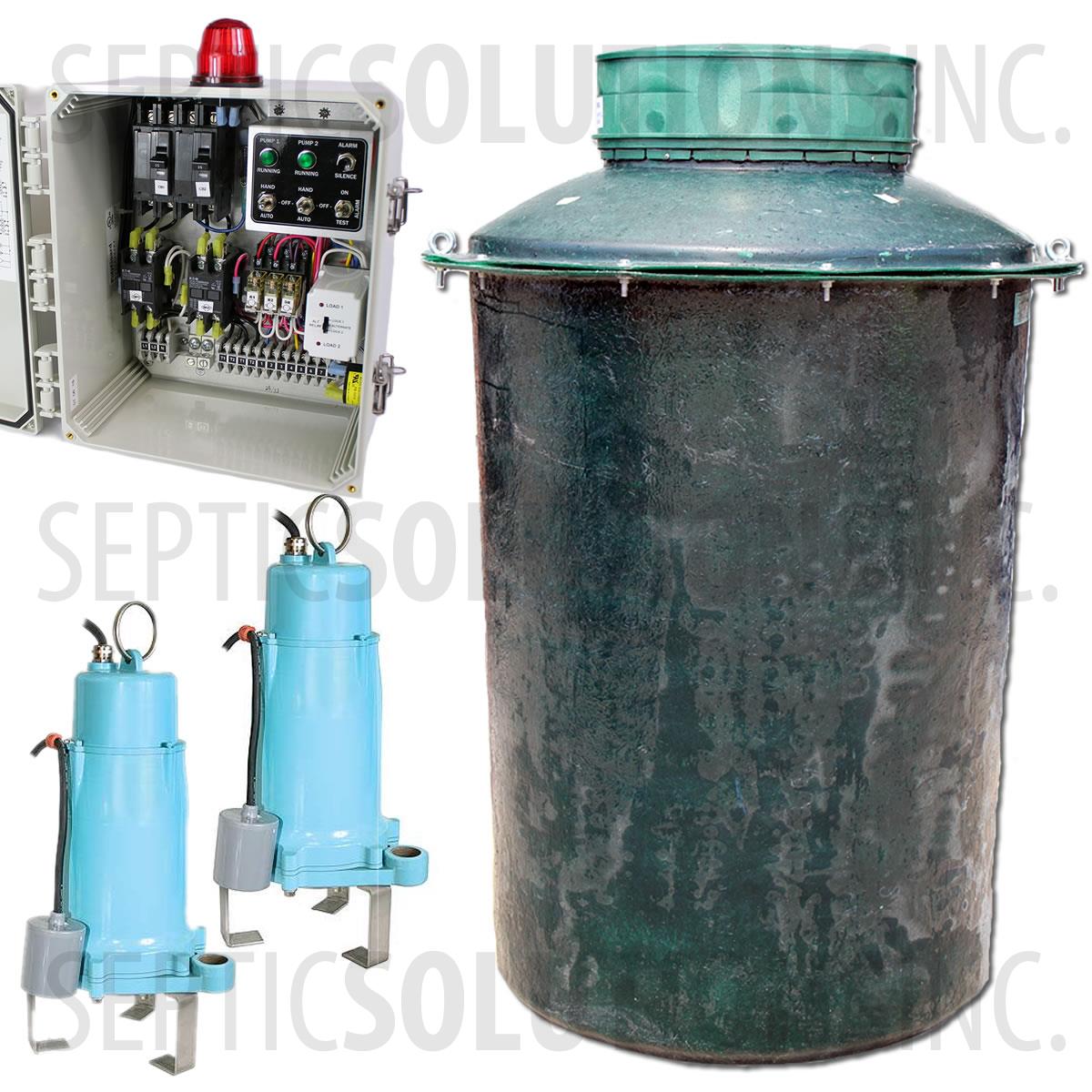

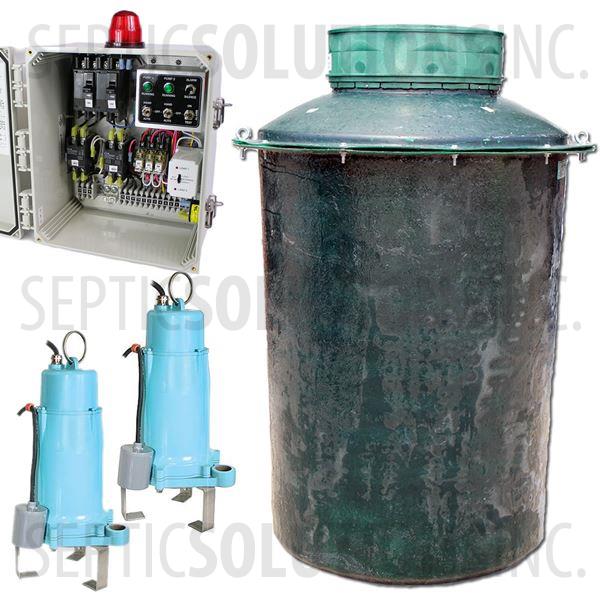

300 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Little Giant Sewage Grinder Pumps and Alternating Control Panel

Print

57'' x 67'' BASIN, 2.0 HP GRINDER PUMP, 130 FT OF HEAD, 32 GPM

This 300 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial sewage grinder lift station. This system is designed for raw sewage pumping applications. The typical application for this package is to pump sewage and wastewater from from a residential or commercial property to a city sewer main.

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Assembled In USA

Built To Order Within 1-2 Business Days

$7525.00MSRP: $7999.00

Item #:300FPT-20GDUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

300 GALLON FIBERGLASS TANK

  • 57'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 1-1/2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LITTLE GIANT 2.0 HP SEWAGE GRINDER PUMP

  • 2.0 HP, 230VAC, 13.9A, 60Hz, 1 Phase, 3450 RPM
  • 30 GPM @ 60ft of Head Pressure
  • Shut Off: 130ft, Max GPM: 32
  • Stainless Steel Leg Kit Included
  • UL/CSA Listed
  • Two Year Warranty
  • Dimensions: 11.50"L x 9.63"W x 21.56"H

NOTE: It is not recommended to use a sewage grinder pump to pump into a septic system. A sewage ejector pump is best for this application.

    #50A506 DUPLEX CONTROL PANEL

    • 120/240VAC, Single Phase, 0-20 FLA
    • (3) Mechanical Floats w/ 20ft Cords
    • 360 degree red alarm light, High decible audible buzzer (100 dB)
    • Automatic Alternating Relay
    • Pump run light indicator
    • Pump Hand/Off/Auto heavy duty toggle
    • Alarm On/Test/Mute heavy duty toggle
    • Field wiring terminal strips
    • Two 2-pole definite purpose contactors (100,000 cycle rating)
    • Motor circuit breaker
    • 3 amp control/alarm fuses
    • Color Coded Wiring
    • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
    • NEMA 4X Enclosure, UL 508A Listed
    • Two Year Limited Warranty
    This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

    300 Gallon Duplex Pump Station with (2) 2.0 HP Grinder Pumps Downloadable Documents

    FileName
    300FPT_SpecViewDownload
    50A506_SpecViewDownload
    520875_SpecViewDownload
    Pump-Station-Backfill-InstructionsViewDownload
