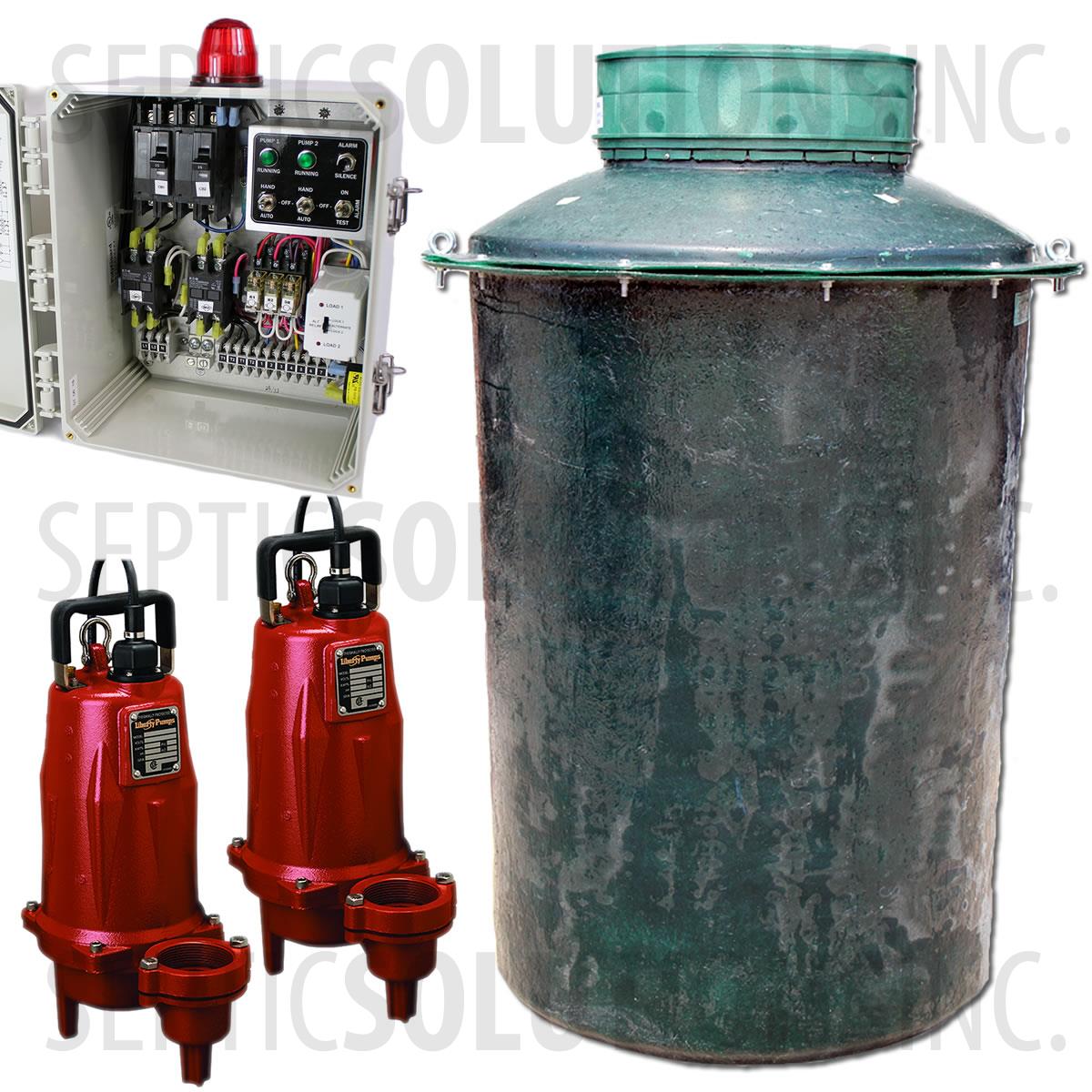

300 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Liberty Sewage Ejector Pumps and Alternating Control Panel
Print57" Diameter x 71" Tall Basin • True Duplex Redundancy • 83 ft Max Head • Up to 220 GPM • High-Head Sewage Lift Station with Alarm
This 300-gallon duplex sewage ejector pump station is a heavy-duty, pre-assembled system designed for residential and light commercial raw sewage applications that require high head pressure and full redundancy. Equipped with two powerful 2.0 HP Liberty LEH202A sewage ejector pumps and an automatic alternating control panel, it delivers excellent high-head performance with built-in backup — ensuring continuous operation even if one pump requires service. Ideal for challenging sites with long runs or significant elevation to a septic tank or gravity sewer main.
.
Built To Order Within 1-2 Business Days
Item #:300FPT-LEH202DUP
Manufacturer: Septic Solutions
FEATURES & BENEFITS
- True Duplex Redundancy — Two independent 2.0 HP Liberty ejector pumps with automatic alternation for even wear and reliable backup protection.
- Heavy-Duty Fiberglass Basin — 300-gallon capacity (57" diameter x 71" tall) engineered for direct burial with superior corrosion resistance.
- High-Head Liberty Sewage Ejector Pumps — Handle up to 2" solids with strong high-head performance for demanding applications.
- Alternating Control Panel — Includes automatic alternation, high-water alarm, pump run indicators, and HOA switches.
- Pre-Assembled & Ready to Install — Comes complete with pumps, floats, discharge piping, check valves, and 24" access cover.
- Powerful Performance — Each pump delivers up to 220 GPM with a maximum head of 83 ft.
TECHNICAL SPECIFICATIONS
300-Gallon Fiberglass Tank
- Dimensions: 57" Diameter x 71" Tall
- Heavy-duty fiberglass for direct burial
- 24" Polylok access cover (risers available)
- 4" inlet with grommet
- 2" SCH 40 discharge pipe sealed with grommet
- Cord seals for power and control wiring
Liberty 2.0 HP Sewage Ejector Pumps (Qty: 2) — Model LEH202
- 2.0 HP, 230V, 18.0A, 60 Hz, single phase
- Performance: 120 GPM @ 50 ft head • Max 220 GPM • Shut-off: 83 ft
- 20 ft minimum head requirement
- 2" NPT vertical female discharge
- Handles 2" solids
- 2-vane cast iron impeller
- Heavy-duty cast iron construction
- Includes 25 ft quick-disconnect power cord with plug
- Dimensions: 12.9" L x 8.1" W x 17.4" H
- 3-Year Manufacturer Warranty
SPI #50A506 Duplex Control Panel
- 120/240VAC single phase, 0-20 FLA
- Automatic alternating relay
- (3) mechanical float switches with 20 ft cords
- 360° red alarm beacon + 100 dB audible buzzer
- Pump run indicators, HOA switches, Alarm Test/Mute
- NEMA 4X weatherproof enclosure, UL 508A listed
- 2-Year Limited Warranty
Important Note: Sewage ejector pumps are designed for pumping raw sewage into a septic tank or gravity sewer main. For pumping to a pressurized force main, use grinder pumps instead.
APPLICATIONS
- Homes with basements or below-grade bathrooms requiring higher head pressure
- Properties with long or elevated runs to the septic tank or sewer main
- Retrofitting existing properties to connect to city sewer
- New construction on challenging lots without gravity drainage
- Light commercial or multi-unit residential wastewater applications
WHAT'S INCLUDED
- 300-gallon fiberglass duplex basin
- (2) Liberty 2.0 HP sewage ejector pumps (LEH202)
- SPI duplex control panel with alarm
- Three mechanical float switches
- 24" Polylok access cover
- Pre-installed discharge piping, check valves, and seals
- All grommets, hardware, and wiring terminals
