RAB 202 Outdoor Aerobic Alarm and Control Panel

Print

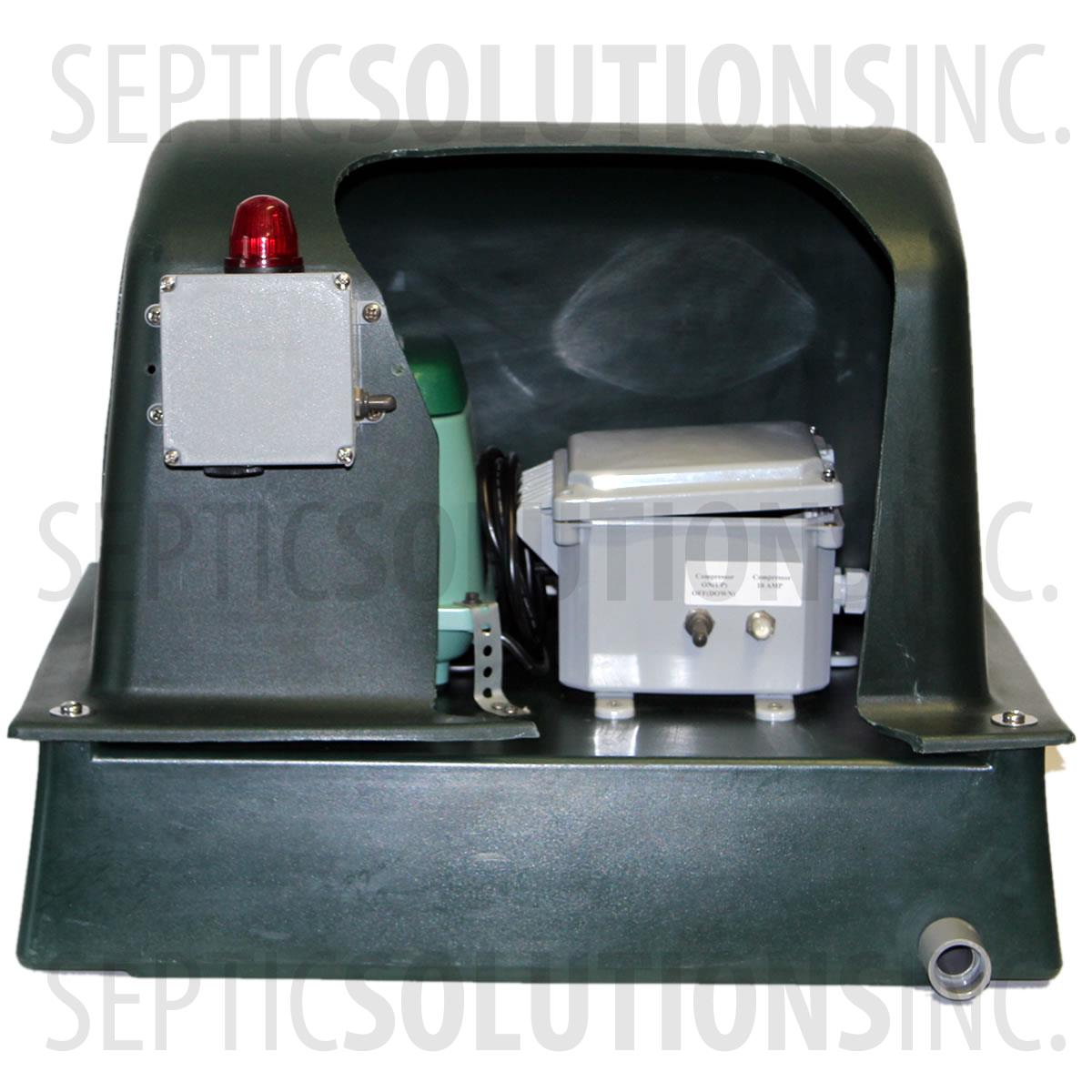

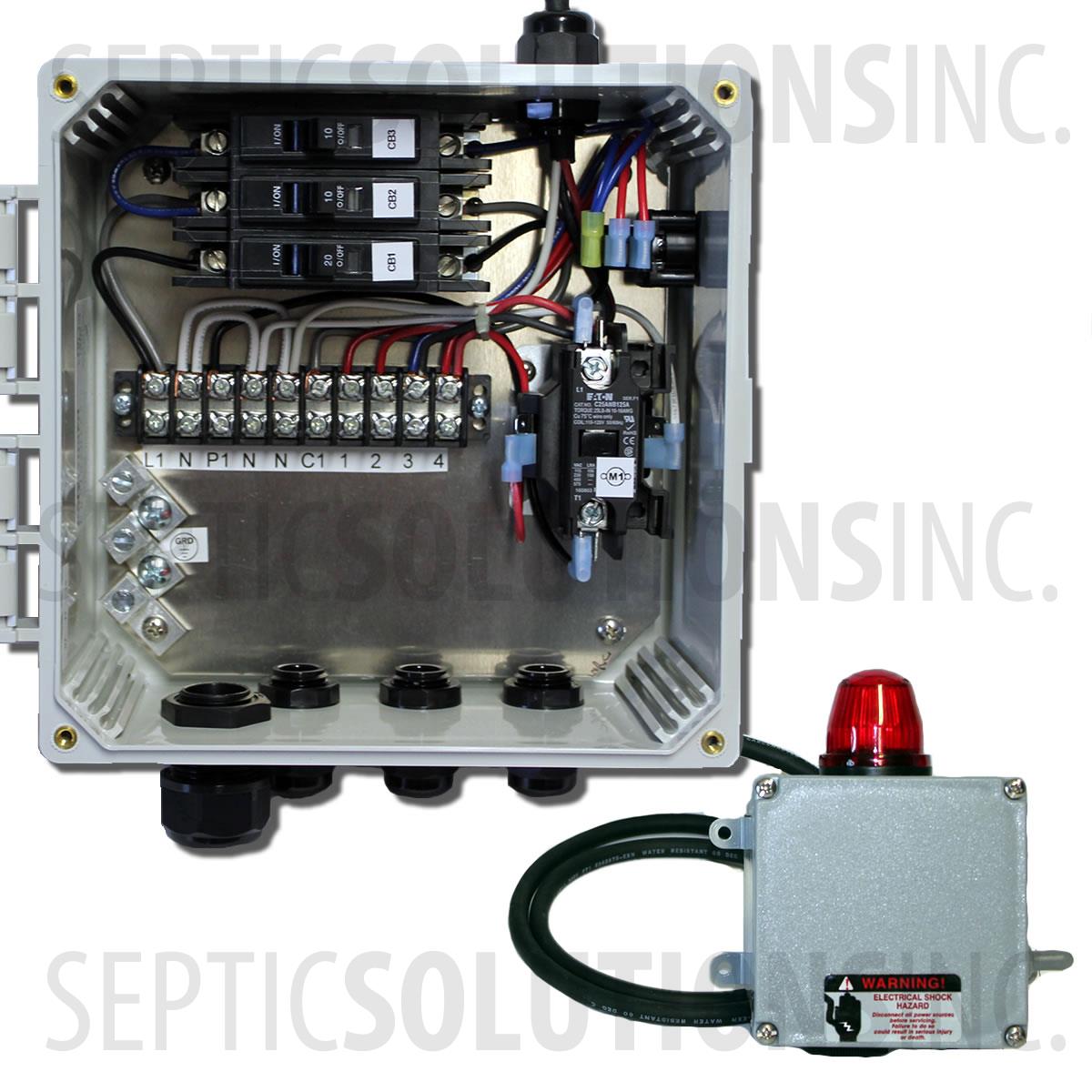

The RAB 202 aerobic alarm and control panel is designed to be installed on an air pump housing. The package includes a control box that sits under the housing with the air pump and an alarm box that attaches to the outside of the housing. The RAB 202 can be used with aerobic systems that have an air pump and a submersible pump.

In Stock

$295.00 MSRP: $345.00

Item #:RAB202-FS

Manufacturer: SPI

RAB202 Aerobic Control Panel Features

  • Model: RAB202-FS
  • Designed To Mount on an Air Pump Housing (i.e. Item #SSCOMBO40)
  • 120VAC Circuits for Air Pump, Submersible Pump, and Alarms
  • 20 Amp Submersible Pump Circuit, 10 Amp Air Pump Circuit, 10 Amp Alarm/Control Circuit
  • 2 pole definite purpose contactor (100,000 cycle rating) for Submersible Pump
  • 10.25'' x 8'' x 4'' Control Box Installs Underneath Air Pump Housing
  • Female Plug-In on Control Box for the Air Pump
  • Air Pump On / Off Toggle Switch
  • Adjustable High Pressure Sensor - Signals High Water or Plugged Diffusers
  • High Level Alarm for Submersible Pump
  • Low Pressure Sensor - Activates When Air Pressure Drops Below 1 PSI
  • 1/8'' Barb Fitting To Connect Air Pump to Pressure Sensor
  • 4''x4'' External Alarm Box Contains Red Light and Audible Buzzer
  • Run / Test / Mute Toggle Switch
  • Two Year Warranty
