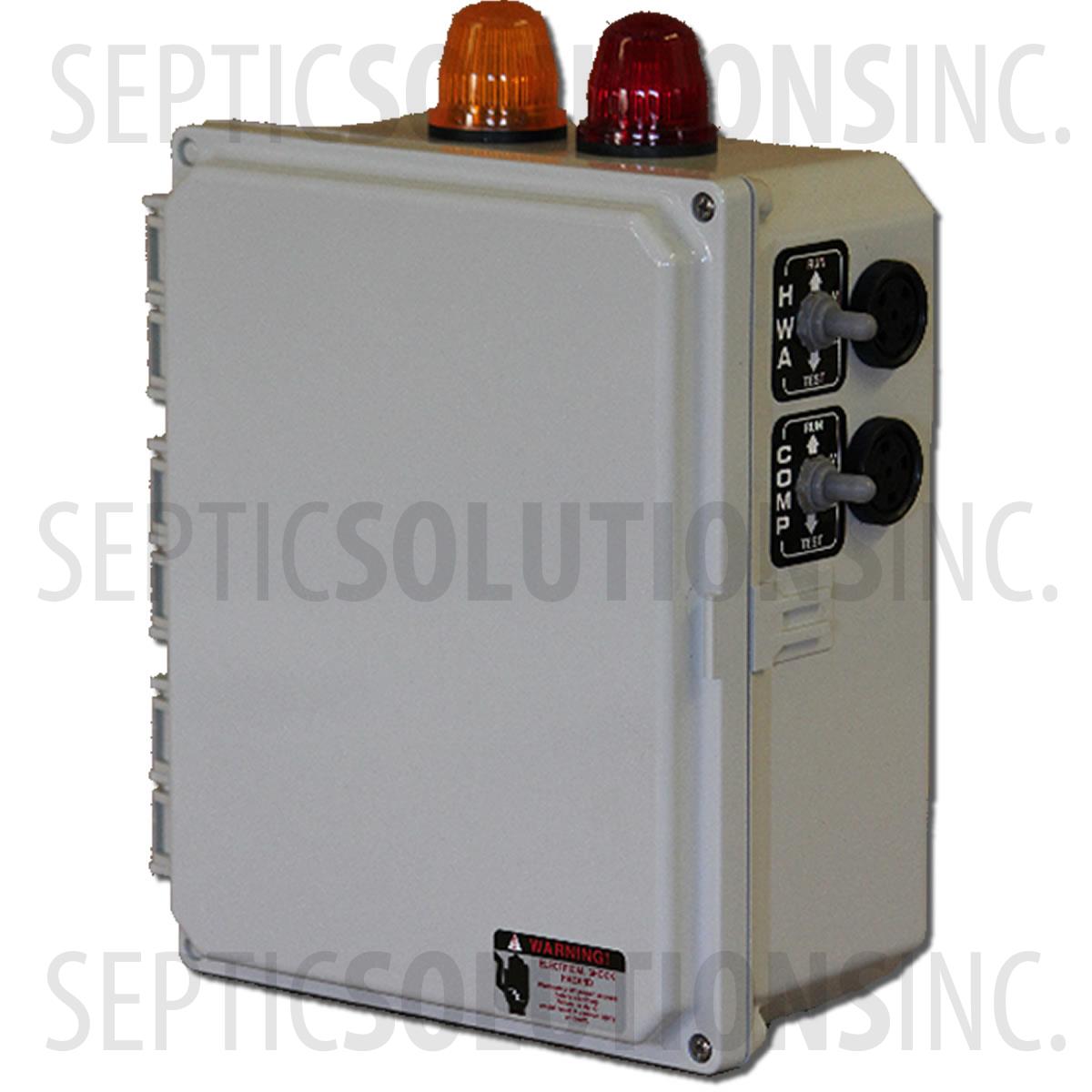

BIO-T Aerobic Time Dosing Control Panel for Drip Irrigation Systems

Print

The BIO Aerobic Time Dosing control panel is designed for use on aerobic treatment systems with an air pump and a submersible pump. This control panel includes a repeat cycle timer for the submersible pump and gives alarm for high water and air pump failure. This panel can be used for timed dosing applications and drip systems.

Made In USANEMA 4XUL Listed

In Stock

$1025.00MSRP: $1275.00

Item #:50B017-120D-OV-1CAL

Manufacturer: SPI

Float Switch Configuration:

BIO-T Aerobic Control Panel Features

  • 120VAC Circuits for Air Pump, Submersible Pump, and Alarms
  • Omron Repeat Cycle Timer for Time Dosing Applications
  • Hand/Off/Auto Switch for Submersible Pump
  • 2 Pole Definite Purpose Motor Contactor (100,000 Cycle Rating)
  • Air Pump Failure Alarm and High Water Alarm
  • Terminal Spot for Timer Override Float Switch
  • Externally Mounted Pressure Switch
  • Externally Mounted High Decibel Alarm Buzzers
  • 360 Degree Red High Water Alarm Light
  • 360 Degree Amber Air Pump Failure Alarm Light
  • Externally Mounted Alarm Run/Test/Mute Switch
  • NEMA 4X Enclosure. UL 508A Listed
  • Dimensions: 10.25'' x 8.00'' x 4.00''
  • Float Switches Sold Separately
  • Limited Two Year Warranty

BIO-T Aerobic Control Panel Applications

To make a decision on which panel will work best for your particular system, you need to figure out what the components are of your system. Every aerobic system will have an air pump, that is a given. Some systems but not all will have a submersible pump to remove the water from the system sending it either to a secondary treatment system, or commonly a drip irrigation or spray irrigation system. The type of system you have will determine which control panel functions you will need. See these options discussed further below.

BIO-T AEROBIC TIME DOSING CONTROL PANEL

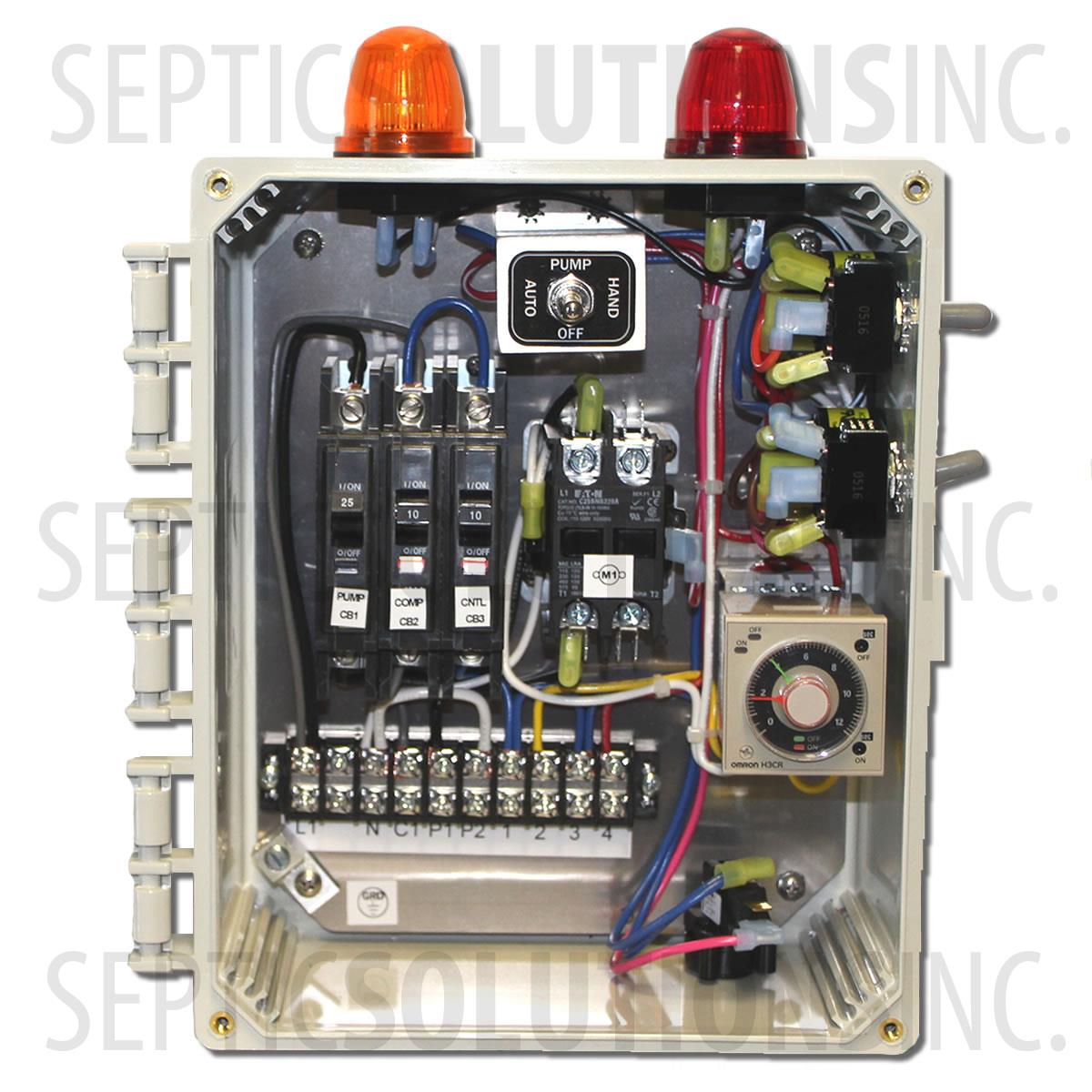

The BIO-T Aerobic Time Dosing double light control panel works best on aerobic systems that include an air pump and a submersible pump going to a drip irrigation system or low pressure dosing system. This panel includes three breakers for the alarm circuit, air pump circuit, and submersible pump circuit. It includes separate alarms for both high water and air pump failure. The high water alarm operates from a float switch in the tank, while the air pump failure alarm uses a pressure switch connected to the pump via a 1/8’’ airline.

This panel also includes the Omron Repeat Cycle Timer to control the cycles of the submersible pump. This timer allows you to set an "ON" interval (seconds, minutes, or hours) and an "OFF" interval (seconds, minutes, or hours). The timer continues to repeat the ON and OFF cycles over and over again.

BIO-T Aerobic Time Dosing Control Panel Downloadable Documents

FileName
50B017-120D_SpecViewDownload
