Alderon Check It Simplex Control Panel (120/230V, 0-20FLA)

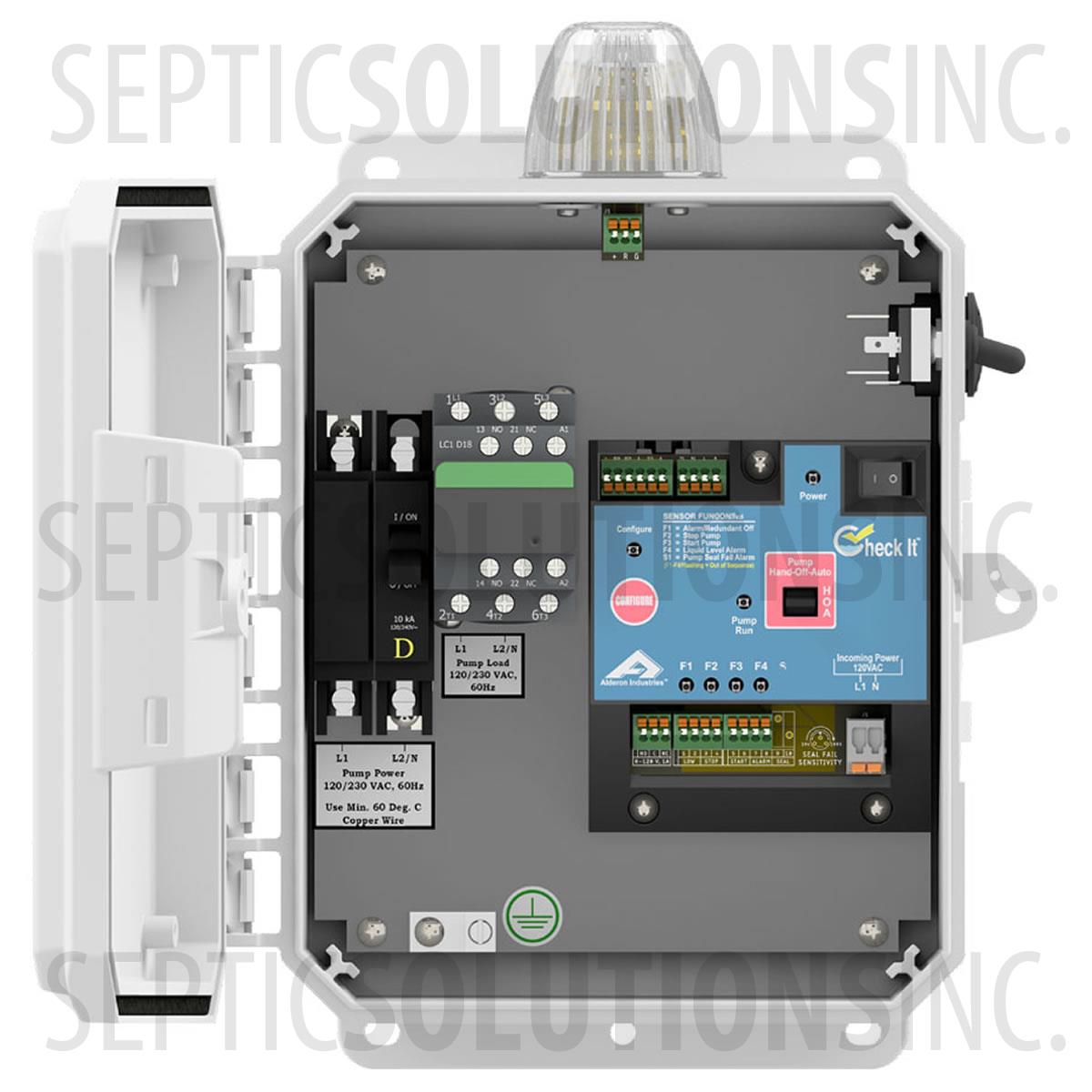

The Alderon Check It™ Simplex Control Panel is designed to control and monitor a single submersible pump. This control panel includes pump circuitry, a built-in high water alarm, Check It™ Self Diagnosing system, and 3 mechanical float switches for "OFF", "ON", and "ALARM" controls. The Alderon Check It™ Simplex control panel can handle up to 4 digital switch inputs for Low Alarm/Redundant Off, Off Level, On Level, and High Level.

In Stock

$739.00MSRP: $1049.00

Item #:2010630

Manufacturer: Alderon

Product Documents

Check It 1P Simplex Quick Start Guide

Check It 1P Simplex Specification

Related Items

Alderon Altra Control Duty Mechanical Float Switch with 20' Cord

Alderon Altra Control Switch with 20' Cord

Item #:2001108

Our Price: $59.00MSRP: $79.00

Ships Tuesday
with FREE SHIPPING

Order in the next: -- hr --min --sec

Ship Date Tue, Nov 25

Delivery: 1-4 Business Days

Alderon Check It™ Simplex Panel Features

120/230VAC, Single Phase, 0-20FLA
120/230VAC Power Input for Pumps, 120VAC Power Input for Alarm/Control Circuit
(3) Mechanical Float Switches with 20 Feet Cords for OFF, ON, and ALARM
Up to (4) Floats Can Be Connected for Low Alarm/Redundant Off, Off Level, On Level, and High Level
Multi-Color LED Beacon: Green = Normal, Green Flashing = Pump Running, Red Flashing = High/Low Alarm
High Decible Audible Buzzer (100 dB)
Check It™ Self Diagnosing System - One Touch Troubleshooting
Pump Run Indicator Light
Float Switch Indicator Lights
Pump Hand / OFF/ Auto Toggle Switch
Alarm Run / Test / Mute Toggle Switch
IEC Motor Contactor (2,000,000 Cycle Rating)
Motor Circuit Breaker
3 Amp Control Circuit Fuse
Auxiliary Dry Contacts - NO/NC activated by General Alarm or Power Loss
Color Coded Wiring / Field Wiring Terminal Strips)

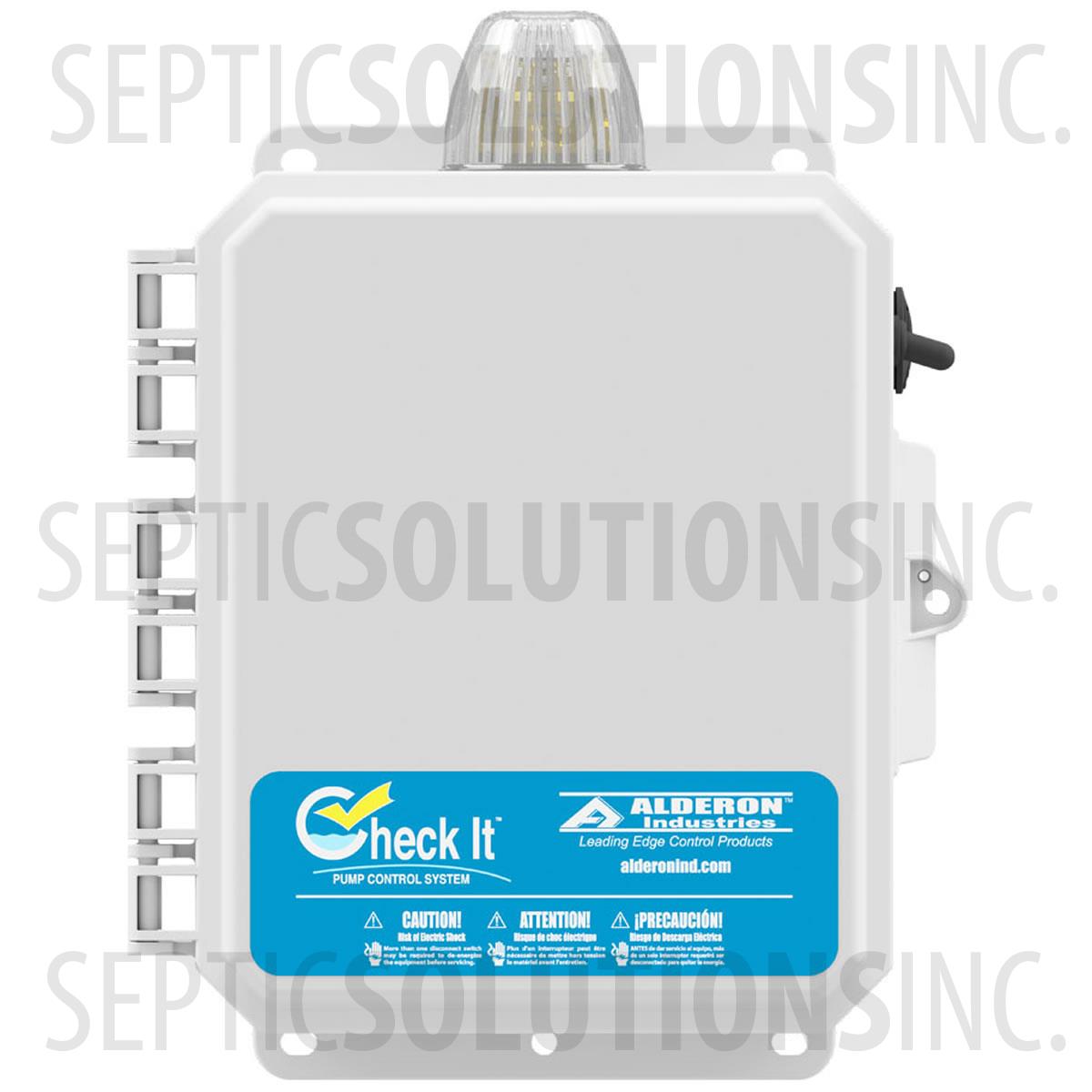

NEMA 4X Enclosure, UL 508A Listed
Dimensions: 10''00 W x 11.25'' T x 5.00'' D
Three Year Warranty

Alderon Check It™ Simplex Panel Applications

The Alderon Check It™ Simplex Pump Station control panel can operate a pump station with a single submersible pump. This control panel can operate a submersible pump up to 20 FLA at 120VAC. The Alderon Check It™ control panelincludes the standard features of most simplex control panels which include the HOA switch, Pump Run Indicator Light, Alarm Run/Test/Mute Switch, and the Audible Buzzer and Visual Light Alarms.

Sewage Pump/Lift Stations
Effluent Pump/Lift Stations
Controlling and Monitoring Any 120V or 230V Pump up to 20FLA

One Button Self Diagnosing

Reduce installation and service time of the control panel with Alderon's Check It™ One Touch Troubleshooting! Press the Check It™ switch to diagnose electrical wiring, float switch operation, and installation, and pump operation.
