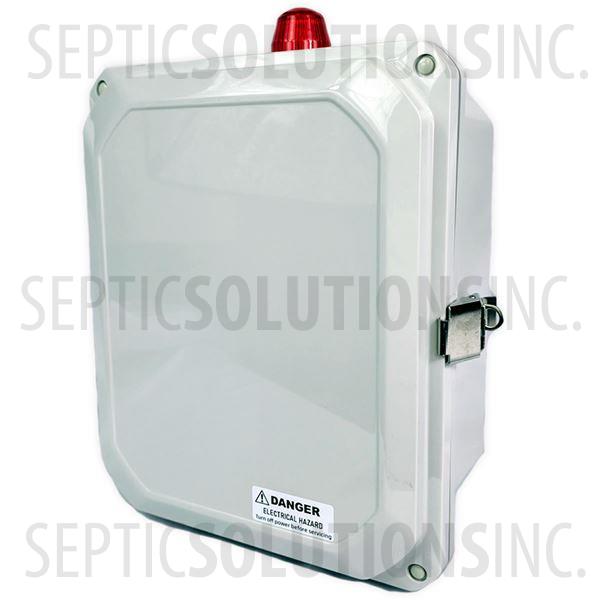

Legacy Controls LE-4003 Simplex Demand Dose Control Panel (120V/230V, 0-15FLA)
Print
In Stock
Item #:CP-001-4-0003
Manufacturer: Legacy Controls
Operation Manual
Ships Tuesday
with FREE SHIPPING
Order in the next: -- hr --min --sec
Ship Date Tue, Apr 14
Delivery: 1-4 Business Days
LE-4003 Key Features
- Precise three-float control for accurate OFF, ON, and HIGH-WATER operation
- Instant high-water alarm with bright red warning globe and 85+ dB buzzer
- Industrial-grade sealed rotary selectors and tactile HOA push buttons
- Bright pump-run indicator for at-a-glance status
- Separate pump and alarm circuits that keep notifications active even if the pump trips
- Color-coded wiring and clearly labeled terminals for fast, error-free installation

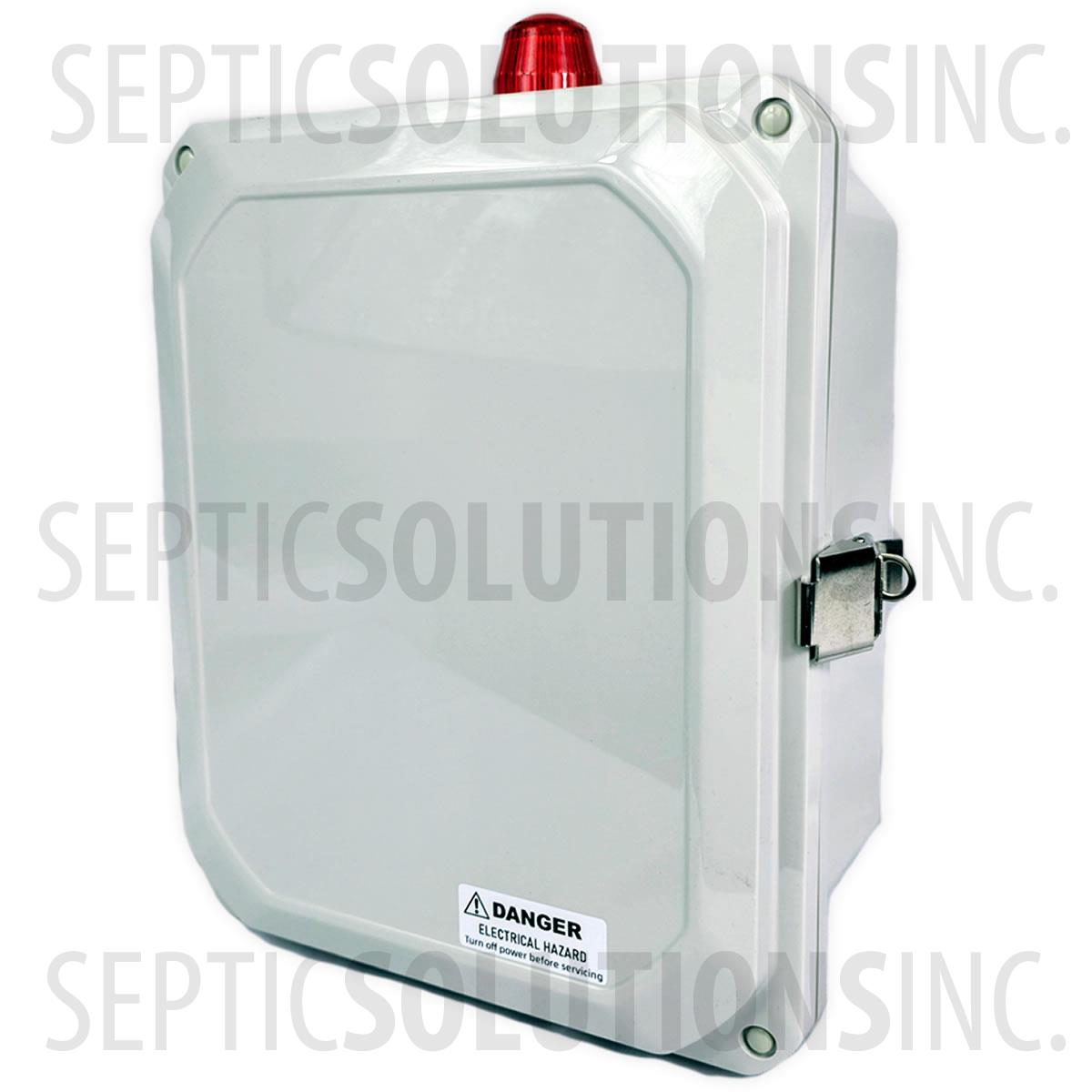

- Rugged NEMA 4X weatherproof polycarbonate enclosure
- Heavy-duty stainless steel lockable latch for security and long-term durability
- Floats included for fast, complete installation
LE-4003 Simplex Control Panel Specifications
- 120/240 VAC single-phase, 0–15 FLA rating
- Two Power Inputs: 120/240VAC for Pump Circuit, 120VAC for Control Circuit
- 1 HP @ 120 V / 2 HP @ 240 V – ideal for residential and light commercial use
- Industrial-grade components with 26–10 AWG, 600 V rated terminal blocks
- (3) Mechanical Floats with 15ft cords
- 360 Degree Red Alarm Light Beacon
- High Decibel Alarm Buzzer (85 dB)
- Pump Run Indicator Light
- Pump Hand/Off/Auto Rotary Toggle
- Alarm Test Heavy Duty Button
- Alarm Silence Heavy Duty Button

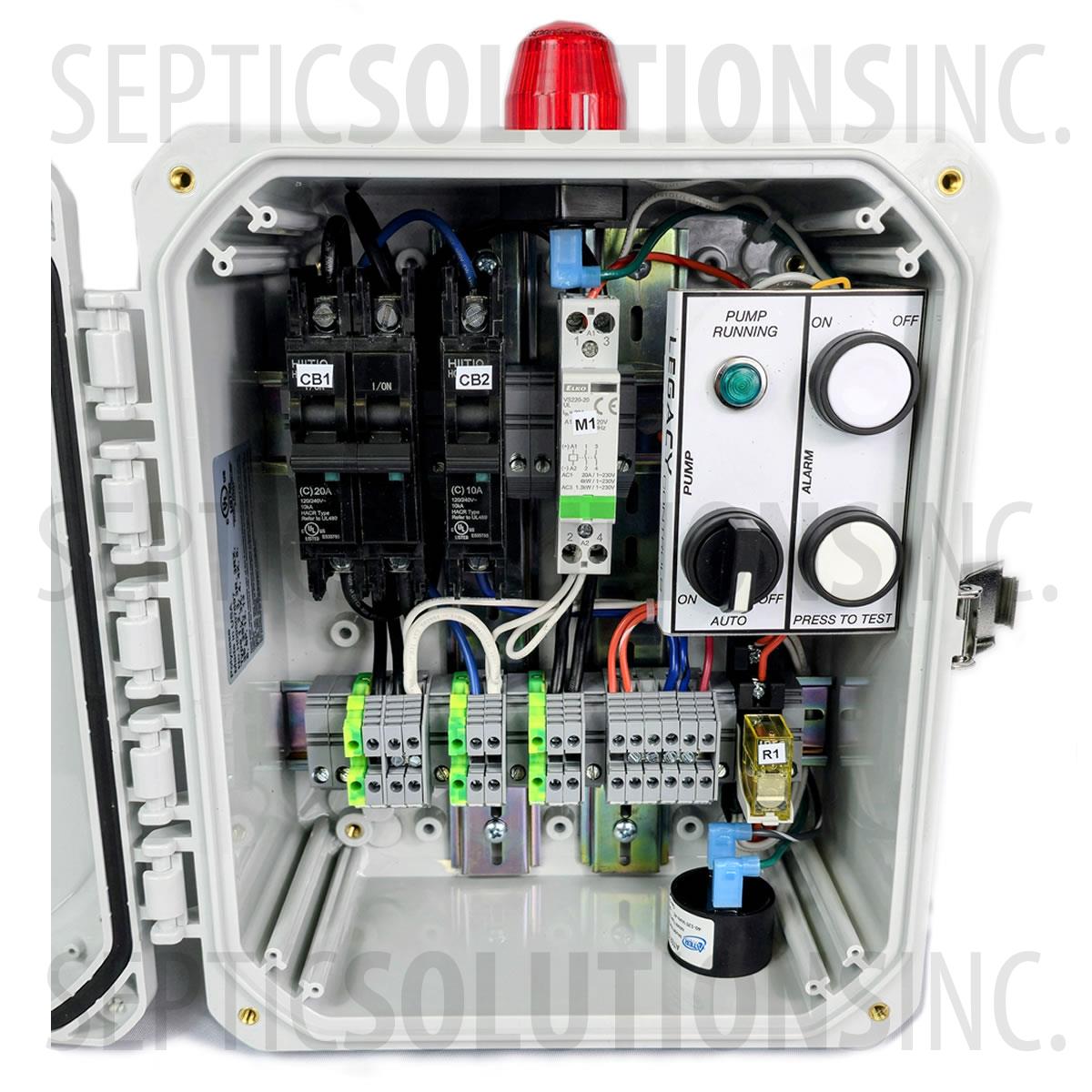

- Elco VS220 Motor Contactor
- 20 Amp Motor circuit breaker
- 10 Amp Control circuit breaker
- Stainless Steel lockable door latch
- Color Coded Wiring, Field Wiring Terminal Strips
- NEMA 4X Enclosure, UL 508A listed (NITW/NITW7)
- Dimensions: 10.25'' x 12.125'' x 5.25''
- Two Year Limited Warranty
LE-4003 Applications
A reliable solution for simplex sewage and effluent lift stations. Ideal for residential and light commercial septic systems, wastewater pumping stations, and any single-phase submersible pump up to 15 FLA requiring dependable automatic float control and high-level alarm protection. Perfect for new installations or panel replacements.
Dual-Voltage Wiring
Every panel ships with a factory-installed jumper between terminals 2 (L2) and N for 120V operation out of the box. To set the panel up for 230V operation, simply remove the jumper and wire the panel according to the instructions.
Main Pump Power Circuit120 V Operation:
- Hot to terminal 1 (L1)
- Neutral to terminal 2 (L2)
- Ground to terminal G
- Leave jumper installed between 2 and N
240 V Operation:
- Hot 1 to terminal 1 (L1)
- Hot 2 to terminal 2 (L2)
- Neutral to terminal N
- Ground to terminal G
- Remove jumper between 2 and N
Separate Alarm Circuit (120 V Only):
- Hot to terminal 3
- Neutral to dedicated alarm N terminal
- Ground to terminal G
