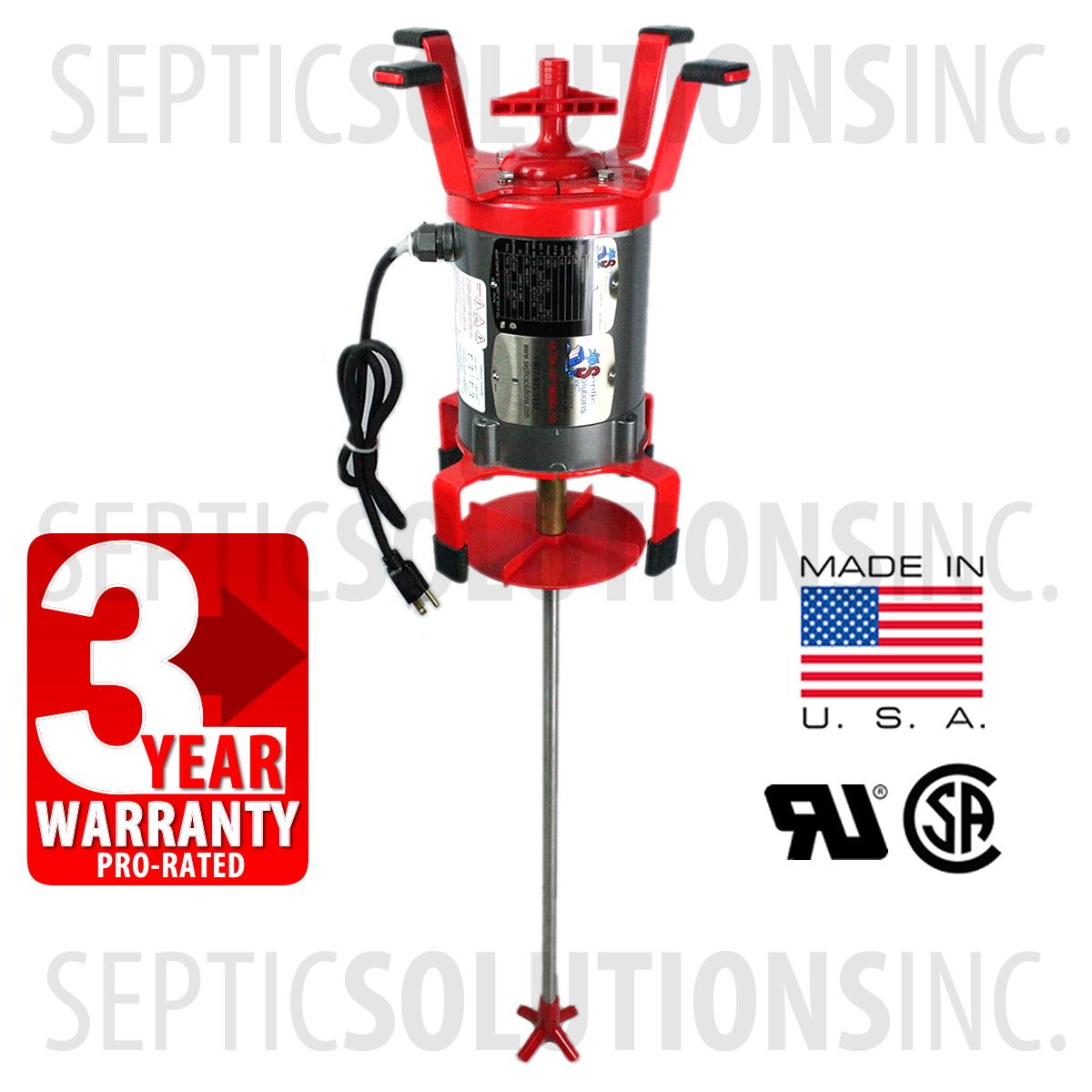

Ultra-Air Model 735 RED Septic Aerator - Alternative Replacement For Jet Aerator

The Ultra-Air® Model 735 Red is a compatible alternative replacement septic tank shaft aerator for Jet Aeration systems. The 735 Red model has 12'' top brackets that are designed to fit a 10'' diameter opening. It is a complete compatible replacement for Jet OEM models 660, 665, and 700LL. The Ultra-Air® Model 735 Red is made 100% in the USA. The unit is brand new and comes with a 3 Year Warranty!

CSA Made In USA RU

In Stock

$395.00 MSRP: $475.00

Item #:UA12R

Manufacturer: Septic Solutions

ULTRA-AIR® MODEL 735 RED SPECIFICATIONS

  • Alternative Replacement for Jet Aerators

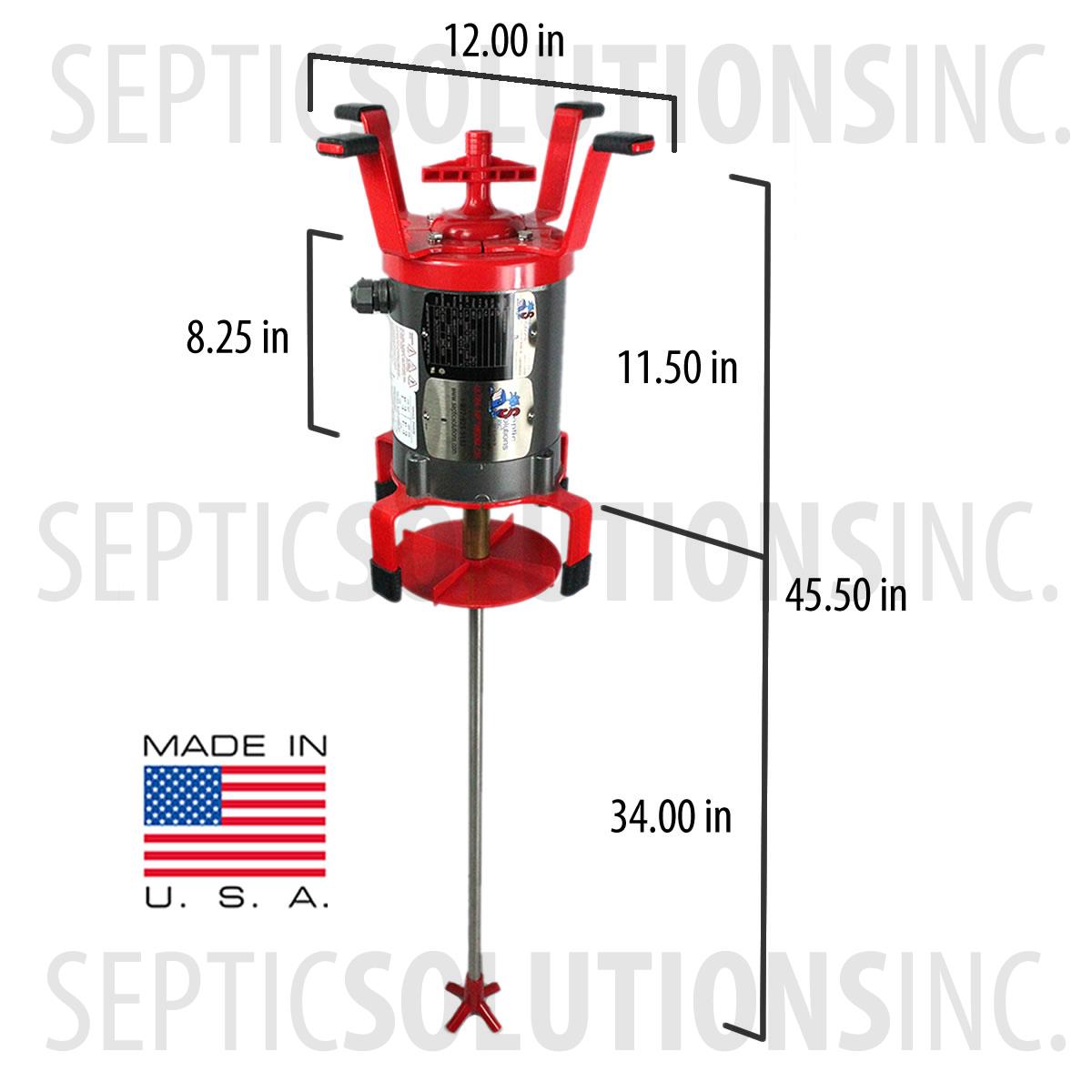

  • 12'' Brackets Fit a 10'' Diameter Opening
  • 1/4 HP Baldor Electric Motor - Made In The USA!
  • 115VAC, 60 Hz, 1725 RPM
  • 4.6 FLA, 3.5A Operating Current
  • Aerodynamic Aspirator Tip
  • Balanced 5/8'' Stainless Steel Shaft
  • Brass Coupling with Set Screws
  • Large Plastic Suds Restrictor
  • Powder Coated Steel Brackets
  • Rubber Vibration Control Feet
  • Plastic Motor Shield with Handle
  • Condition: NEW
  • Runs on a 4 to 7 Amp Circuit
  • Works with Jet OEM Control Panels
  • Designed For Continous Operation
  • Includes 3ft Power Cord with Plug
  • 12'' Brackets fit a 10'' Diameter Opening
  • Not tested or approved by NSF
  • Made 100% in the U.S.A.
  • Replacement Parts Available
  • Replacement Alarms and Control Panels are also available
  • Very Easy To Install! - Simply lower the motor into the tank by the handle and plug it in!
  • Motor shield protects the motor from moisture and tank debris
  • Includes 3ft Power Cord with Plug
  • WHALE OF A DEAL - EXTENDED THREE YEAR PRO-RATED WARRANTY!

    ULTRA-AIR® MODEL 735 RED ADVANTAGES

    MADE 100% IN THE USA!

      The Ultra-Air Model 735 aerator is made 100% in the USA! The electric motors are made specially for Septic Solutions by Baldor Electric Motor Company in FT. Smith, Arkansas. The plastic parts are manufactured in Indiana from molds owned by Septic Solutions, Inc. The brackets are stamped, bent, and powder-coated right here in our hometown of Dieterich, Illinois. The shaft and brass couplings are also machined right here in our hometown of Dieterich, Illinois. The units are assembled, boxed, and shipped from here at our facility in Dieterich, Illinois. With the Ultra-Air Model 735 you are getting a quality product that has been completely manufactured and assembled from start to finish 100% in the USA!

      FLOOD RESISTANT MODELS AVAILABLE!

      The Ultra-Air® Model 735 is the only aftermarket product available with a Flood Resistant motor. The White Splash Flood Resistant unit uses the same Baldor 1/4 HP electric motor, but this motor is specially sealed and can withstand being submerged for intermittent periods of time. If you have issues with the system backing up due to an outlet being plugged or a failed submersible pump, we would recommend the Flood Resistant unit.

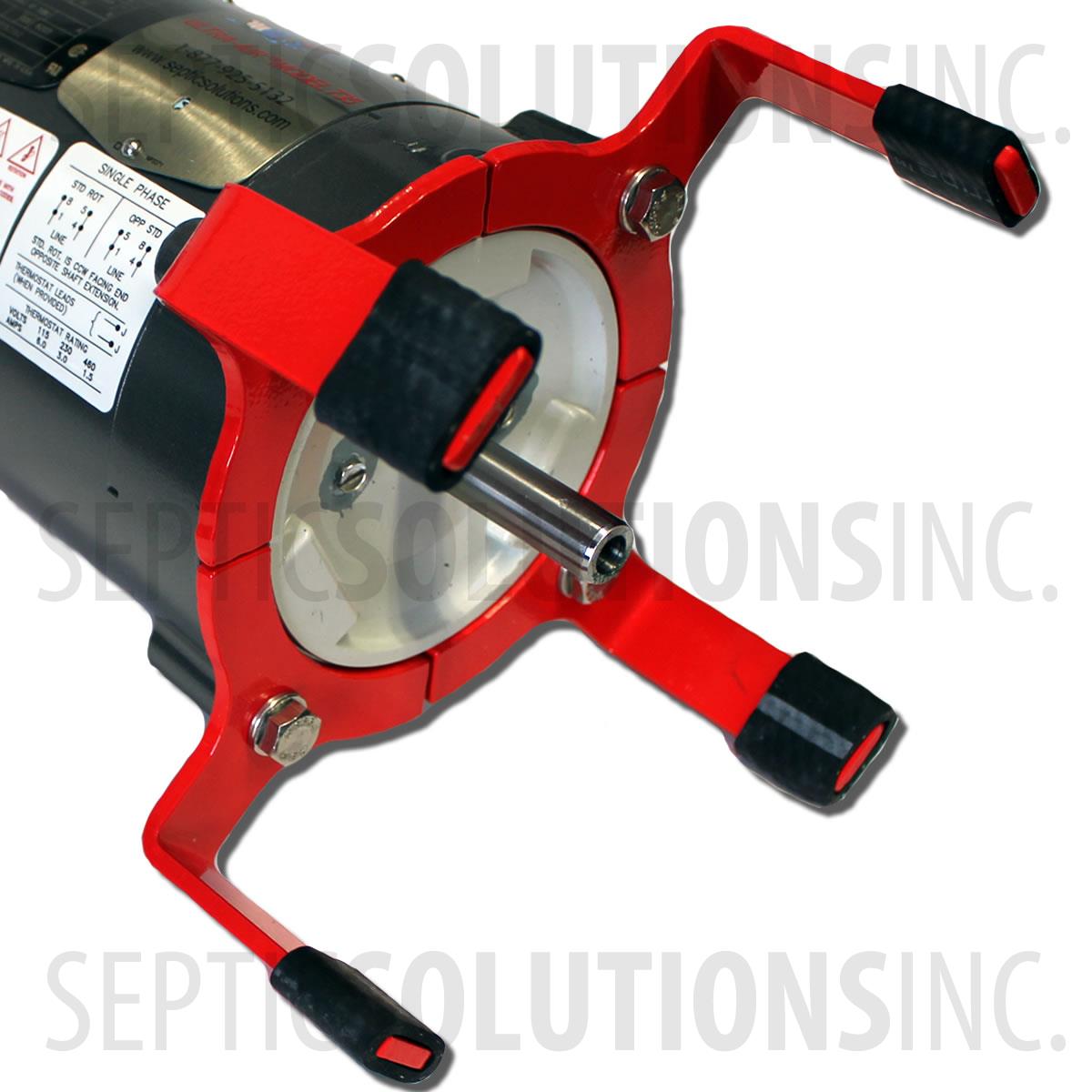

      WELD-FREE BRACKET SYSTEM

      The Ultra-Air® Model 735 uses an eight-piece bracket system (4 top, 4 bottom) with no welds. Some units available on the market use a four-piece bracket system that includes spot welds that hold the bottom and top supports together. These spot welds create a weak point in the bracket system and can cause the brackets to fail over time when exposed to the high moisture tank environment and the constant vibration of the motor.

      If the brackets fail, you would lose your motor in the bottom of your tank. Our bracket system contains zero welds and zero weak points and will not fail over time.

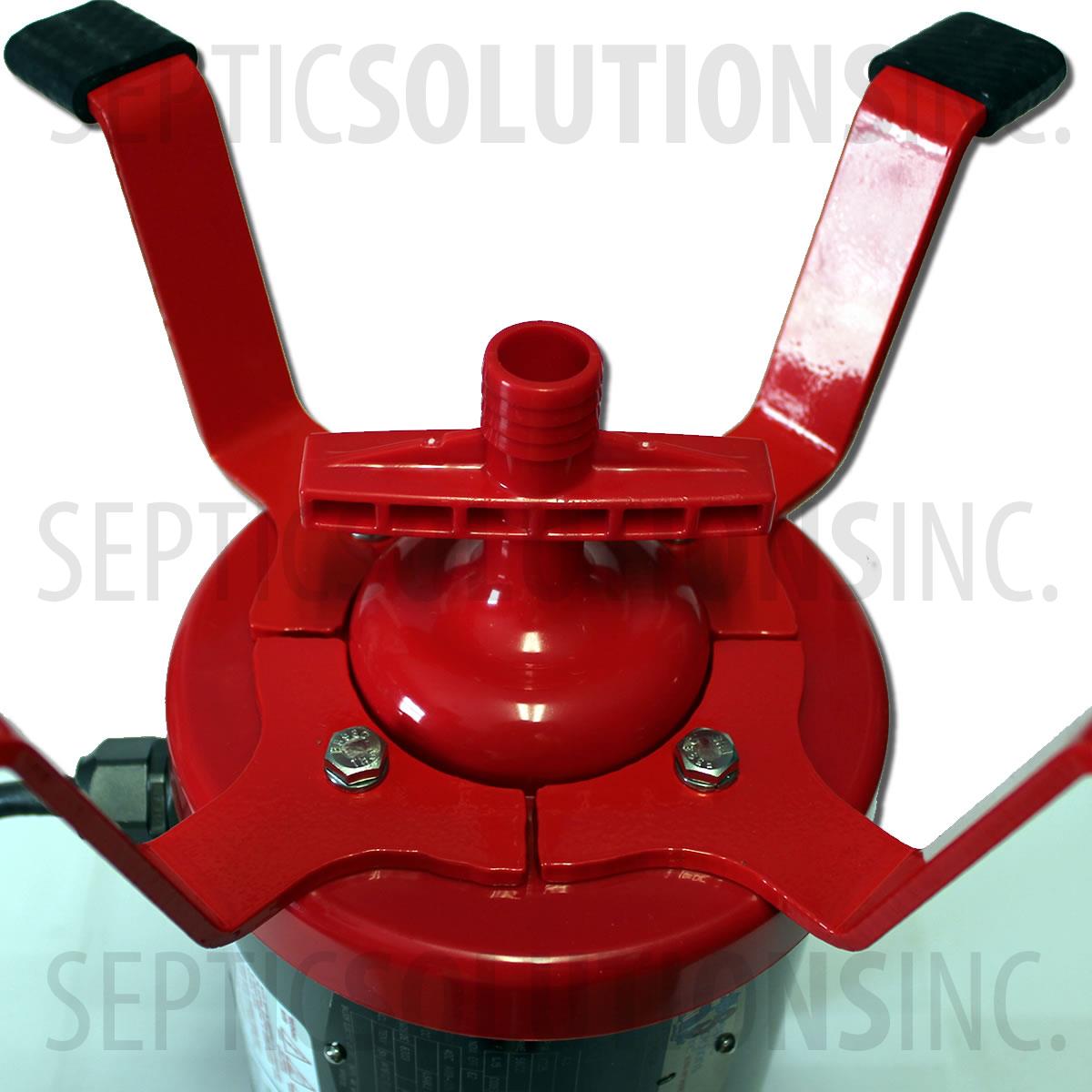

      MOTOR SHIELD/HANDLE WITH FRESH AIR HOSE BARB

      The Ultra-Air® Model 735 comes with a motor shield that includes a handle and a fresh air hose barb. The handle allows for easy installation and maintenance of your aerator. The air hose barb allows you to attach a hose from the top of the motor going out the vented lid in your tank to always ensure the motor is pulling fresh oxygen into your system. The specially designed handle will ensure that you can easily place your motor both in and out of the tank without damaging and potentially bending the shaft which would significantly reduce the life of your motor. The motor shield incorporated into the handle will also better protect the motor from the harsh environment found inside the tank. Many of the competitive brands do not have these very important features.

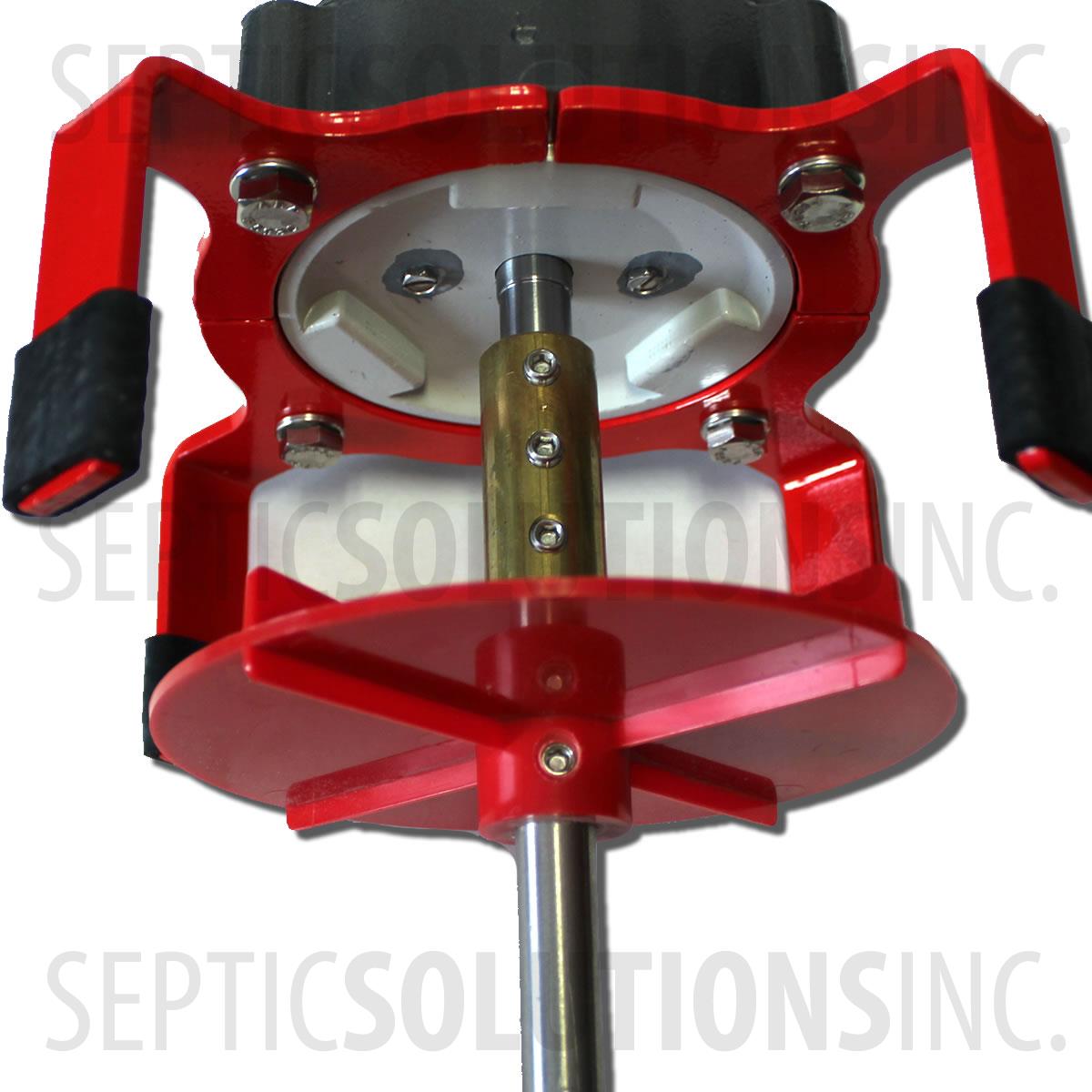

      LARGE 5'' SUDS RESTRICTOR

      The Ultra-Air® Model 735 comes with a large 5'' suds restrictor. The suds restrictor is designed to set above the water level in the tank and prevent foam and suds from getting up into the electric motor. The 2'' - 3'' suds restrictor on other models available on the market are not adequate to truly protect the motor from foam and suds. The suds restrictor can also act as a high water alarm. If the water level gets above the suds restrictor, it will cause the motor to pull high amps and trip the reset in your control panel. This will signal an alarm and let you know there is an issue.

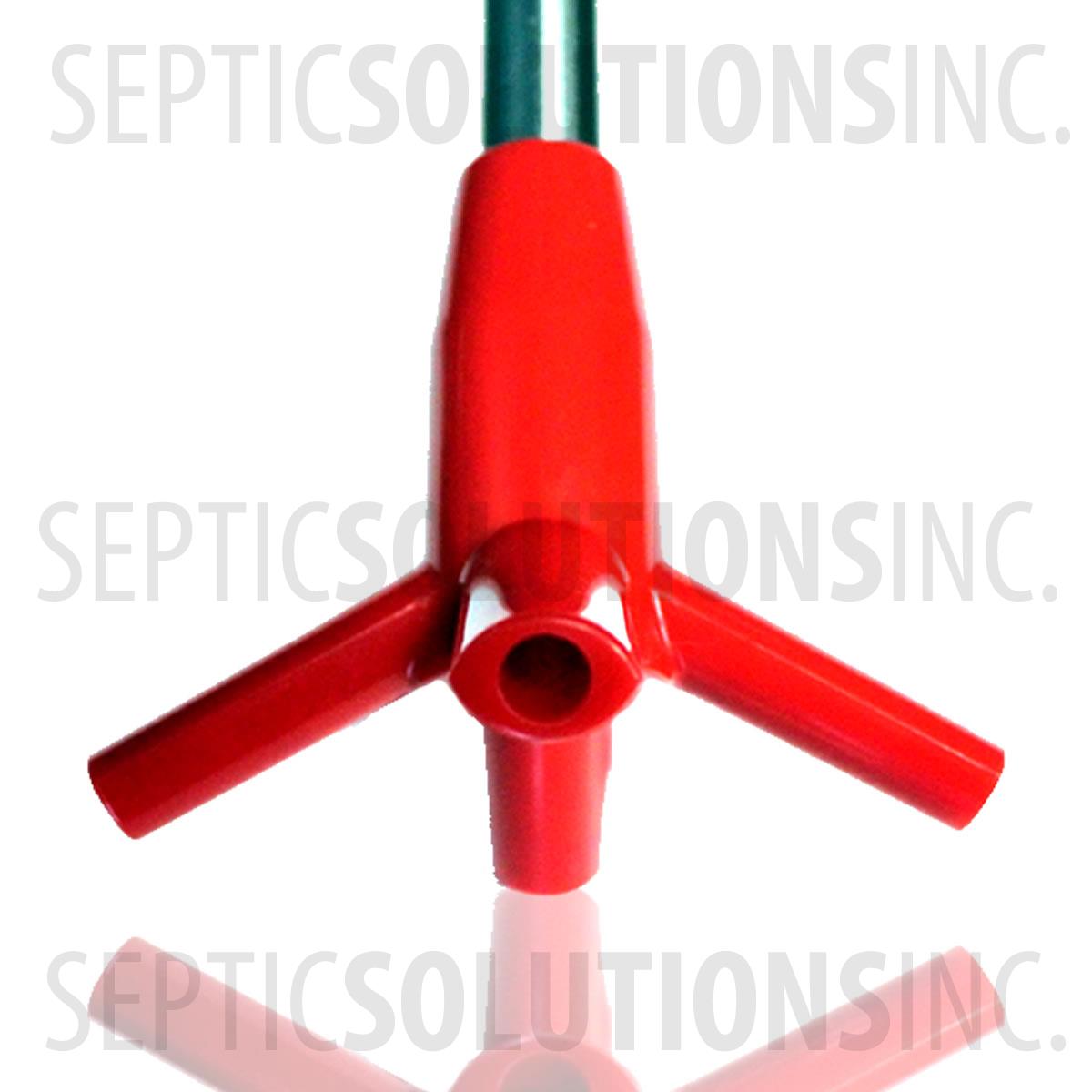

      AERODYNAMIC ASPIRATOR THAT IS TRUE TO THE OEM DESIGN

      Our revolutionary Aerodynamic Aspirator performs true to OEM airflow specifications and requirements but provides nearly 25% reduction in drag on the motor. This leads to longer motor life and less electricity usage while not sacrificing performance.

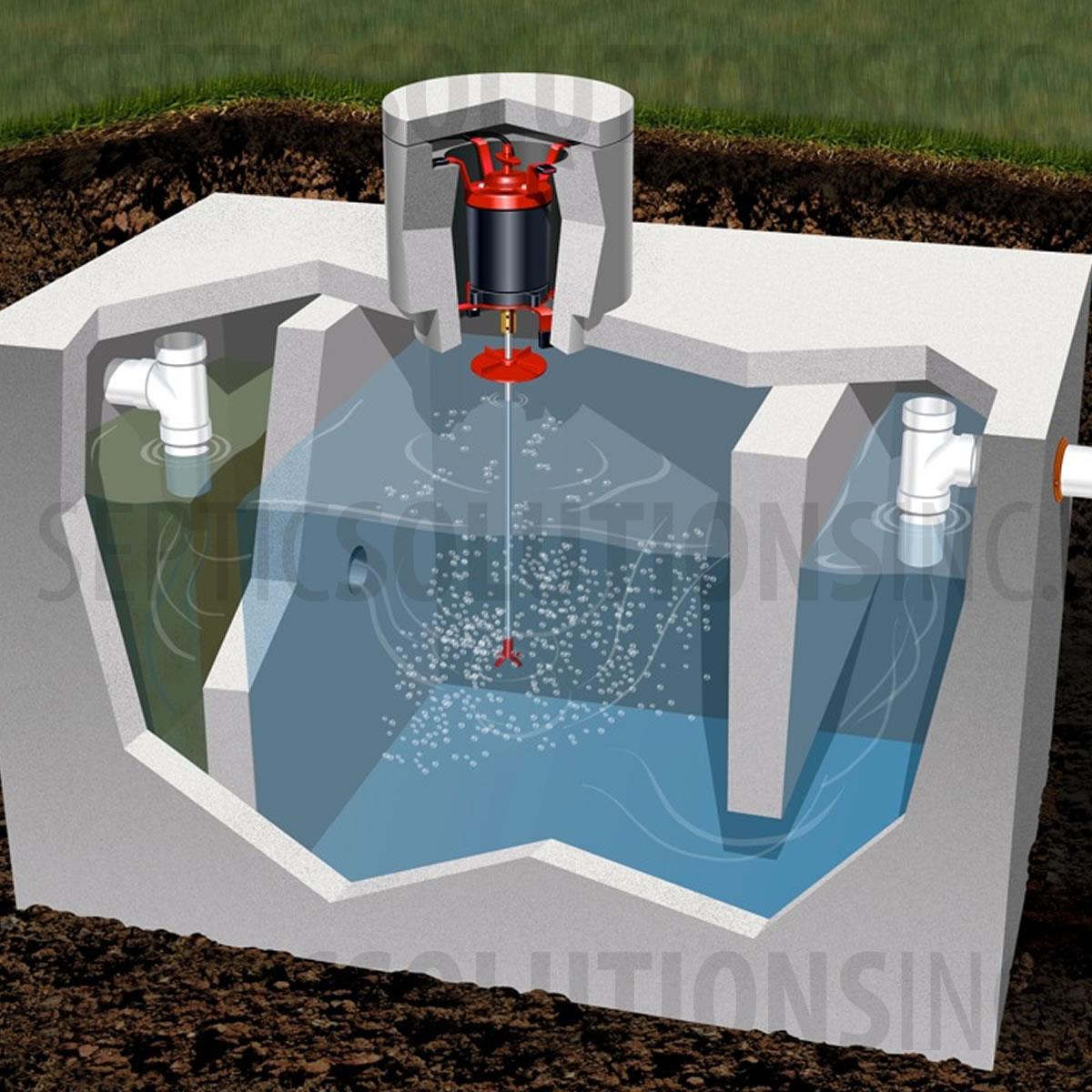

      The new aspirator design is extremely important. The 4-prong design promotes better stirring action and more oxygen diffusion in the tank. The longer prongs push air bubbles at a higher volume, deeper into the liquid waste, providing a much better aeration effect versus the "old-style" aspirator tips. The photo to the right shows the "old-style" (pictured left) next to the new Aerodynamic Aspirator (pictured right).

      Without enough oxygen your aerobic system will not produce the high quality of effluent required in most States. This "older-style" of an aspirator was abandoned by the Original Equipment Manufacturers some 20 years ago due to its inability to draw enough oxygen into the system. A properly working system is important to our environment.

      ULTRA-AIR® MODEL 735 RED FAQs

      Below are some frequently asked questions about the Ultra-Air Model 735 Septic Aerator. If you have further questions, call our customer support staff toll free at 1-877-925-5132 or email sales@septicsolutions.com

      Q: Septic Solutions offers Ultra-Air Model 735 RED and BLUE Models. What is the difference?

      A: The Ultra-Air Model 735 RED is designed as a compatible alternative replacement aerator for Jet Aeration systems. The RED units come with 12'' diameter top brackets and 9.5'' bottom brackets which fit the 10'' diameter motor opening of the Jet brand aeration system.

      The Ultra-Air Model 735 BLUE is designed as a compatible alternative replacement aerator for Norweco Singulair systems. The BLUE units come with 14'' diameter top brackets and 11.5'' bottom brackets which fit the 12'' diameter motor opening of the Norweco Singulair brand aeration system.

      Both the RED and BLUE units come in either a standard motor or the White Splash flood resistant motor.

      Q: What is the difference between the Standard and Flood Resistant units?

      A: The Standard unit uses a Baldor 1/4 HP electric motor. This motor is capable of running in the harsh environment of the septic tank, but it is not designed to ever be submerged in water.

      The White Splash Flood Resistant unit uses the same Baldor 1/4 HP electric motor, but this motor is specially sealed and can withstand being submerged for intermittent periods of time. If you have issues with the system backing up due to an outlet being plugged or a failed submersible pump, we would recommend the Flood Resistant unit.

      Q: I have a Jet Aerator Model 700LL. Will the Ultra-Air Model 735 RED work as a replacement?

      A: The Ultra-Air Model 735 RED is a compatible replacement aerator for Jet OEM Models 660, 665, and 700LL. The Ultra-Air Model 735 is compatible with all Jet brand aeration systems, but it is not considered OEM equipment and has not been tested or approved by NSF for use on Jet brand aeration systems.

      Q: Is the Ultra-Air Model 735 aerator an approved replacement?

      A: The Ultra-Air Model 735 has not been tested or approved by NSF. Only OEM equipment can carry the original NSF approval. Because the Ultra-Air Model 735 is an aftermarket replacement, it cannot be tested or approved by NSF.

      The specifications of the Ultra-Air Model 735 are comparable to that of the OEM equipment. See our Aerator Comparison Chart.

      It is up to the purchaser to check with their local regulatory authorities as to if they will accept an equivalent compatible replacement aerator or require an OEM replacement aerator.

      Q: Does the Ultra-Air Model 735 come with a cord and plug?

      A: Yes the Ultra-Air Model 735 motors have a 3 foot power cord with a standard 3 prong male plug.

      Q: Will the Ultra-Air Model 735 work with my existing control panel?

      A: Yes, in fact a fully functional control panel is required! The motor itself does not have any type of overload protection, so this protections is provided by a 4-7 amp breaker in the control panel. If the water level in the tank reaches the 6 inch diameter suds restrictor located just below the motor or the motor gets debris wrapped around the shaft, it places an additional amperage load on the motor. That additional amperage causes the motor to trip the 4-7 amp breaker in the alarm panel.

      A problem occurring in some systems that no longer have a functioning alarm to provide this necessary protection, is that without it the motor is operating directly from a normal 15 or 20 amp breaker. This can cause the motor to continue to run while submerged in water forcing the motor to turn the suds restrictor under water and further cause preventable damage to the motor.

      If your alarm isn’t working Septic Solutions have replacement alarms here https://www.septicsolutions.com/septic-parts/septic-aerators/jet-replacement

      Q: Do you sell replacement parts for the Ultra-Air Model 735?

      A: Yes. See our Replacement Motors page for motor only replacements and see our Replacement Parts page for available parts and components.

      Q: Should I run the Ultra-Air Model 735 continuously or on a timer?

      A: We recommend that the Ultra-Air aerator run continuously. In general, the life of the motor is better and the system functions better is the aerator is running continuously.

      The main reason that motor life is better when the aerator in ran continuously is condensation. When a motor is on a timer its heats up and cools down as it turns on and turns off. When the motor turns off and cools, condensations will build up in the motor and can cause it to fail prematurely.


      Jet is a Registered Trademark of Jet, Inc.

      Please Review Our Disclaimer before making any purchases

      Septic Solutions, Inc. purchased these Ultra-Air air pumps directly from Ultra-Air's authorized distributor. Septic Solutions, Inc. is offering these pumps and parts as alternative replacements that are comparable to your existing Jet aerator, Norweco aerator, or other Septic Tank aerator. The Ultra Air was not tested on an NSF Certified Aerobic system as is required in some areas. It is the sole responsibility of the purchaser to check with their local regulatory authorities to ensure compliance.

      THREE YEAR PRO-RATED WARRANTY

      The Ultra-Air® Model 735 comes with a 3 Year Warranty that is pro-rated after the first year. The replacement motor cost listed in the table below covers the electric motor only. After the first year, there is no warranty on the shaft, brackets, or other components.

      See the coverage schedule below:

      Time Period Warranty Coverage Replacement Motor Cost
      Year 1 100% $0.00
      Mo 13 - Mo 18 70% $125.00
      Mo 19 - Mo 24 60% $155.00
      Year 3 50% $197.50

      **The 3 Year Pro-Rated Warranty Applies Only To Purchases of This Product Made After 6-28-2017

      ULTRA- AIR® LIMITED WARRANTY

      Warranty claims are subject to the discretion of the original product manufacturer. This limited warranty applies only to Products that are not subject to accident, misuse, neglect, flood by sewer backup, fire or other external causes, unauthorized use, or alterations or unauthorized repair. This limited warranty is not transferable to any subsequent purchaser or recipient of the Product.

      The Ultra-Air® is warranted against defects in material and workmanship for a period of one year from the date of purchase. In no event shall Septic Solutions be liable for any consequential damages or any labor, material, freight or expense required replacing, correcting, or reinstalling the product. Septic Solutions' liability is limited to repair or replacement of the part.

      The customer shall be responsible to contact Septic Solutions, Inc. at 217-925-5992 between the hours of 7:30 am to 4:30 pm Central Standard Time to receive Return Authorization. To receive Authorization you will need to provide Septic Solutions, Inc. with proof of the original purchase. Please contact Septic Solutions, Inc. prior to returning any merchandise for warranty consideration.

      SHIPPING COSTS

      Customer assumes all costs in shipping to us, and we assume the cost in shipping back to the customer. All replacement/repaired products are shipped FedEx Ground or United States Postal Service unless a rush is requested. The cost of such a shipping upgrade is to be paid by the customer prior to shipment.

      WARRANTY PROCEDURE

      We suggest you contact our tech support team first at 217-925-5992 to determine whether the item is indeed defective before shipping. If the Product proves defective during the warranty period, and you follow the instructions that we will provide to you for returning the Product, we will, at our option, take one of the following actions: (1) replace the Product with either a new or a refurbished Product that is the same as or similar to the Product you purchased; (2) repair the Product using either new or refurbished parts.

      For those products shipped backed to Septic Solutions, Inc. under this warranty policy and no defects are found in the product the customer will be responsible for the shipping costs to return the item back to them.

      WARRANTY DISCLAIMER & LIMITATIONS OF LIABILITY TO ALL OUR CUSTOMERS

      All warranties are void if the product has been improperly modified, applied, or installed, subjected to misuse or abuse. Except as stated herein, Septic Solutions, Inc. disclaims any warranties express or implied, including the warranty of merchantability or warranty of fitness for a specific purpose or non-infringement of intellectual property rights. Septic Solutions, Inc. also disclaims any Liability for claims arising out of product misuse, improper product selection, improper installation, product modification, misrepair or misapplication.

      PRODUCT COMPLIANCE & SUITABILITY

      Jurisdictions have varying laws, codes and regulations governing construction, installation, and/or use of products for a particular purpose. Certain products may not be available for sale in all areas. Septic Solutions, Inc. does not guarantee compliance or suitability of the products it sells with any laws, codes or regulations, nor does Septic Solutions, Inc. accept responsibility for construction, installation and/or use of a product. It is customer's responsibility to review the product application and all applicable laws, codes and regulations for each relevant jurisdiction to be sure that the construction, installation, and/or use involving the products are compliant.
