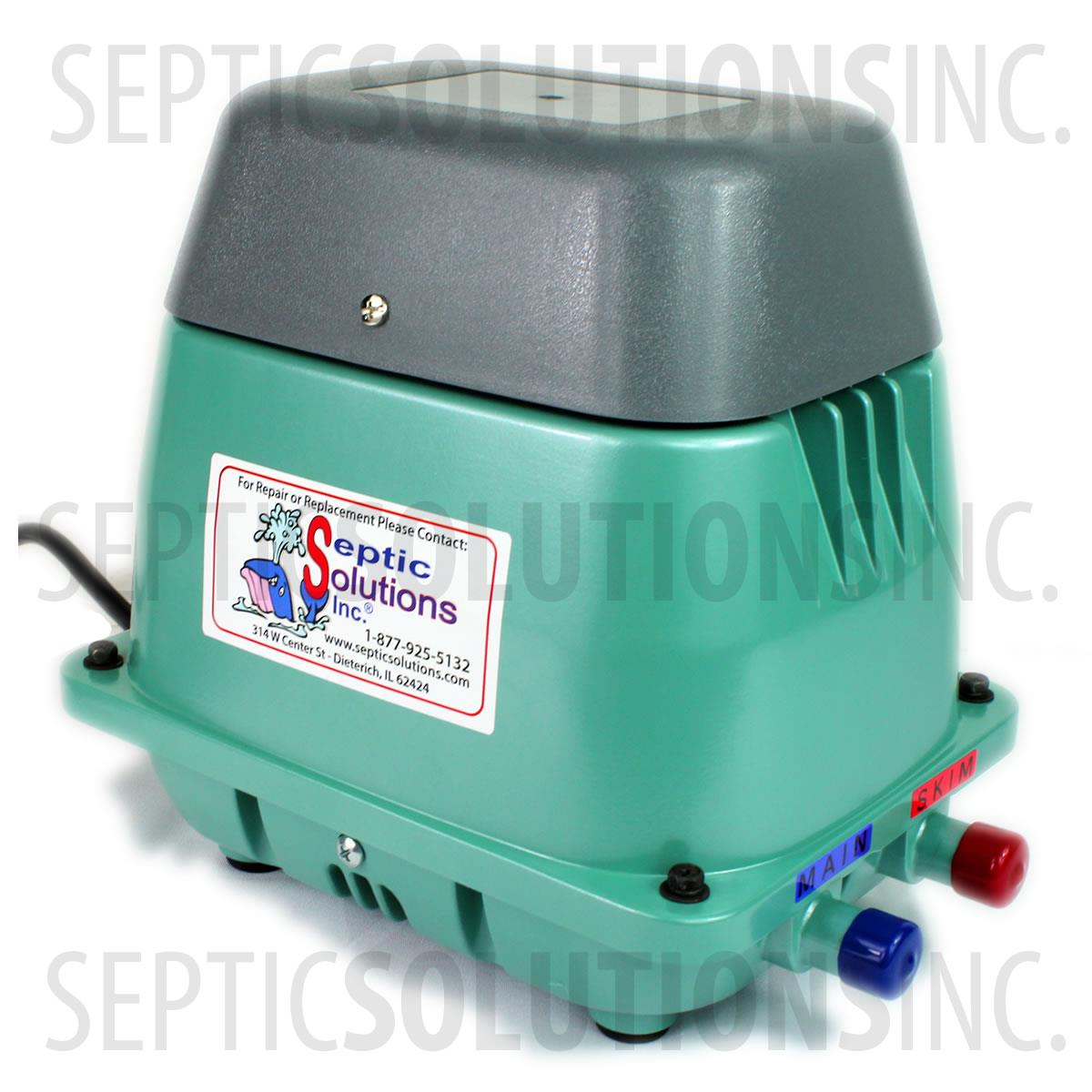

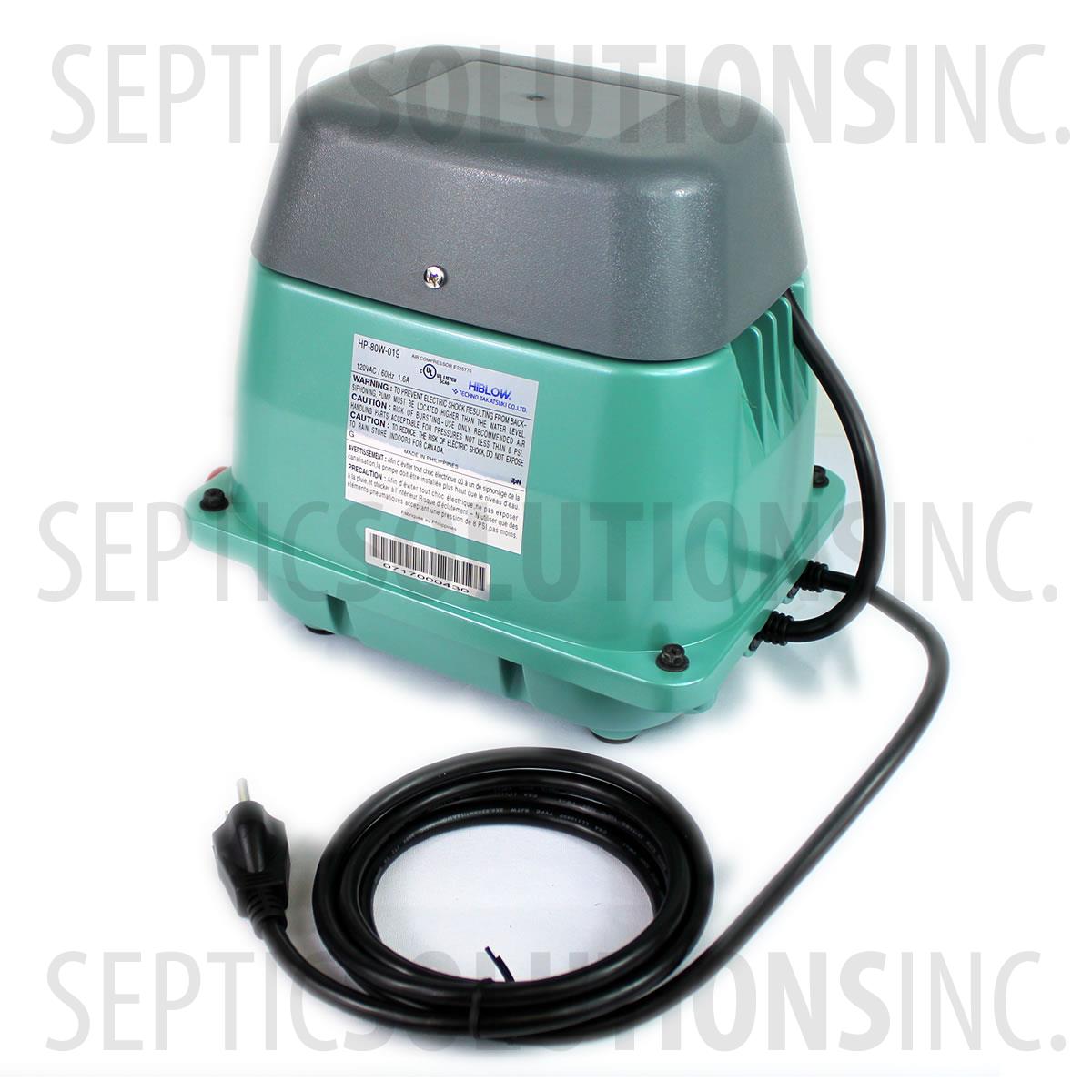

Hiblow HP-80W Dual Port Septic Air Pump

Print

The HIblow HP-80W is a dual port linear septic air pump. This pump has a "MAIN" and a "SKIM" discharge port. There is a timer control unit under the top cover that puts air through the "SKIM" port for a few minutes out of every day. This is compatible with AquaKlear and Enviro-Flo systems that utilize dual port aerators.

In Stock

$495.00MSRP: $600.00

Item #:HP80W

Manufacturer: Hiblow

HIBLOW HP-80W DUAL PORT SPECIFICATIONS

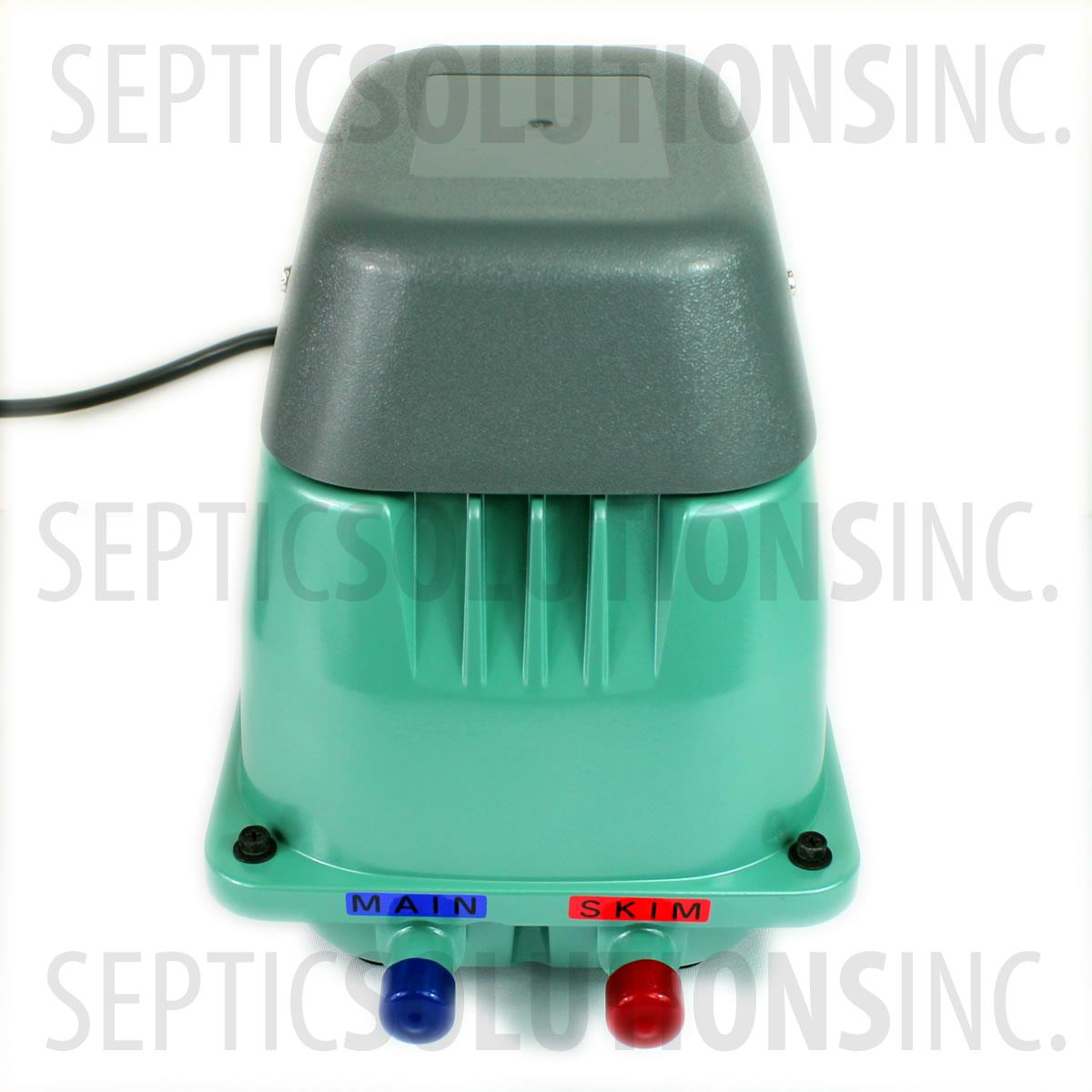

  • Two Ports - MAIN and SKIM
  • 3.7 cfm Open Flow
  • 80 Liters of Air per Minute @ 2.13 PSI
  • 3.6 PSI Maximum Continous Pressure
  • 120 VAC, 60 Hz, 1.6A, 71 Watts
  • 36 dBA @ 1 Meter
  • Dimensions: 9.3'' L x 7.1'' W x 7.8'' H
  • Condition: NEW
  • Includes Rubber 90s and Alarm Connection Fittings
  • One Year Warranty

FREQUENTLY ASKED QUESTIONS

What is the purpose of the dual ports?

The MAIN port provides continuous aeration to the septic tank’s primary chamber, while the SKIM port, activated by a timer, supports periodic skimming or backwash functions for enhanced effluent treatment.

How long do the diaphragms last?

Diaphragms typically last 3–6 years, depending on environmental conditions (shorter in hot climates, longer in cooler ones). The pump can be rebuilt 2–3 times.

Can the HP-80W be installed outdoors?

Yes, it’s UL-rated for outdoor use, but a vented housing is recommended to protect against weather and debris.

Can I hardwire the pump to a control panel?

Yes, you can cut the three-prong plug and strip the wires (Hot: Black, Neutral: White, Ground: Green) for hardwiring without voiding the warranty.

What happens if red dust appears inside the pump?

Red dust indicates internal wear, and the pump may need replacement rather than rebuilding. Contact Septic Solutions for guidance.

Hiblow Air Pumps from Septic Solutions

Hiblow HP-80W Dual Port Septic Air Pump Downloadable Documents

FileName
HP80W_ManualViewDownload
HP80W_SpecViewDownload
