• SPI BIO-HWAP Economy Simplex Control Panel (230V, 0-20FLA) - Part Number 50B016A

SPI BIO-HWAP Economy Simplex Control Panel (230V, 0-20FLA)

Print

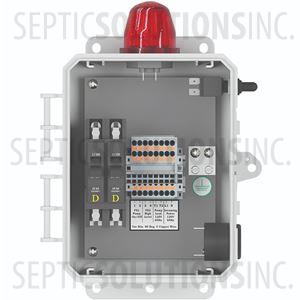

The BIO-HWAP 230V control panel is designed for use with a submersible pump. This control panel includes separate circuits for the high water alarm and submersible pump.

Made In USANEMA 4XUL Listed

In Stock

$415.00MSRP: $495.00

Item #:50B016A

Manufacturer: SPI

BIO HWAP Simplex Panel Specifications

  • 230VAC, 0-20FLA
  • 20 Amp 230V Pump Circuit
  • 10 Amp 120V Alarm Circuit
  • High Water Alarm
  • Externally Mounted High Decibel Alarm Buzzers
  • 360 Degree Red High Water Alarm Light
  • Externally Mounted Alarm Run/Test/Mute Switch
  • Dimensions: 10.25'' x 10.25'' x 4.00''
  • NEMA 4X Enclosure. UL 508A Listed

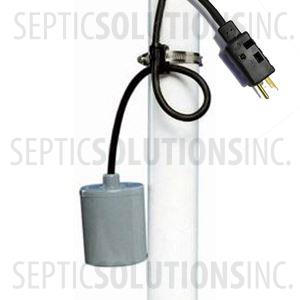

  • Pump Duty Float Switch & High Level Alarm Float Switch Sold Separately
  • Two Year Limited Warranty

BIO HWAP Simplex Panel Applications

The BIO HWAP Simplex Control Panel is a basic control box that contains two circuits: A 10 Amp circuit for the high level alarm functionality, and a 20 Amp Circuit for the 230V submersible pump. Float switches to run the submersible pump and the high level alarm are sold separately.

SPI BIO-HWAP 230V Economy Simplex Control Panel Downloadable Documents

FileName
50b016a-hwa88-230vViewDownload
