  • Franklin Electric Bottom-Suction High Head Effluent Pump - 1/2 HP, 20 GPM - Part Number 90302005

Franklin Electric Bottom-Suction High Head Effluent Pump - 1/2 HP, 20 GPM


The Franklin Electric C1 Series High Head Effluent submersible water pump is designed for use with sprinkler systems, drip systems, and other high pressure pumping applications. This unit is bottom-suction, meaning it intakes water from the bottom of the unit. Compatible replacement for the Sta-Rite Dominator and Clearstream P20D.

In Stock

$350.00MSRP: $389.00

Item #:90302005

Manufacturer: Franklin Electric

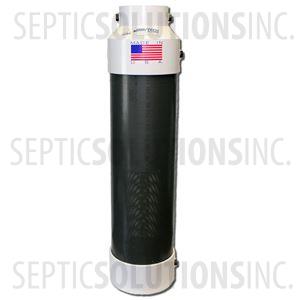

PumpSaver™ Filter Screen:

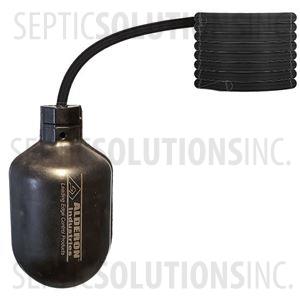

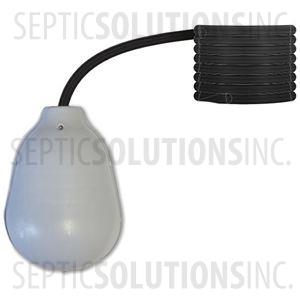

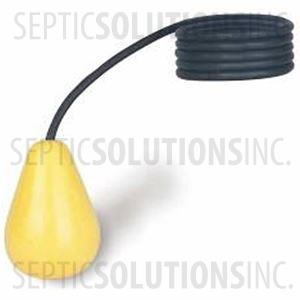

Float Switch Options:

Franklin Electric C1 Specifications

  • Franklin Electric Model 20C1-05P4-2W115
  • 20 Gallons Per Minute, 150 Feet of Head (65 psi)
  • 1/2 HP, 115V, 60Hz, 10.0A, 1 Ph, 3450 RPM
  • 1-1/4 NPT Female Threaded Discharge
  • Bottom Suction with Stainless Steel Screen
  • 5'' Removable Base For Secure and Reliable Mounting
  • Heavy Duty 2-Wire With Ground Cord Attached (10 Feet)
  • Built-In Check Valve
  • Dimensions: 26'' L x 3.75'' Diameter
  • Condition: Brand New!
    (The Standard Manufacturer's Warranty is one year and Septic Solutions' warranties this unit in full for an additional year)

Franklin Electric C1 Applications

The Franklin C1 Series High Head Effluent Pumps are most commonly used in high pressure water removal applications such as spray irrigation or underground drip irrigation. These submersible pumps can handle only clean, treated effluent with no solids. They are normally installed after an Aerobic Treatment System.

  • Spray Irrigation
  • Underground Drip Systems
  • Mound Systems
  • High Pressure or Long Distance Pumping
  • Can Only Handle Clear Water or Treated Wastewater
  • Commonly Used After Aerobic Septic Systems
  • Replaces the Sta-Rite Dominator 20DOM05121
  • Replaces the Clearstream P20D

The Franklin Electric C1 Series High Head Effluent pump is a bottom suction unit. This means the pump will intake water at the bottom of the unit. Although this is a more risky setup in an aerobic system design, some systems use the bottom suction units and elevate them off of the bottom of the tank using a PVC pipe spacer. If this is the kind of set up you are replacing, the Franklin Electric C1 is your best choice.

Franklin Bottom-Suction High Head Submersible Pump (20 GPM) Downloadable Documents
