• 500 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Sewage Grinder Pumps and Alternating Control Panel - Part Number 500FPT-LSG202DUP

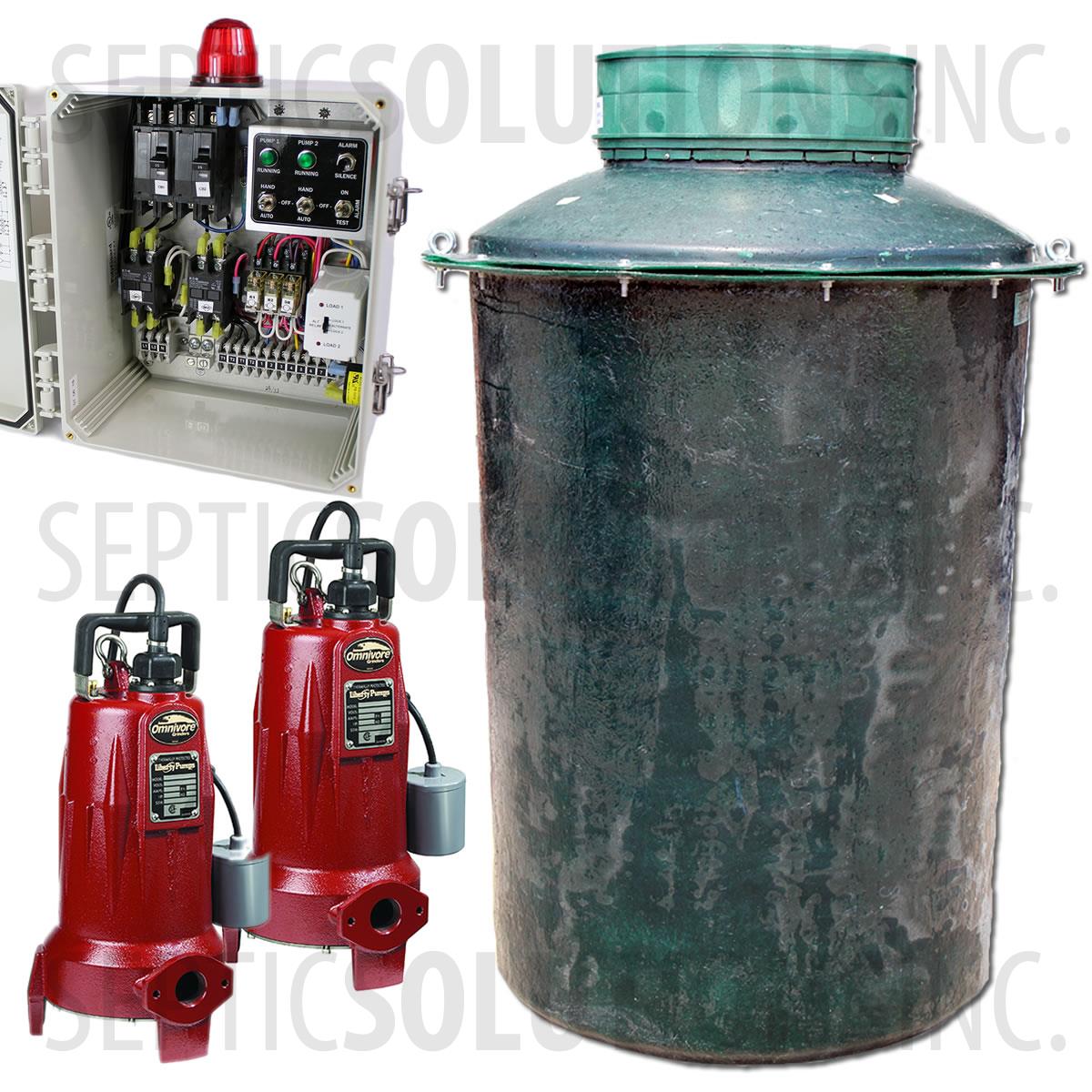

500 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Sewage Grinder Pumps and Alternating Control Panel

Print

70'' x 67'' BASIN, 2.0 HP SEWAGE GRINDER PUMP, 110 FT OF HEAD, 50 GPM

This 500 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground grinder pump station. This system is designed for raw sewage pumping applicaitons. The typical application for this package is to pump sewage and wastewater from a residential or commercial property to a city sewer.

PUMP STATION FEATURES:

  • 70'' x 67'' Basin with 500 Gallon Capacity
  • (2) 2.0 HP Liberty Grinder Pumps with 1-1/2'' Discharge
  • 30 GPM @ 80ft of Head, Shut Off: 110ft of Head
  • 230VAC, 15.0A, 60Hz, 1 Phase
  • SPI SDC12B Duplex Control Panel with Alarm

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER. SHIPPING IS APPROXIMATELY $300-$600 DEPENDING ON THE DELIVERY LOCATION.

Built To Order Within 1 Business Day

$5350.00MSRP: $7490.00

Item #:500FPT-LSG202DUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT. PLEASE CALL 1-877-925-5132 FOR A QUOTE OR TO PLACE AN ORDER.

500 GALLON FIBERGLASS TANK

  • 70'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 1-1/2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LIBERTY 2.0 HP SEWAGE GRINDER PUMP

  • Model LSG202A
  • 2.0 HP, 230VAC, 15.0A, 60 Hz
  • 30 GPM @ 80ft of Head Pressure
  • Shut Off: 110ft, Max GPM: 50
  • Heavy Duty Cast Iron Construction
  • Patented V-Slice Cutter Technology
  • Shreds Difficult Solids Such As Feminine Products, Wipes, Rags, Etc.
  • Includes Quick-Disconnect 25' Power Cord with Plug
  • Includes 25' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Internal Capacitors - No Control Panel Required!
  • Dimensions: 9.5'' L x 9.5'' W x 19.5'' T
  • Three Year Warranty

#50A506 DUPLEX CONTROL PANEL

  • 120/240VAC, Single Phase, 0-20 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Two 2-pole definite purpose contactors (100,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Two Year Limited Warranty
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

Liberty Omnivore Submersible Sewage Grinder Pumps

500 Gallon Duplex Pump Station with (2) 2.0 HP Grinder Pumps Downloadable Documents

FileName
500FPT_SpecViewDownload
50A506_SpecViewDownload
LSG202A_FeaturesViewDownload
