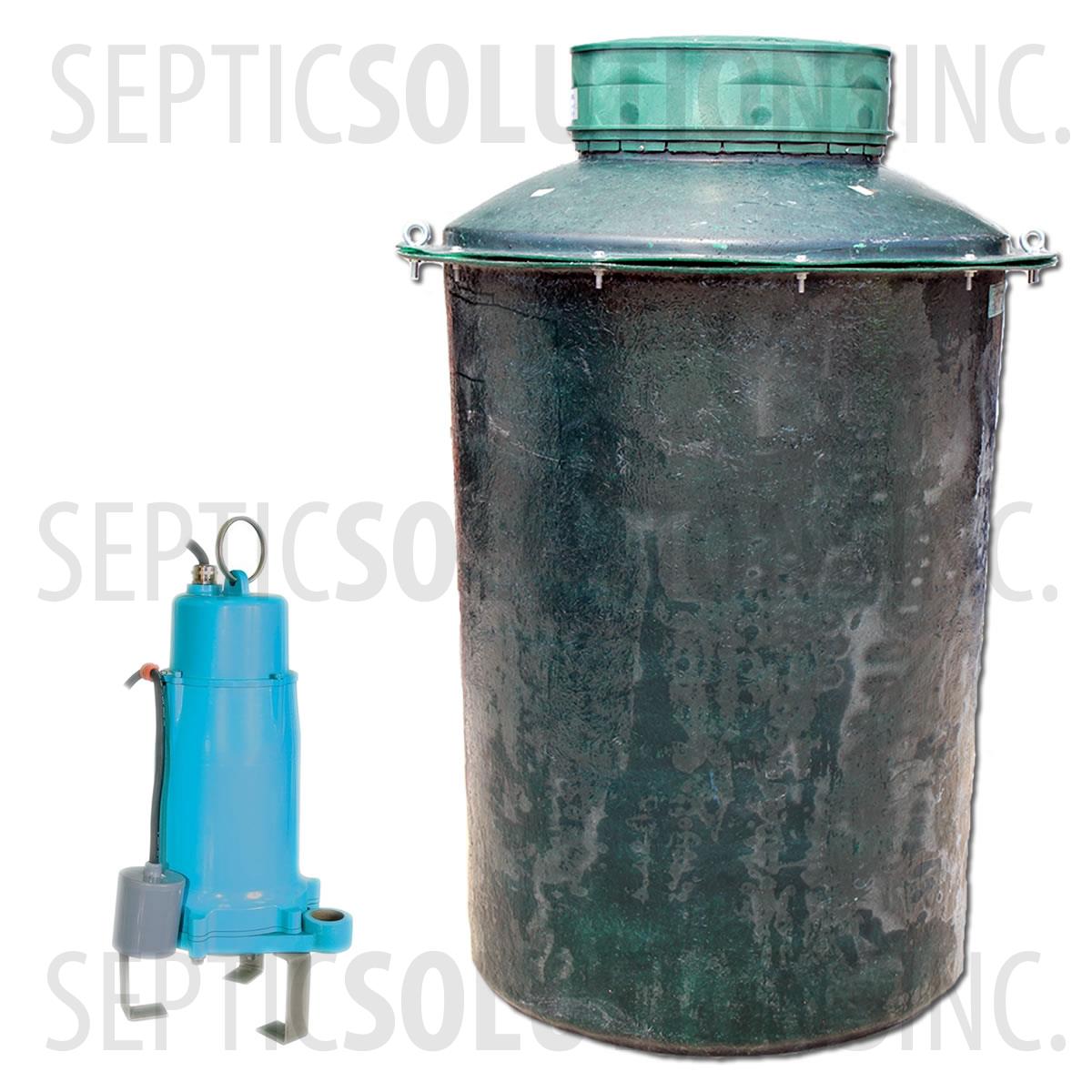

200 Gallon Pump Station with 2.0 HP Sewage Grinder Pump

FEATURES & BENEFITS

• Pre-Assembled & Ready to Install — Arrives fully assembled with pump, basin, access cover, discharge piping, and mechanical float switch for fast installation.
• Heavy-Duty Fiberglass Construction — 200-gallon tank (48" diameter x 69" tall) engineered for direct burial with excellent corrosion resistance and structural strength.
• Little Giant 2.0 HP Grinder Pump — Efficiently grinds tough solids (wipes, rags, feminine products, etc.) into a fine slurry for reliable transport through small-diameter piping.
• High-Performance Output — Delivers up to 32 GPM with a maximum head of 130 ft.
• Easy Access — Includes a 24" diameter Polylok access cover; optional risers available to bring service to grade.
• Reliable Automatic Operation — Includes a wide-angle mechanical float switch with piggyback plug.

TECHNICAL SPECIFICATIONS

200-Gallon Fiberglass Tank

• Dimensions: 48" Diameter x 69" Tall
• Heavy-duty fiberglass for direct burial
• 24" Polylok access cover
• 4" inlet with grommet
• 1-1/2" SCH 40 discharge pipe sealed with grommet
• Cord seals for power and float switch

Little Giant 2.0 HP Sewage Grinder Pump

• 2.0 HP, 230V, 13.9A, 60 Hz, single phase, 3450 RPM
• Performance: 30 GPM @ 60 ft head • Max 32 GPM • Shut-off: 130 ft
• 1-1/2" NPT vertical female discharge
• Heavy-duty cast iron construction with stainless steel components
• Shreds difficult solids such as feminine products, wipes, rags, etc.
• Includes mechanical float switch for automatic operation
• Internal capacitors — no control panel required
• Stainless steel leg kit included
• Dimensions: 11.50" L x 9.63" W x 21.56" H
• 2-Year Manufacturer Warranty

Important Note: Grinder pumps are designed for pumping to a city sewer main or force main. They are not recommended for pumping directly into a septic tank (use a sewage ejector pump for septic applications).

APPLICATIONS

• Homes with basements or below-grade bathrooms
• Retrofitting existing properties to connect to city sewer
• New construction where gravity flow is not possible
• Challenging lots requiring high head pressure
• Residential and light commercial wastewater applications with tough solids

WHAT'S INCLUDED

• 200-gallon fiberglass pump basin
• Little Giant 2.0 HP grinder pump
• Mechanical float switch
• 24" Polylok access cover
• Pre-installed discharge piping and seals
• All necessary grommets and hardware

RELATED ITEMS SOLD SEPARATELY

These items are considered optional but are often added to our pump stations:

• Alarm and/or Control Panel (Choose Only One of These Options):
  • Observer 500 High Water Alarm
  • Legacy Controls LE-4003 Simplex Control Panel
• Other Optional Items:
  • Check Valve
  • Additional Risers

This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
