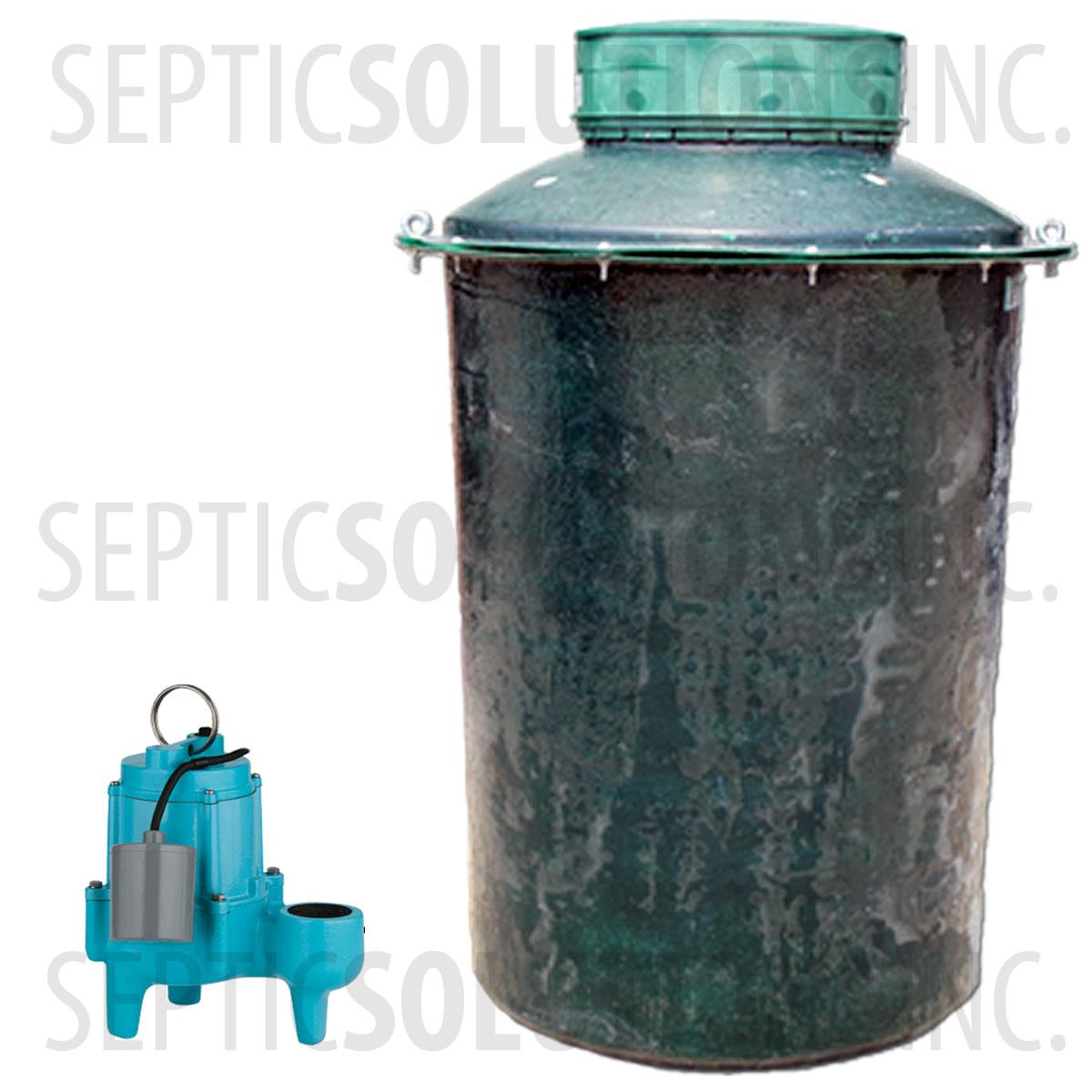

200 Gallon Simplex Fiberglass Pump Station with 4/10 HP Sewage Ejector Pump

FEATURES & BENEFITS

• Pre-Assembled & Ready to Install — Arrives fully assembled with pump, basin, access cover, discharge piping, and mechanical float switch for fast installation.
• Heavy-Duty Fiberglass Construction — 200-gallon tank (48" diameter x 69" tall) engineered for direct burial with excellent corrosion resistance and structural strength.
• Little Giant 4/10 HP Sewage Ejector Pump — Handles 2" solids and efficiently pumps raw sewage and wastewater.
• Strong Performance — Delivers up to 100 GPM with a maximum head of 20 ft.
• Easy Access — Includes a 24" diameter Polylok access cover; optional risers available to bring service to grade.
• Reliable Automatic Operation — Includes a wide-angle mechanical float switch with piggyback plug.

TECHNICAL SPECIFICATIONS

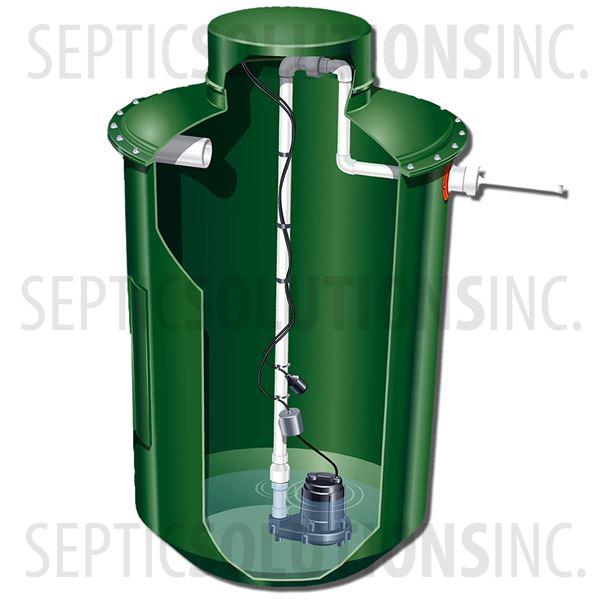

200-Gallon Fiberglass Tank

• Dimensions: 48" Diameter x 69" Tall
• Heavy-duty fiberglass for direct burial
• 24" Polylok access cover
• 4" inlet with grommet
• 2" SCH 40 discharge pipe sealed with grommet
• Cord seals for power and float switch

Little Giant 4/10 HP Sewage Ejector Pump (Model 9SC-CIA-RF)

• 4/10 HP, 115V, 8.0A, 60 Hz, single phase
• Performance: 80 GPM @ 10 ft head • Max 100 GPM • Shut-off: 20 ft
• 2" NPT vertical female discharge
• Handles 2" solids
• Heavy-duty cast iron construction
• Includes 20' mechanical float switch with piggyback plug
• 3-Year Manufacturer Warranty

APPLICATIONS

• Homes with basements or below-grade bathrooms
• Pumping wastewater to a septic tank or city sewer
• New construction where gravity flow is not possible
• Retrofitting existing properties
• Residential sewage lift stations

WHAT'S INCLUDED

• 200-gallon fiberglass pump basin
• Little Giant 4/10 HP 9SC sewage ejector pump
• Mechanical float switch
• 24" Polylok access cover
• Pre-installed discharge piping and seals
• All necessary grommets and hardware

RELATED ITEMS SOLD SEPARATELY

These items are considered optional but are often added to our pump stations:

• Alarm and/or Control Panel (Choose Only One of These Options):
  • Observer 500 High Water Alarm
  • Alderon Pump Guard Economy Simplex Control Panel
  • Legacy Controls LE-4003 Simplex Control Panel
• Other Optional Items:
  • Check Valve
  • Additional Risers

This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
