• 200 Gallon Simplex Fiberglass Pump Station with 1.0 HP Liberty Sewage Ejector Pump - Part Number 200FPT-LE102

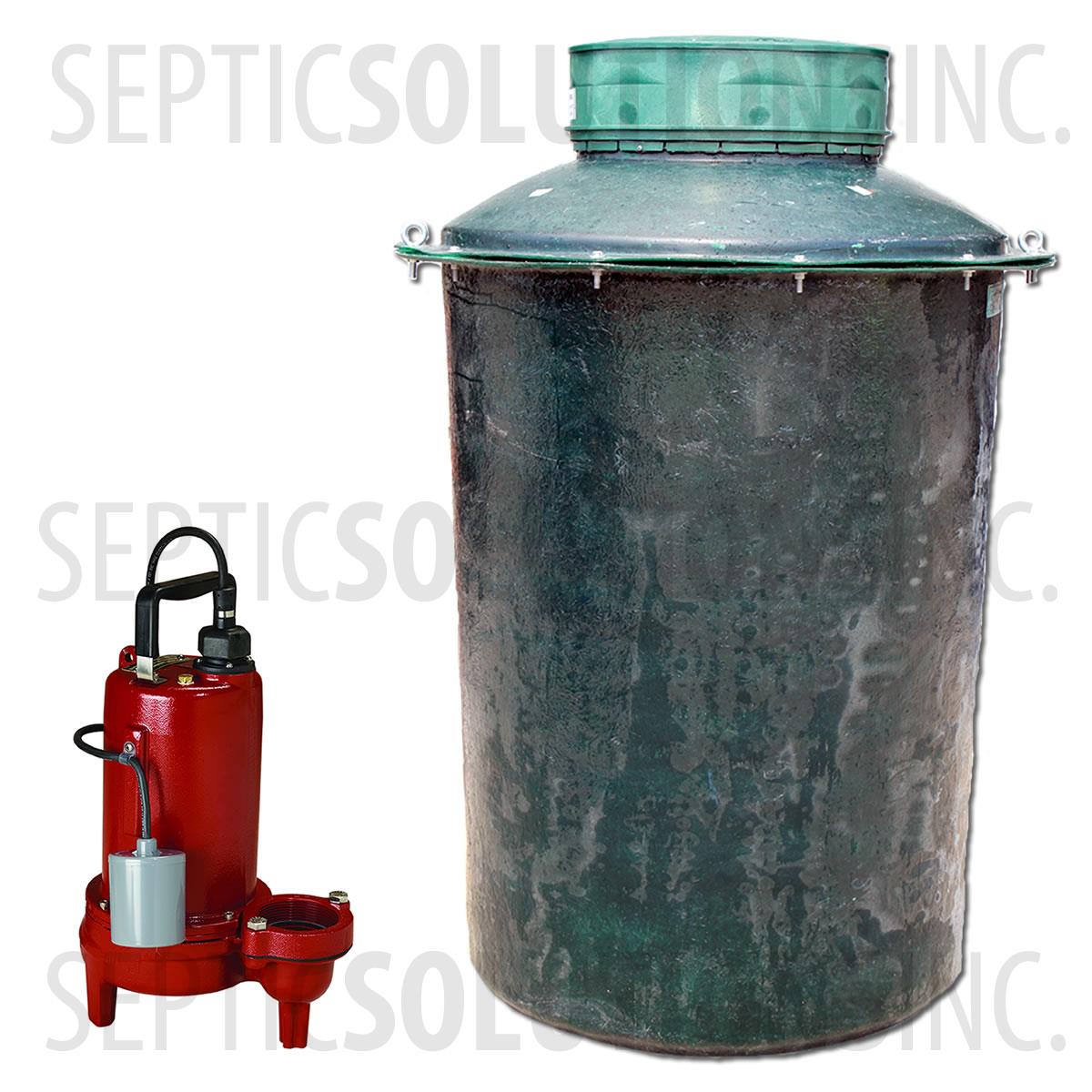

200 Gallon Simplex Fiberglass Pump Station with 1.0 HP Liberty Sewage Ejector Pump

Print

48'' x 67'' BASIN, 1.0 HP SEWAGE PUMP, 39 FT OF HEAD, 190 GPM

This 200 gallon fiberglass pump station comes pre-assembled and ready to install with all of the components needed to install an outdoor pump station. The Liberty LE102 sewage ejector pump included in this unit is designed for raw sewage pumping applications. The typical application for this package is to pump sewage and wastewater from a household to the septic system or city sewer.

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Assembled In USA

Built To Order Within 1-2 Business Days

$2875.00MSRP: $3349.00

Item #:200FPT-LE102

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

200 GALLON FIBERGLASS TANK

  • 48'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LIBERTY 1.0 HP SEWAGE EJECTOR PUMP

  • Model LE102A
  • 1.0 HP, 230VAC, 8.0A, 60 Hz
  • 120 GPM @ 20ft of Head Pressure
  • Shut Off: 39ft, Max GPM: 190
  • 2'' NPT Vertical Female Discharge, 2'' Solids Handling
  • Heavy Duty Cast Iron Construction
  • 2-Vane Cast Iron Impeller
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 12.5'' L x 9.0'' W x 15.3'' T
  • Three Year Warranty

RELATED ITEMS SOLD SEPARATELY

These items are considered optional but are often added to our pump stations:

This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

200 Gallon Pump Station with 1.0 HP Liberty Sewage Ejector Pump Downloadable Documents

FileName
200FiberglassTank_SpecViewDownload
LE102A_FeaturesViewDownload
LE102A_SpecificationsViewDownload
Pump-Station-Backfill-InstructionsViewDownload
