500 Gallon Pump Station with 1.0 HP Residential Grinder Pump
Print70" Diameter x 72" Tall Basin • 50 ft Max Head • Up to 46 GPM • Pre-Assembled Residential Grinder Lift Station

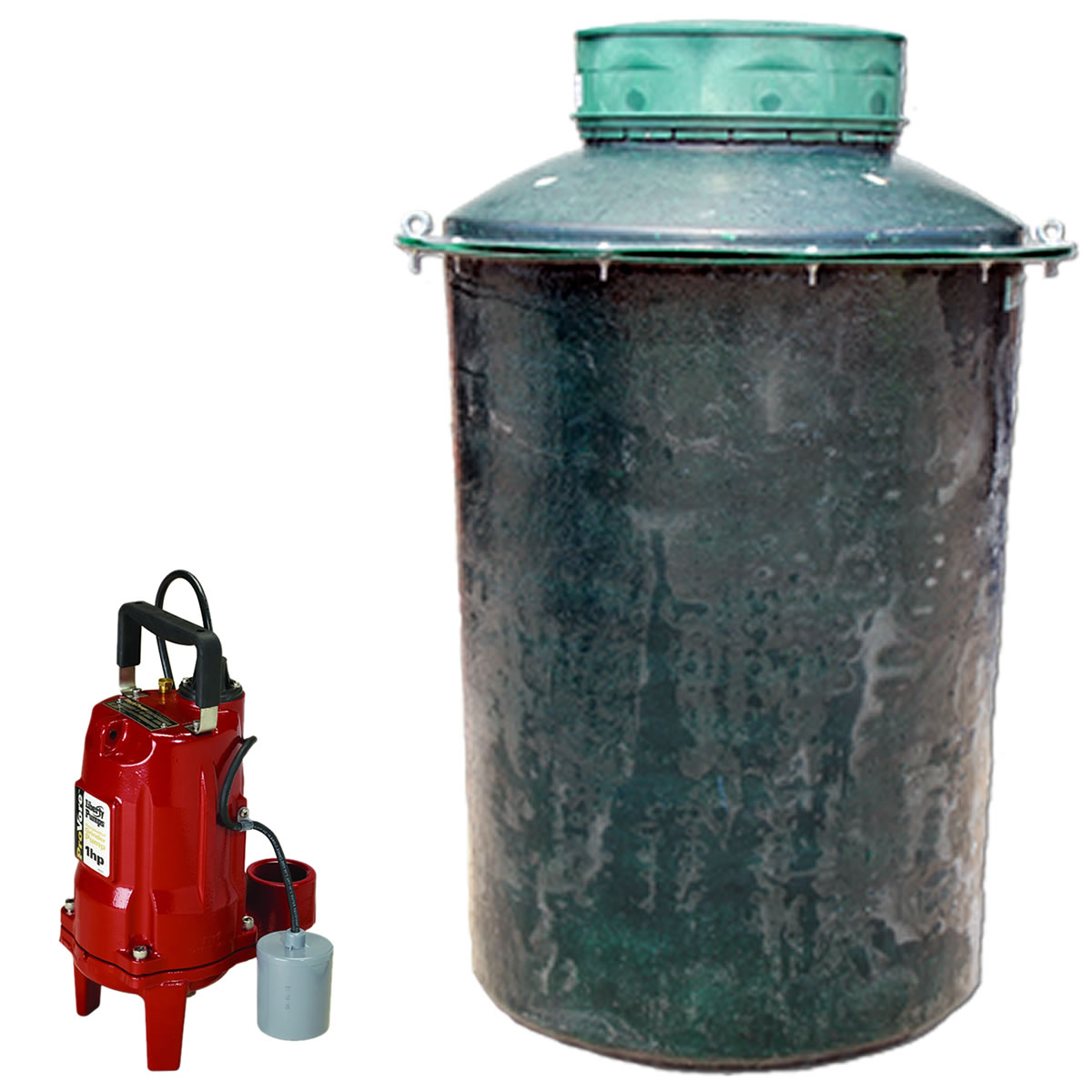

This 500-gallon simplex grinder pump station is a complete, ready-to-install solution designed for larger residential applications requiring reliable pumping of raw sewage. It features a spacious fiberglass basin paired with the Liberty ProVore 1.0 HP grinder pump (PRG101A), making it ideal for homes with basements, multiple below-grade fixtures, or sites where gravity drainage to the sewer main is not possible.
Built To Order Within 1-2 Business Days
Item #:500FPT-PRG1
Manufacturer: Septic Solutions
FEATURES & BENEFITS
- Pre-Assembled & Ready to Install — Arrives fully assembled with pump, basin, access cover, discharge piping, and mechanical float switch for fast installation.
- Heavy-Duty Fiberglass Construction — 500-gallon tank (70" diameter x 72" tall) engineered for direct burial with excellent corrosion resistance and structural strength.
- Liberty ProVore 1.0 HP Grinder Pump — Patented V-Slice cutter technology efficiently grinds tough solids (wipes, rags, feminine products, etc.) into a fine slurry for reliable transport.
- Solid Performance — Delivers up to 46 GPM with a maximum head of 50 ft.
- Easy Access — Includes a 24" diameter Polylok access cover; optional risers available to bring service to grade.
- Reliable Automatic Operation — Includes a wide-angle mechanical float switch with piggyback plug.
TECHNICAL SPECIFICATIONS
500-Gallon Fiberglass Tank
- Dimensions: 70" Diameter x 72" Tall
- Heavy-duty fiberglass for direct burial
- 24" Polylok access cover
- 4" inlet with grommet
- 2" SCH 40 discharge pipe sealed with grommet
- Cord seals for power and float switch
Liberty 1.0 HP ProVore Grinder Pump (Model PRG101A)
- 1.0 HP, 115V, 12.0A, 60 Hz, single phase
- Performance: 30 GPM @ 25 ft head • Max 46 GPM • Shut-off: 50 ft
- 2" NPT vertical female discharge
- Patented V-Slice hardened stainless steel cutter system
- Heavy-duty cast iron construction
- Includes 10 ft quick-disconnect power cord with plug
- Includes 10 ft wide-angle mechanical float switch with piggyback plug
- Dimensions: 11.1" L x 7.2" W x 17.6" H
- 3-Year Manufacturer Warranty
Important Note: Grinder pumps are designed for pumping to a city sewer main or force main. They are not recommended for pumping directly into a septic tank (use a sewage ejector pump for septic applications).
APPLICATIONS
- Larger homes with basements or below-grade bathrooms
- Retrofitting existing properties to connect to city sewer
- New construction where gravity flow is not possible
- Challenging lots requiring reliable grinder performance
- Residential wastewater applications with tough solids
WHAT'S INCLUDED
- 500-gallon fiberglass pump basin
- Liberty 1.0 HP PRG101A ProVore grinder pump
- Wide-angle mechanical float switch
- 24" Polylok access cover
- Pre-installed discharge piping and seals
- All necessary grommets and hardware
RELATED ITEMS SOLD SEPARATELY
These items are considered optional but are often added to our pump stations:
- Alarm and/or Control Panel (Choose Only One of These Options):
- Other Optional Items:
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
