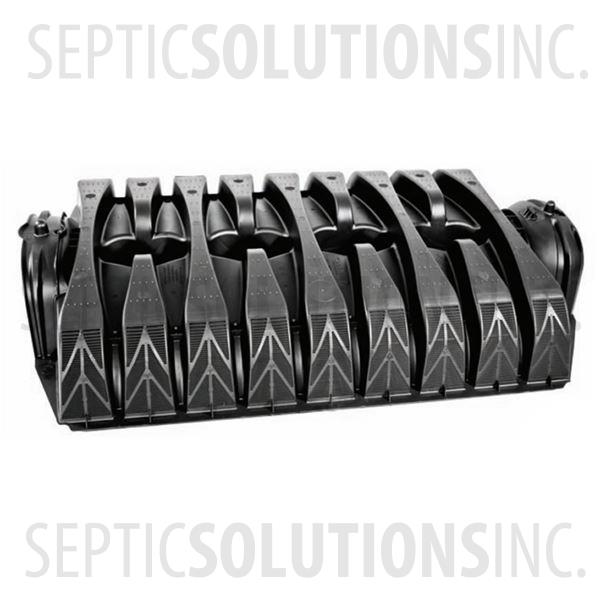

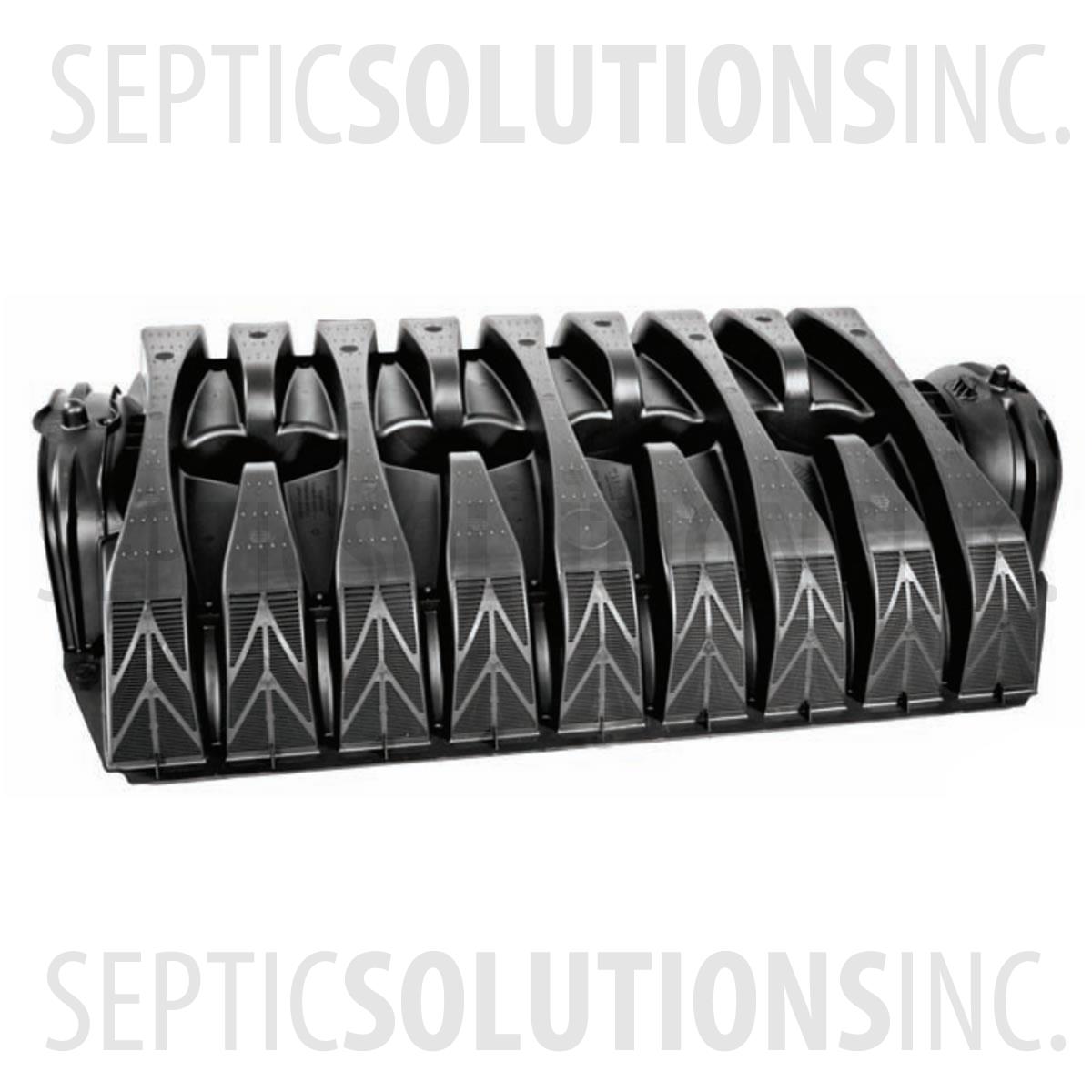

• Infiltrator Quick 4 Plus Low Profile Standard Leach Field Chambers (34" x 53" x 8") - Part Number Q4+STDLP

Infiltrator Quick 4 Plus Low Profile Standard Leach Field Chambers (34" x 53" x 8")

Print

The Quick 4 Plus Standard Low Profile Chamber fits in a 36'' wide trench and is 4'' shorter in height than the Quick 4 Standard model which allows for shallower installation.

ONLY AVAILABLE TO ILLINOIS CUSTOMERS

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
Call For Pricing

Item #:Q4+STDLP

Manufacturer: Infiltrator

THIS PRODUCT MUST BE PICKED UP AT OUR FACILITY OR SHIPPED WITHIN THE STATE OF ILLINOIS

PLEASE NOTE: INFILTRATOR MANUFACTURES MANY DIFFERENT SIZES OF LEACH FIELD CHAMBERS. MAKE SURE YOU CHECK WITH YOUR LOCAL DESIGNER OR REGULATORY AUTHORITY TO ENSURE THAT THIS SIZE IS ACCEPTED BY YOUR JOB REQUIREMENTS.

Dimensions: 344'' x 53'' x 8''

Designed to work in a 36'' wide trench

Overall effective length: 4 feet

Storage Capacity: 32 Gallons per Chamber

Why Choose Plastic Leachfield Chambers?

Chamber systems are easy to install. Engineered for strength and performance, they have greater design flexibility including a smaller footprint as compared with stone and pipe, and are made from recycled materials. These advantages of Infiltrator chambers add up to cost savings on labor, materials and time savings on the job.

Ease of Installation

Chamber System Installation Infiltrator chambers can be delivered to the site in a pickup truck and hand-carried into position. For most jobs, two people can install a system in less than half the time it takes for a comparable stone and pipe leachfield.

Cost Savings

No stone or geotextile is typically required, and chamber installations use less pipe. Installations are faster so you save on heavy equipment operation and eliminate the need for heavy trucks used to transport stone.

Superior Technology

  • A solid top prevents infiltration of rainwater and the intrusion of fines
  • Sidewall louvers allow lateral leaching and evapotransporation
  • An inspection port cutout permits monitoring and maintenance
  • Patented chamber interlocks with an advanced design connect chambers end-to-end with a precise fit
  • Advanced contouring connections allow chambers to avoid obstacles
  • Open bottom provides unobstructed soil interface, allowing up to 50% reduction in trench length

Low Pressure Dosing System Installation with Infiltrator Leach Field Chambers

Infiltrator Quick 4 Plus Low Profile Standard Chambers Downloadable Documents

FileName
Q4+STDLP_SpecViewDownload
