• Infiltrator IM Series Septic Tank - 540 Gallon Capacity - Part Number IM540

Infiltrator IM Series Septic Tank - 540 Gallon Capacity

Print

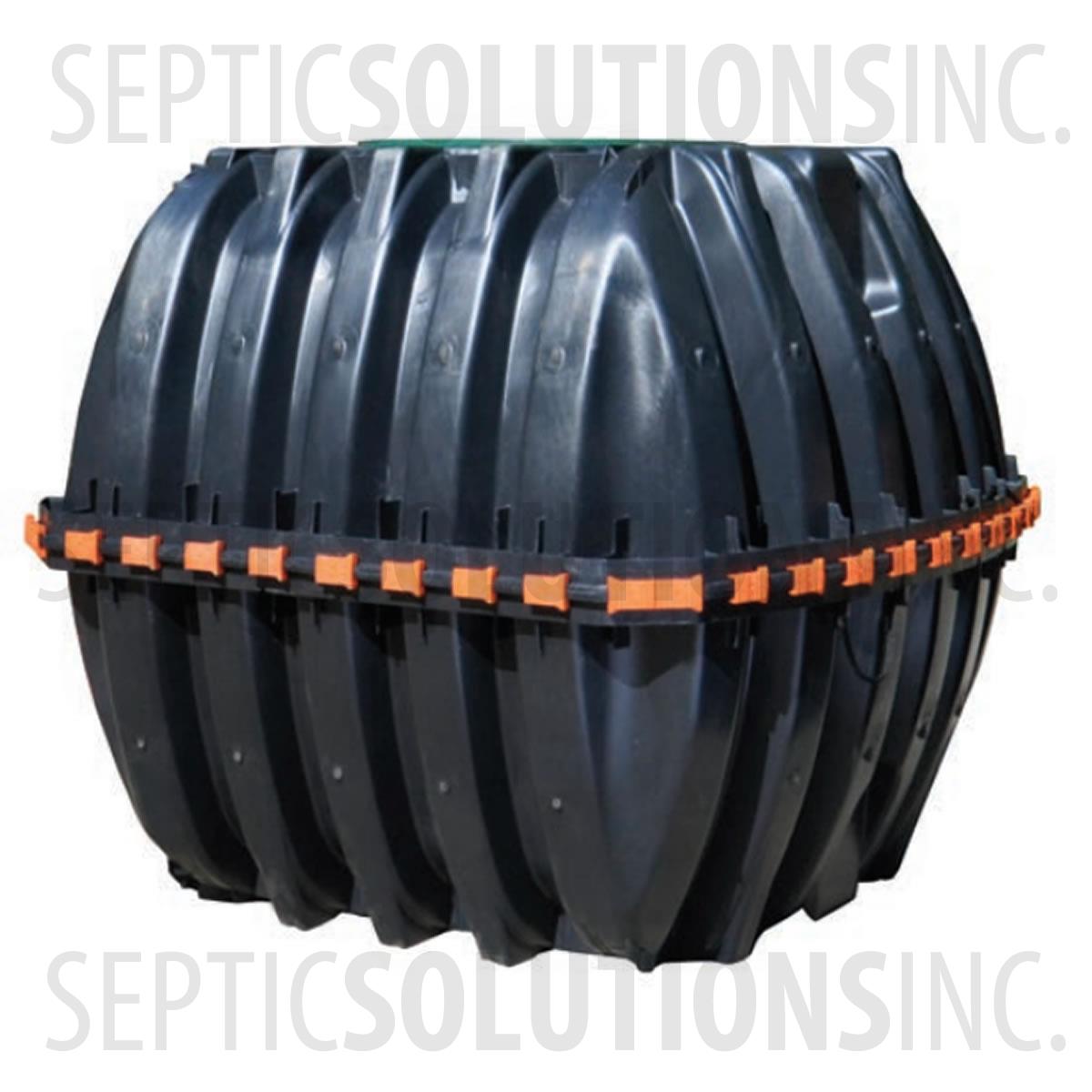

A revolutionary improvement in plastic septic tank design, the injection molded IM-540 offers exceptional long-term strength and is compatible with Infiltrator’s line of custom fit risers and heavy duty lids.

Total Storage Volume: 552 gal


Size: 64.9"L x 61.7"W x 54.6"H
One access port: 24"

Pick Up Only

THIS ITEM DOES NOT QUALIFY FOR FREE SHIPPING
$685.00MSRP: $749.00

Item #:IM540

Manufacturer: Infiltrator

THIS ITEM MUST BE PICKED UP AT OUR ILLINOIS FACILITY
CALL 1-877-925-5132 FOR AVAILABILITY

  • Triple wall provides a thick composite wall structure that acts like a structural I-beam.
  • Bulkheads offer superior structural stability under heavy loads
  • Reinforced access ports do not distort upon backfilling or during pump-outs
  • Can be pumped dry during pump-outs (no need to refill with water)
  • Resistant to flotation in high water table conditions
  • Can be installed with 6 to 48 inches of cover
  • Available as single or dual compartment tanks
  • Suitable for use as septic and pump tanks
  • Flat bottom allow for easy storage and installation

Infiltrator 540 Gallon Septic Tank Downloadable Documents

FileName
IM540_SpecViewDownload
