Hiblow HP-60 Linear Septic Air Pump

Print

The Hiblow HP-60 Linear Septic Air Pump is used as an aerator on some 500 GPD aerobic treatment systems. The Hiblow HP-60 is extremely quiet and energy efficient. The operating life of this unit is among the best available on the market.

The Hiblow HP 60 is a compatible replacement for the Gast SPP-60, Thomas 5060A, Medo LA-60, Secoh EL-60, and many other 60 LPM units.

This air pump is brand new and as a part of our Whale of a Deal program has a 2 Year Warranty!

In Stock

$310.00MSRP: $395.00

Item #:HP60

Manufacturer: Hiblow

Hiblow HP-60 Specifications

  • 3.5 cfm (cubic feet per minute) Maximum Air Flow (@ 0 PSI)
  • 60 LPM (Liters Per Minute) @ 2.13 PSI
  • 3.6 PSI Maximum Continous Operating Pressure
  • 120 VAC, 60 Hz, 1.3 A, 51 Watts
  • 35 dBA Measured @ 1 meter
  • Dimensions: 9.3'' L x 7.1'' W x 7.8'' H
  • Condition: NEW
  • Includes Rubber 90 with Hose Clamps

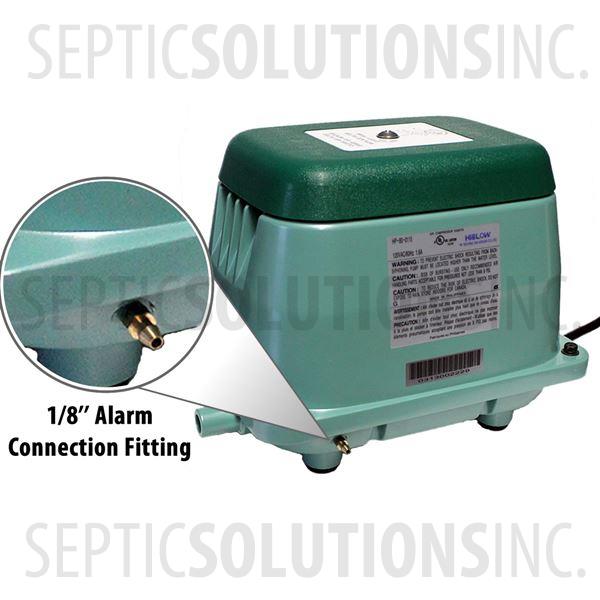

  • Includes 1/8'' Alarm Connection Fitting
  • Replaces Hiblow HP-60-xxxx, Thomas 5060A, Secoh EL-60, Gast SPP-60, Medo LA-60, and Other 60 LPM Linear Air Pumps
  • WHALE OF A DEAL - EXTENDED TWO YEAR WARRANTY!
    (The Standard Manufacturer's Warranty is one year and Septic Solutions' warranties this unit in full for an additional year)

Hiblow HP-60 Applications

The Hiblow HP-60 is used on some 500 GPD rated NSF Class 1 Standard 40 aerobic treatment systems (ATUs). The Hiblow linear diaphragm septic air pumps are widely regarded as the highest quality and longest lasting septic air pumps available on the market. They are extremely quiet and very energy efficient. The Hiblow HP-60 can be used for septic tank aeration as well as an aerator for small ponds and water gardens.

SIZE DOES MATTER

A common misconception is that the air pump just puts air in the water, so it doesn’t really matter which size is used. Nothing could be further from the truth. Air pump sizing is actually very important to the operation of your system, and not every system will use the same size air pump. If you have been our website, then you already know there are many different types and sizes. The air pump size is normally determined by the volume capacity of the tank, the style of air diffusers in the tank, and how many GPD (Gallons Per Day) the system is designed to treat.

Our sales team can make sure you get the right size pump if you are unsure about this aspect of buying a new one. In most cases we only need either the model number of the pump you are replacing, or the brand of your aerobic system and the GPD that it is rated to treat. Again, size does matter and it is very important that you get the correct air pump for your system.

Hiblow HP-60 Frequently Asked Questions

Can the Hiblow HP-60 be left out in the weather or does it need a weatherproof cover?

The Hiblow HP-60 is considered weatherproof and can be installed without a cover. However we highly recommend using an air pump housing to further protect the unit from the elements. Click here to view the air pump housing options.

Does the Hiblow HP-60 come with the fitting to connect to my alarm or control box?

Yes. The Hiblow HP-60 comes with an optional brass barb fitting that will allow you to connect a 1/8'' airline from the air pump to your alarm or control box.

Does the Hiblow HP-60 come with a manufacturer's warranty?

Yes. The Hiblow HP-60 comes with a standard manufacturer's warranty of 1 year, as well as an additonal year of coverage by Septic Solutions because this item is included in our Whale of a Deal program. Every Hiblow HP-60 purchased from Septic Solutions is covered under warranty for 2 years from the date of purchase.

What size airline should I use with the Hiblow HP-60?

The Hiblow HP-60 air pump is designed to be used with 1/2'' ID airline or larger. It comes with a rubber 90 coupling connector and hose clamps.

Which size Hiblow septic air pump do I need?

See our air pump crossover guide below. All of the equivalent models are shown down the columns, with each row representing the brand.

I have a Hiblow HP-60-0110. Will Septic Solutions' Hiblow HP-60 be compatible?

Our Hiblow HP-60 actually comes with the model number HP-60-0115. That is our unique distributor number. The Hiblow HP-60-0110 is the stock Hiblow model and our unit is completley compatible with any HP-60-xxxx.

Refurbished vs New? Which one is the better choice?

We offer the Hiblow HP-60 in refurbished as well as new. Most of our refurbished units have been in operation for 5-7 years. They come into our shop and our technicians replace the diaphragms and any other components neccessary to make the air pump operational again.

If you prefer to install rebuild kits into your air pump yourself, the new Hiblow HP-60 is the route to go. If you prefer to purchase a new pump every 5-7 years when the diaphragms fail, then the refurbished is your best option. Overall the refurbished units are going to be considered "throw away" units when they fail, whereas the new units will be repairable when they fail with parts you can purchase from Septic Solutions.
