Whale of a Deal
  • Hiblow HP-120LL Linear Septic Air Pump with Attached Alarm - Part Number HP120LL-011A
  • Hiblow HP-120LL Linear Septic Air Pump with Attached Alarm - Part Number HP120LL-011A

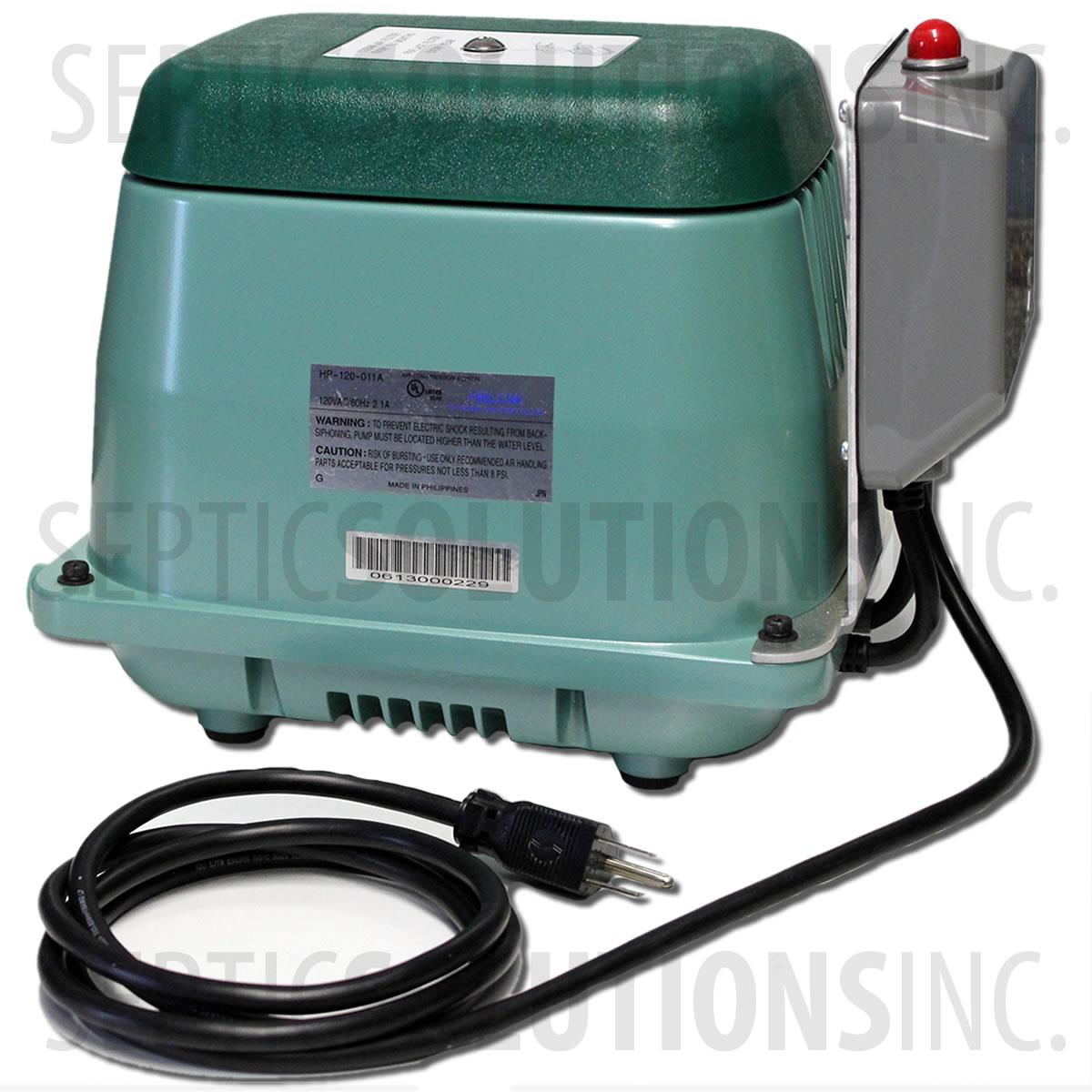

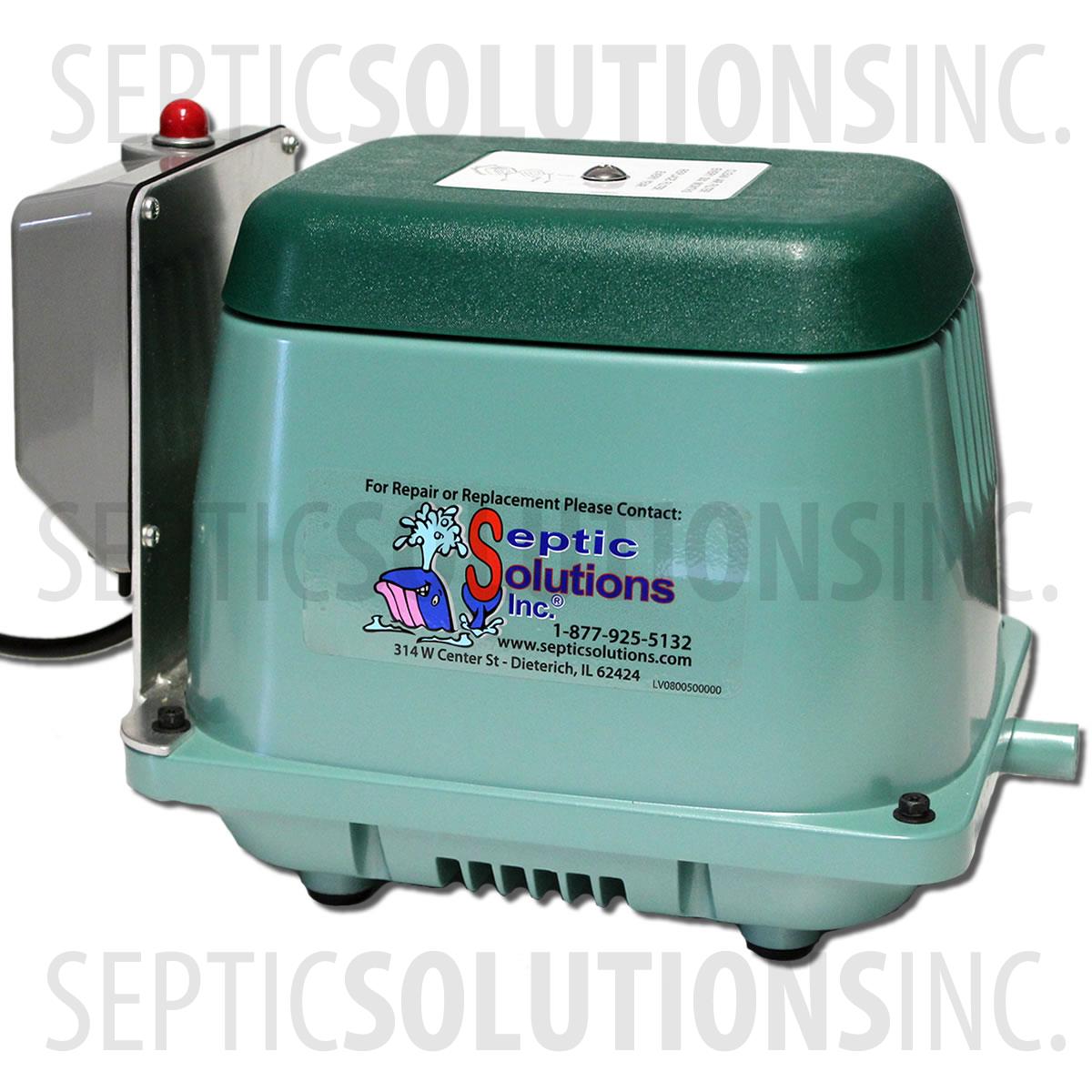

Hiblow HP-120LL Linear Septic Air Pump with Attached Alarm

Print

ATTACHED ALARM SIGNALS AIR PUMP FAILURE

This is the new and improved Hiblow HP120LL. This new design includes improvements for longer lasting diaphragms over the standard HP-100 model. The Hiblow HP-120LL fits many 750 and some 1000 Gallon Per Day aerobic systems.

The Hiblow HP-120LL is a compatible replacement for the Hiblow HP-120, Gast SPP-120, Thomas 5100, Medo LA-120, Secoh EL-120, and many other 120 LPM units. This model includes an attached alarm to signal air pump failure.

This air pump is brand new and as a part of our Whale of a Deal program has a 2 Year Warranty!

In Stock

$579.00MSRP: $665.00

Item #:HP120LL-011A

Manufacturer: Hiblow

Hiblow HP-120LL-011A Specifications

  • 5.2 cfm Open Flow
  • 120 Liters of Air per Minute @ 2.57 PSI
  • 4.3 PSI Maximum Continous Operating Pressure
  • 120VAC, 60 Hz, 1.4A, 100 Watts
  • 45 dBA @ 1 meter
  • Includes Attached Audible and Visual Alarm To Signal Air Pump Failure
  • Alarm Includes Run / Test / Mute Switch
  • Dimensions: 10.1'' L x 7.9'' W x 8.8'' H
  • Condition: NEW
  • Includes Rubber 90 Connection Fitting
  • Replaces Hiblow HP-120-xxxx, Thomas 5120S, Secoh EL-120W, Gast SPP-120, Medo LA-120 and Other 120 LPM units.
  • Fits many 750 GPD and some 1000 GPD Aerobic Treatment Systems (Sizing is Determined By Brand of Aerobic System)
  • WHALE OF A DEAL - EXTENDED TWO YEAR WARRANTY!
    (The Standard Manufacturer's Warranty is one year and Septic Solutions' warranties this unit in full for an additional year)

Hiblow HP-120LL-011A Applications

The Hiblow HP-120LL is used on many 750 GPD and some 1000 GPD rated NSF Class 1 Standard 40 aerobic treatment systems (ATUs). The Hiblow linear diaphragm septic air pumps are widely regarded as the highest quality and longest lasting septic air pumps available on the market. They are extremely quiet and very energy efficient. The Hiblow HP-120LL can be used for septic tank aeration as well as an aerator for small ponds and water gardens.

NEW LONG LIFE (LL) MODEL

The new Hiblow HP-120LL is an improved long life version of the Hiblow HP-120. The original Hiblow HP-120 would average around 2-3 years of diaphragm life. This new and improved Long Life version should see around 5 years out of diaphragms in most applications.

SEPTIC AIR PUMP SIZE DOES MATTER

A common misconception is that the air pump just puts air in the water, so it doesn’t really matter which size is used. Nothing could be further from the truth. Air pump sizing is actually very important to the operation of your system, and not every system will use the same size air pump. If you have been our website, then you already know there are many different types and sizes. The air pump size is normally determined by the volume capacity of the tank, the style of air diffusers in the tank, and how many GPD (Gallons Per Day) the system is designed to treat.

Our sales team can make sure you get the right size pump if you are unsure about this aspect of buying a new one. In most cases we only need either the model number of the pump you are replacing, or the brand of your aerobic system and the GPD that it is rated to treat. Again, size does matter and it is very important that you get the correct air pump for your system.

Hiblow Air Pumps from Septic Solutions

Hiblow HP-120LL-011A Septic Air Pump Downloadable Documents

FileName
HP120LL-011A_ManualViewDownload
HP120LL-011A_SpecViewDownload
