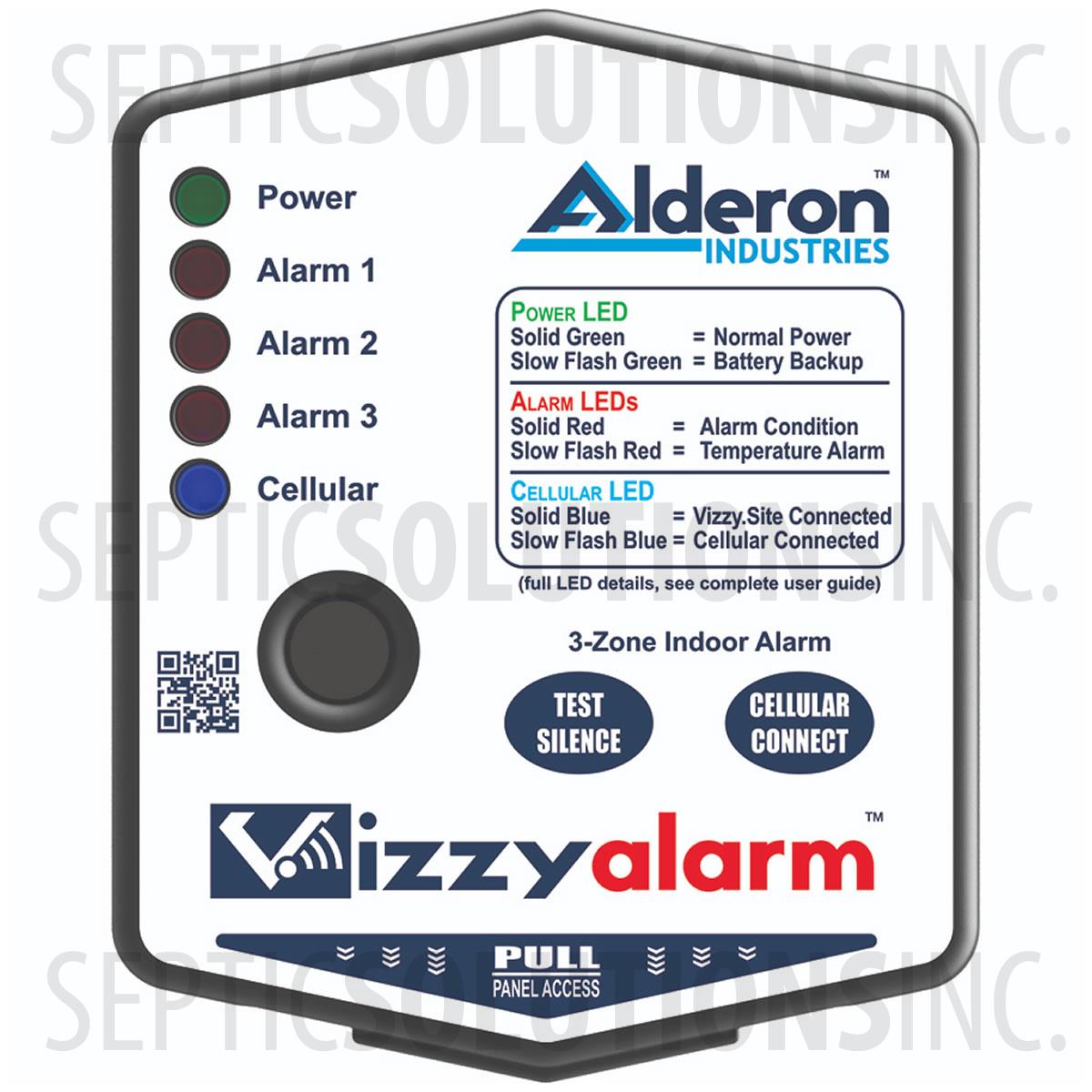

Alderon VizzyAlarm™ 3-Zone WiFi Enabled High Water Alarm Panel

Print

The Vizzyalarm™ 3-Zone WiFi Alarm is an indoor rated alarm panel, powered by a standard 120VAC wall outlet. The Vizzyalarm™ is a multipurpose alarm panel that can be used for a variety of applications, including but not limited to: septic tanks, sumps, holding tanks, pump chambers, water tanks, flow, pressure, condensate, temperature, and any others where a "dry" contact can be connected to the alarm panel.

The 3-Zone alarm panel can accept up to 3 separate alarm inputs and provides a visual and audible alarm indicator for each individual zone.

Made In USACSA

Coming Soon!

$299.00MSRP: $349.00

Item #:2009602

Manufacturer: Alderon

THIS ITEM WILL BE AVAILABLE SOON! CALL (877)-925-5132 TO BE NOTIFIED WHEN THIS ITEM IS AVAILABLE FOR PURCHASE.

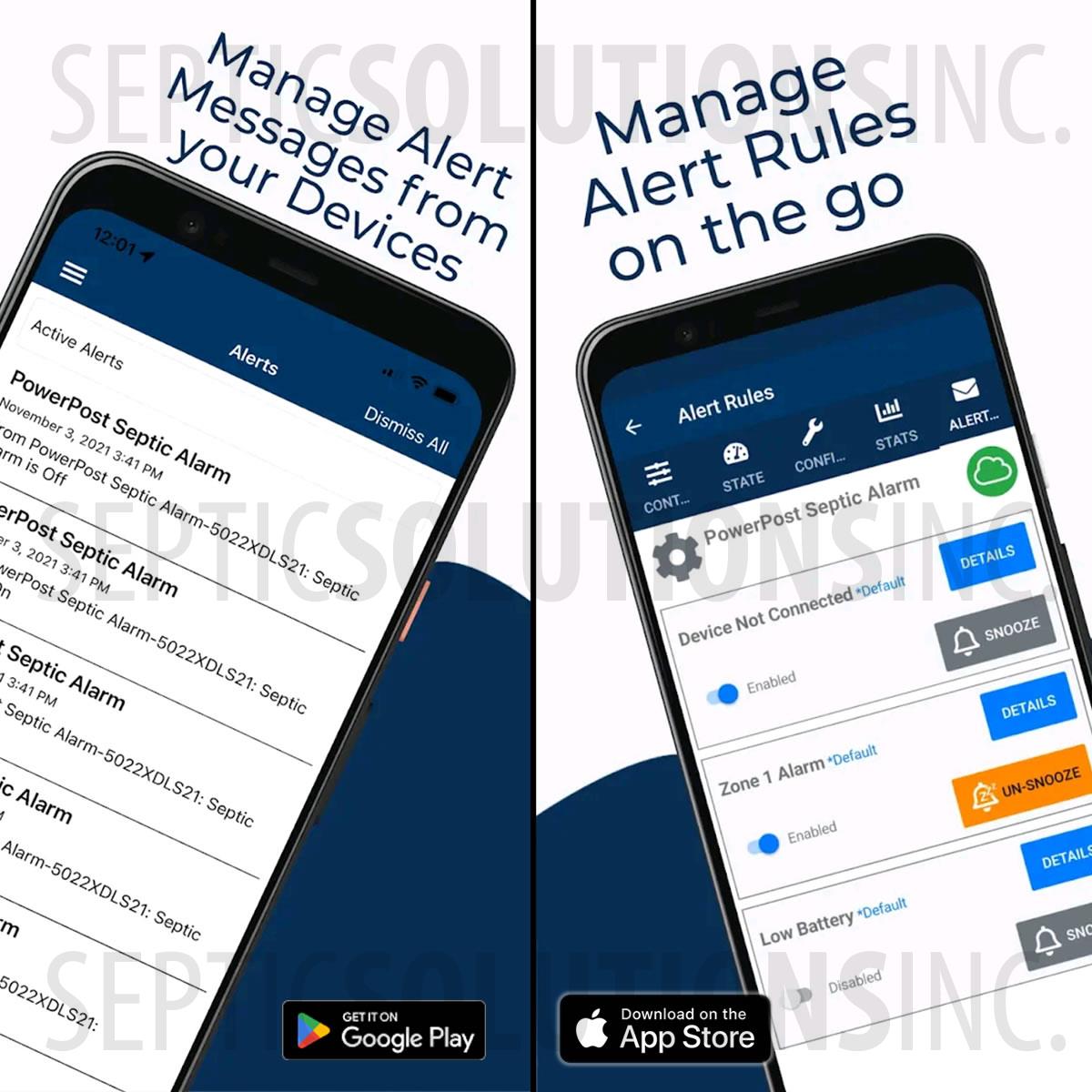

Connect and register your wireless device to the Alderon™ cloud based Vizzy.site™ to begin monitoring and receiving text and email alerts for system conditions. The alarm panel is equipped with audible and visual alarm indication, activated by a normally open or normally closed sensor wired to the terminals and/or the low battery alarm detection.

A variety of sensors can be used such as a float switch, pressure switch, or any "dry" type sensor that "closes" during an alarm condition (normally open or normally closed). Installing (3) AA batteries (not included) provides battery backup during power outages. Use the auxiliary contacts to connect to building automation systems (BAS) and phone dialers. Multiple sensors (signaling device) can be connected for expanded monitoring.

VIZZYALARM™ SPECIFICATIONS:

  • Indoor High Level Alarm
  • 120VAC, 50/60Hze
  • 3-Zone Alarm - accepts (3) inputs for each individual alarm zone
  • Float Switch or Other Sensors Sold Separately
  • Alarm Test and Silence Buttons
  • Alarm Auxiliary Contacts - Used to Connect Alarm to BSA Systems or Remote Devices
  • WiFi Enabled - Connects to an Existing Wireless Network
  • Provides 24/7 Notification via Text and/or Email for High Level Alarm, Alarm Power Lost, or Low Battery
  • Does Not Require Monthly Fees or Contracts
  • NEMA 1 Indoor Enclosure
  • (3) AA Battery Backup (batteries not included)
  • Easy Installation and Setup!
  • Installation and Setup Support Videos

Alderon VizzyAlarm™ 3-Zone WiFi Enabled Alarm Downloadable Documents

FileName
Vizzyalarm 3-Zone Indoor Alarm WiFi VZW-01ViewDownload
