• 300 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Sewage Grinder Pumps and Alternating Control Panel - Part Number 300FPT-LSG202DUP

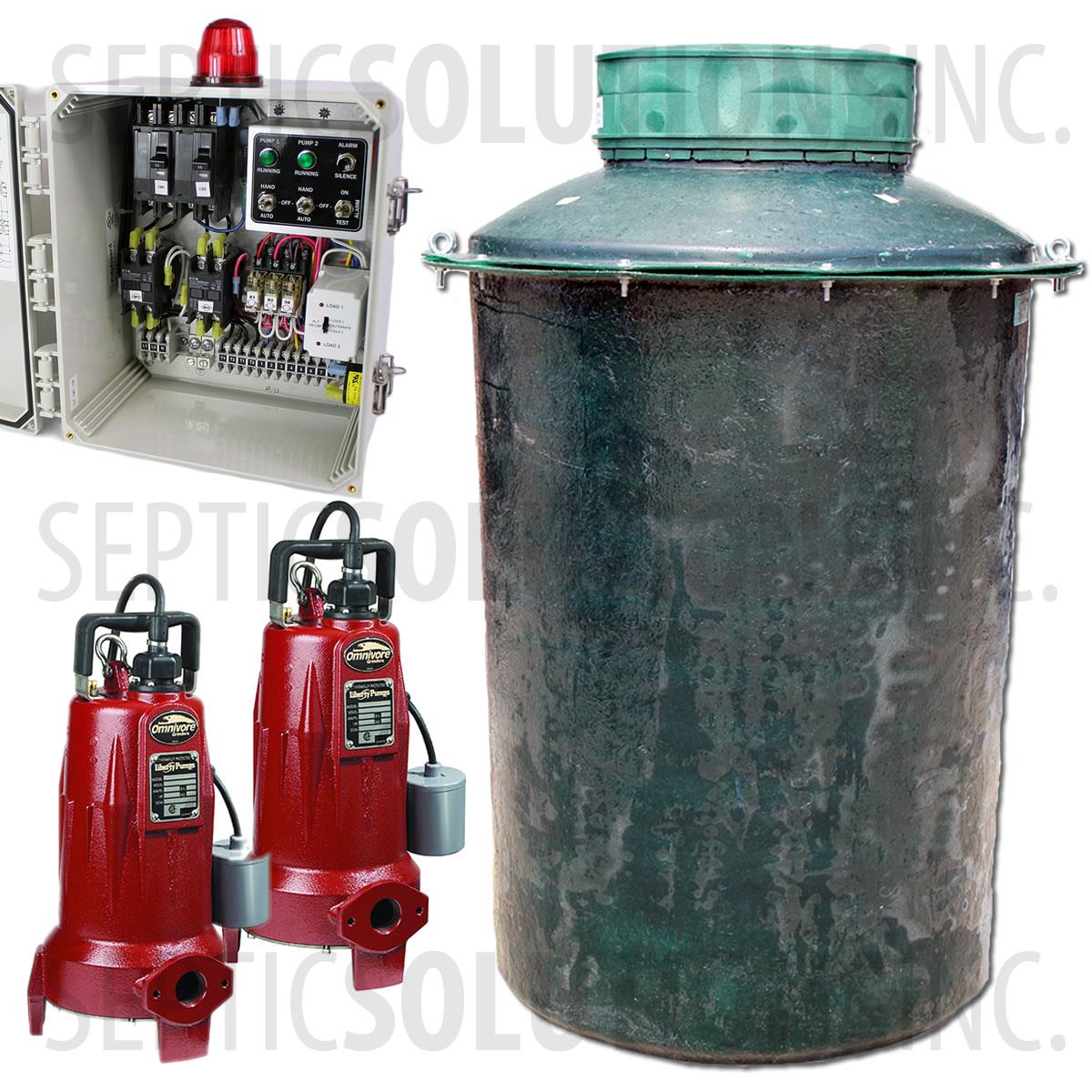

300 Gallon Duplex Fiberglass Pump Station with (2) 2.0 HP Sewage Grinder Pumps and Alternating Control Panel

Print

FOR RAW SEWAGE PUMPING

This 300 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground grinder pump station. This system is designed for raw sewage pumping applicaitons. The typical application for this package is to pump sewage and wastewater from a residential or commercial property to a city sewer.

PUMP STATION FEATURES:

  • 57'' x 67'' Basin with 300 Gallon Capacity
  • (2) 2.0 HP Liberty Grinder Pumps with 1-1/2'' Discharge
  • 30 GPM @ 80ft of Head, Shut Off: 110ft of Head
  • 230VAC, 15.0A, 60Hz, 1 Phase
  • SPI SDC12B Duplex Control Panel with Alarm

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER. SHIPPING IS APPROXIMATELY $300-$600 DEPENDING ON THE DELIVERY LOCATION.

Built To Order Within 1 Business Day

$5250.00MSRP: $7350.00

Item #:300FPT-LSG202DUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT. PLEASE CALL 1-877-925-5132 FOR A QUOTE OR TO PLACE AN ORDER.

300 GALLON FIBERGLASS TANK

  • 57'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 1-1/2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LIBERTY 2.0 HP SEWAGE GRINDER PUMP

  • Model LSG202A
  • 2.0 HP, 230VAC, 15.0A, 60 Hz
  • 30 GPM @ 80ft of Head Pressure
  • Shut Off: 110ft, Max GPM: 50
  • Heavy Duty Cast Iron Construction
  • Patented V-Slice Cutter Technology
  • Shreds Difficult Solids Such As Feminine Products, Wipes, Rags, Etc.
  • Includes Quick-Disconnect 25' Power Cord with Plug
  • Includes 25' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Internal Capacitors - No Control Panel Required!
  • Dimensions: 9.5'' L x 9.5'' W x 19.5'' T
  • Three Year Warranty

#50A506 DUPLEX CONTROL PANEL

  • 120/240VAC, Single Phase, 0-20 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Two 2-pole definite purpose contactors (100,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Two Year Limited Warranty
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

Liberty Omnivore Submersible Sewage Grinder Pumps

300 Gallon Duplex Pump Station with (2) 2.0 HP Grinder Pumps Downloadable Documents

FileName
300FPT_SpecViewDownload
50A506_SpecViewDownload
LSG202A_FeaturesViewDownload
