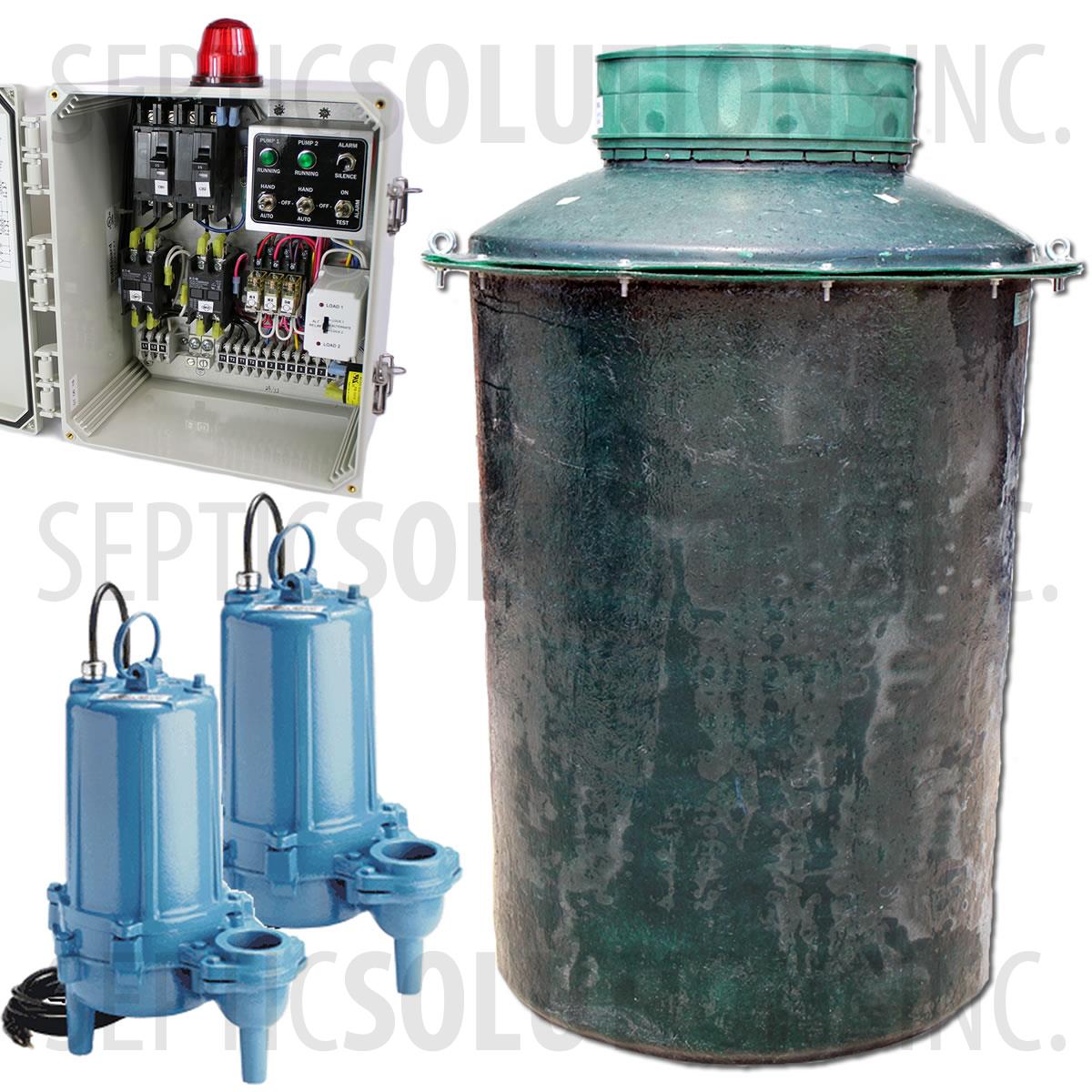

500 Gallon Duplex Fiberglass Pump Station with (2) 1.0 HP Sewage Ejector Pumps and Alternating Control Panel

Print

FOR RAW SEWAGE PUMPING APPLICATIONS

This 500 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install direct burial sewage lift station. The typical application for this package is to pump sewage and wastewater from a household to the septic tank or aerobic system.

Pump Station Features:

  • 70'' x 67'' Basin with 500 Gallon Capactiy
  • (2) 1.0 HP Little Giant Sewage Ejector Pumps with 2'' Discharge
  • 170 GPM @ 15ft of Head, Shut Off: 48ft of Head
  • 230VAC, 13.3A, 60Hz, 1 Phase
  • SPI SDC12B Duplex Control Panel with Alarm

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER. SHIPPING IS APPROXIMATELY $300-$600 DEPENDING ON THE DELIVERY LOCATION.

Built To Order Within 1 Business Day

$3919.00MSRP: $5435.00

Item #:500FPT-10SDUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT. PLEASE CALL 1-877-925-5132 FOR A QUOTE OR TO PLACE AN ORDER.

500 GALLON FIBERGLASS TANK

  • 70'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LITTLE GIANT 1.0 HP SEWAGE EJECTOR PUMP

  • Little Giant Sewage Ejector Pump Model WS102HAM
  • 1.0 HP, 230VAC, 13.3A, 60Hz, 1 Phase
  • 170 GPM @ 15 ft of Head Pressure,
  • Shut Off: 48 ft, Max GPM: 190
  • 2'' NPT Vertical Female Discharge, 2'' Solids Handling
  • Includes Mechanical Float Switch for Automatic Operation
  • Three Year Manufacturer's Warranty

#50A506 DUPLEX CONTROL PANEL

  • 120/240VAC, Single Phase, 0-20 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Two 2-pole definite purpose contactors (100,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Two Year Limited Warranty
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
