• Liberty 290 Series 3/4 HP Submersible Effluent Pump - Part Number 293

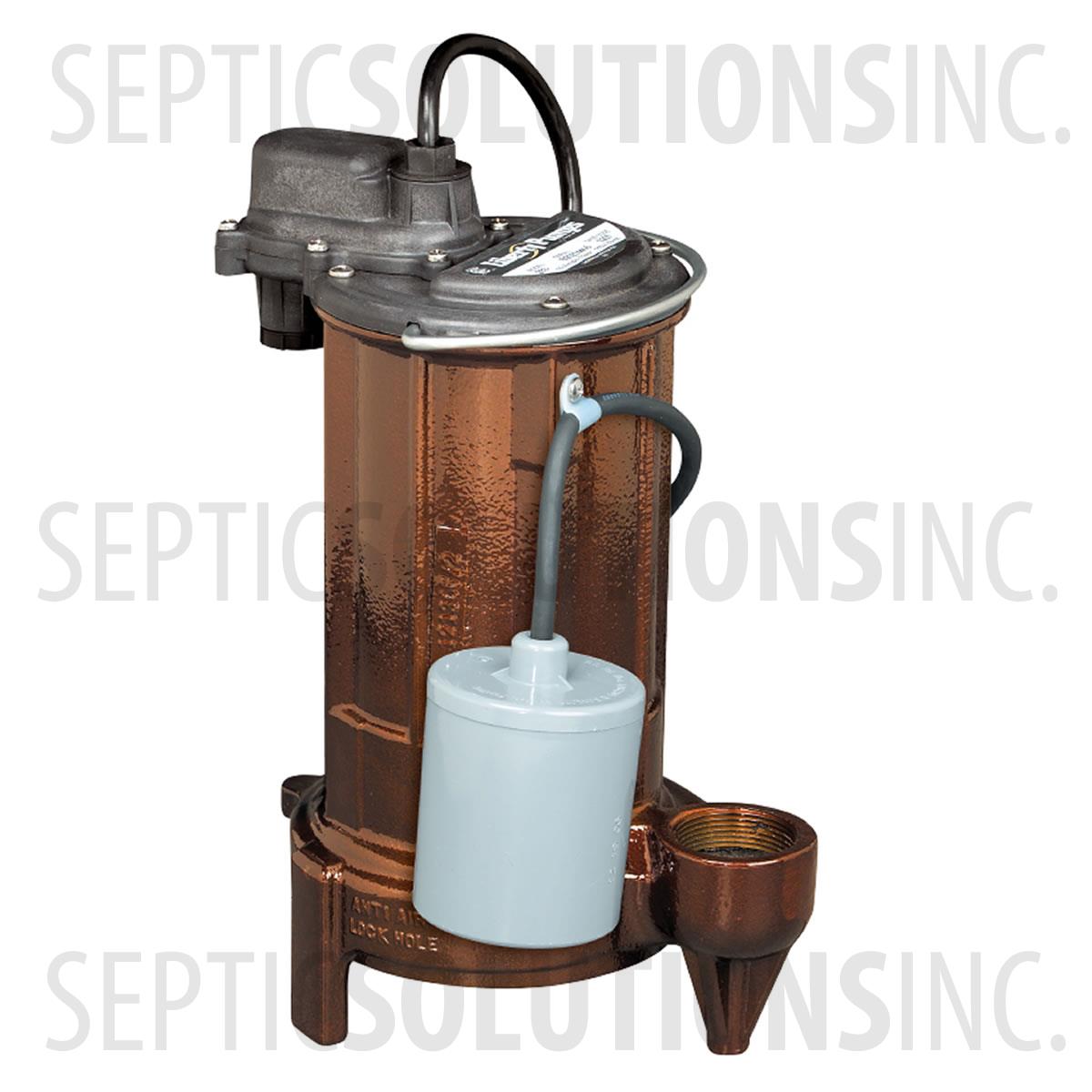

Liberty 290 Series 3/4 HP Submersible Effluent Pump

Print

82 MAX GPM, 47 FT MAX HEAD, 1-1/2" DISCHARGE

The Liberty 290 Series Submersible Effluent Pumps is a mid-range pump for on-site wastewater systems, liquid waste transfer, and commercial sump applications. This series features Liberty's uni-body casting and quick-disconnect power cord. Automatic operation is achieved with a wide angle mechanical float switch with a piggyback plug.

Assembled In USAPowder Coated Tough

In Stock

$438.00MSRP: $584.00

Item #:293

Manufacturer: Liberty Pumps

Power Cord Length:

Liberty 290 Series Specifications

  • Model 293
  • 3/4 HP, 115VAC, 10.4A, 60 Hz
  • 70 GPM @ 15ft of Head Pressure
  • Shut Off: 47ft, Max GPM: 82
  • 1-1/2'' NPT Vertical Female Discharge, 3/4'' Solids Handling
  • Vortex Style Impeller
  • Liberty's One-Piece "Unibody" Casting
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 9.5'' L x 6.3'' W x 13.0'' T
  • Three Year Warranty

Liberty 290 Series Applications

An effluent pump is typically used in septic tank applications. Effluent is the gray wastewater that remains after the solids settle out. - See more at: http://www.libertypumps.com/Category/effluent-pumps#sthash.s9eLcImw.dpuf

An effluent pump is typically used in septic tank applications. Effluent is the gray wastewater that remains after the solids settle out. These pumps can handle smaller solids up to 3/4’’ in size. These units are normally used to pump discharge from a septic tank or an aerobic system to a drain field, secondary treatment system, or surface discharging point.

  • STEP Systems
  • LPP Systems
  • Mound Systems
  • Liquid Waste Transfer
  • Commercial Sump Applications
  • Effluent and Wastewater Removal

Liberty Submersible Sewage and Effluent Pumps

Liberty 290 Series 3/4 HP Submersible Effluent Pump Downloadable Documents

FileName
293_FeaturesViewDownload
293_SpecificationsViewDownload
Liberty-InstallationViewDownload
