• 500 Gallon Duplex Fiberglass Pump Station with (2) 1.0 HP Sewage Grinder Pumps and Alternating Control Panel - Part Number 500FPT-PRG1DUP
  • Product Video
    )

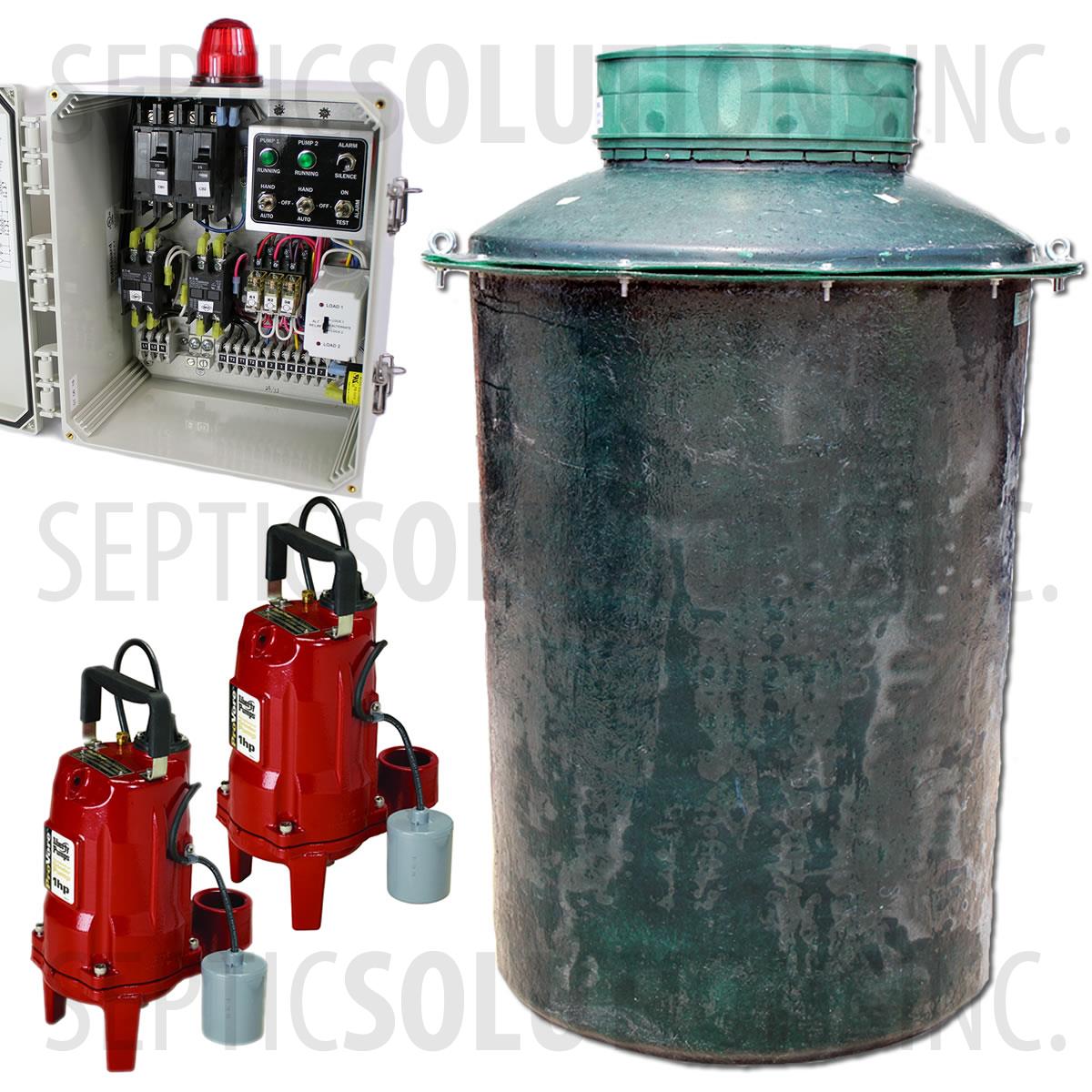

500 Gallon Duplex Fiberglass Pump Station with (2) 1.0 HP Sewage Grinder Pumps and Alternating Control Panel

Print

70'' x 67'' BASIN, 1.0HP SEWAGE GRINDER PUMP, 50 FT OF HEAD, 46 GPM

This 500 gallon fiberglass duplex pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground sewage lift station. The ProVore grinder pump included in this system is designed to handle raw sewage and tough solids. The typical application for this package is to pump sewage and wastewater from a household to the city sewer.

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Built To Order Within 1-2 Business Days

$6129.00MSRP: $6579.00

Item #:500FPT-PRG1DUP

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT. APPROXIMATE TRANSIT TIME IS 2-5 BUSINESS DAYS. PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

500 GALLON FIBERGLASS TANK

  • 70'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LIBERTY 1.0 HP SEWAGE GRINDER PUMP

  • Model PRG101A
  • (2) 1.0 HP, 115VAC, 12.0A, 60 Hz
  • 30 GPM @ 25ft of Head Pressure
  • Shut Off: 50ft, Max GPM: 46
  • 2'' NPT Vertical Female Discharge
  • Heavy Duty Cast Iron Construction
  • Patented V-Slice Cutter Technology
  • Shreds Difficult Solids Such As Feminine Products, Wipes, Rags, Etc.
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 11.1'' L x 7.2'' W x 17.6'' T
  • Three Year Warranty

NOTE: It is not recommended to use a sewage grinder pump to pump into a septic system. A sewage ejector pump is best for this application.

#50A506 DUPLEX CONTROL PANEL

  • 120/240VAC, Single Phase, 0-20 FLA
  • (3) Mechanical Floats w/ 20ft Cords
  • 360 degree red alarm light, High decible audible buzzer (100 dB)
  • Automatic Alternating Relay
  • Pump run light indicator
  • Pump Hand/Off/Auto heavy duty toggle
  • Alarm On/Test/Mute heavy duty toggle
  • Field wiring terminal strips
  • Two 2-pole definite purpose contactors (100,000 cycle rating)
  • Motor circuit breaker
  • 3 amp control/alarm fuses
  • Color Coded Wiring
  • Dimensions: 16.25'' W x 19.63'' T x 6.25'' D
  • NEMA 4X Enclosure, UL 508A Listed
  • Two Year Limited Warranty
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

500 Gallon Duplex Pump Station w/ (2) 1 HP Liberty Grinder Pumps Videos

Liberty ProVore Residential Sewage Grinder Pump

Product Video
)

500 Gallon Duplex Pump Station w/ (2) 1 HP Liberty Grinder Pumps Downloadable Documents

FileName
500FPT_SpecViewDownload
500FPT-PRG1DUP_1ViewDownload
50A506_SpecViewDownload
PRG101_FeaturesViewDownload
PRG101_SpecificationsViewDownload
Pump-Station-Backfill-InstructionsViewDownload
ThumbsViewDownload
