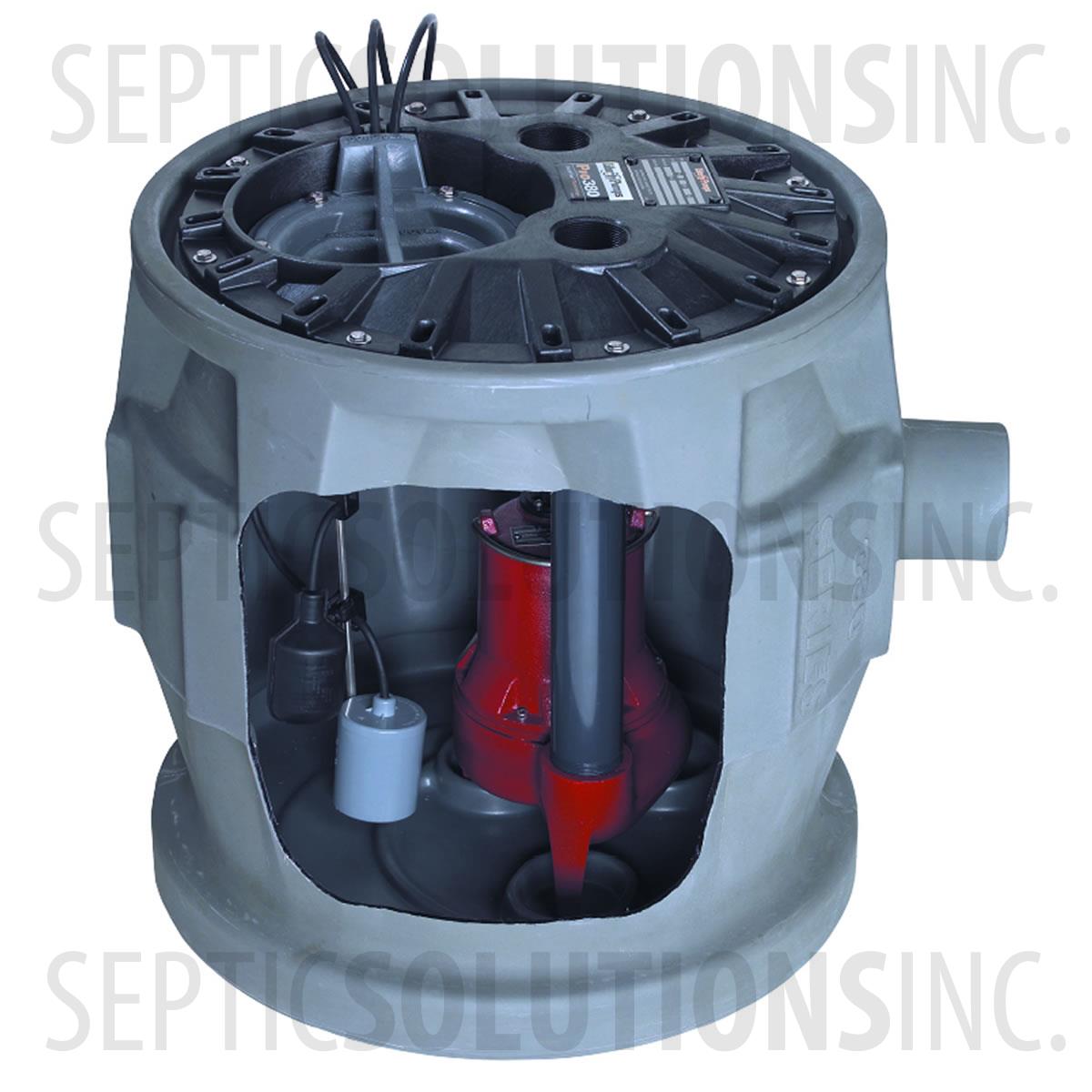

Liberty Pro380-Series Pre-Packaged Sewage Pump System with 4/10 HP Sewage Ejector Pump

Print

140 MAX GPM, 20 FT MAX HEAD, 2" DISCHARGE

The Pro380-Series from Liberty Pumps is the most advanced residential sewage package available! The Pro380-Series features a large 41 gallon capacity tank with integrally molded handles and an anti-flotation collar. This Liberty sewage package arrives from the factory pre-assembled with QuickTree Technology saving valuable labor time on the job site.

In Stock

$659.00MSRP: $849.00

Item #:P382LE41

Manufacturer: Liberty Pumps

Liberty Pro380-Series Specifications

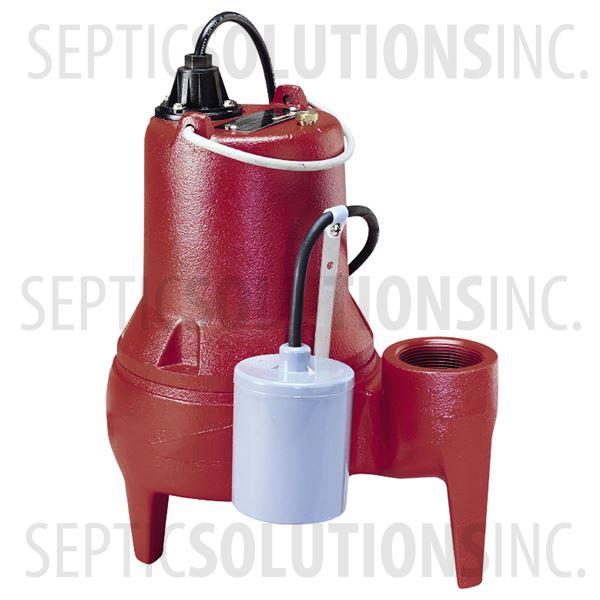

LE40 4/10 HP Sewage Ejector Pump

  • Model LE41A
  • 4/10 HP, 115VAC, 12.0A, 60 Hz
  • 100 GPM @ 10ft of Head Pressure
  • Shut Off: 20ft, Max GPM: 140
  • 2'' NPT Vertical Female Discharge, 2'' Solids Handling
  • Heavy Duty Cast Iron Construction
  • Vortex Impeller Made of High Temp Engineering Polymer Permits Passage of Solids without Clogging
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 10.9'' L x 7.5'' W x 13.8'' T
  • Three Year Warranty

24'' X 24'' Basin

  • 41 Gallon Capacity
  • SCH 80 2'' Discharge Pipe
  • Stainless Steel Cover Bolts
  • Integrated Cord Seal Technology
  • Integral Rubber Gaskets Attached To The Covers
  • Integrally Molded No-Hub 4'' Inlet
  • QuickTree Removable Float System Allows Easy Access To Switch - Separate From Pump!
  • Molded Anti-Flotation Collar
  • Integrally Molded Torque-Stops for Pump Stability

Liberty Pro380-Series Applications

The Liberty Pro Series Pre-Assembled Sewage System is one of the most feature packaged, best selling sewage systems on the market. These packages are designed to be installed in a basement floor or crawlspace.

  • Residential Sewage Pumping
  • Pumping Sewage from a Basement to Sewer or Septic
  • Pumping Sewage from a Crawl Space to Sewer or Septic

Liberty Submersible Sewage and Effluent Pumps

Liberty Pro380-Series Sewage Pump System Downloadable Documents

FileName
LE41A_SpecificationsViewDownload
Pro370-380-680_InstallationViewDownload
Pro380_FeaturesViewDownload
