• Liberty ProVore 680 1.0 HP Duplex Sewage Grinder System - Part Number P682XPRG101

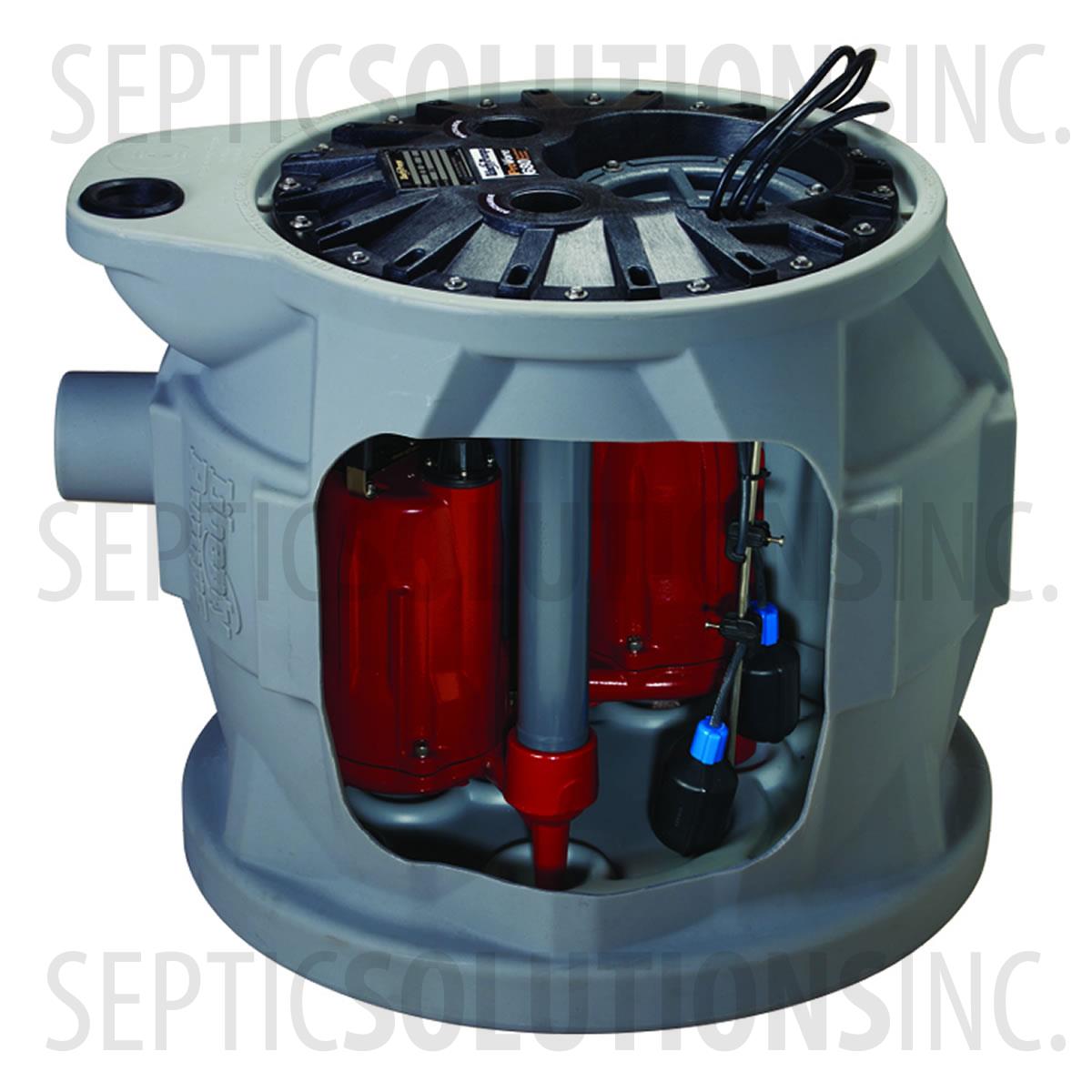

Liberty ProVore 680 1.0 HP Duplex Sewage Grinder System

Print

46 MAX GPM, 50 FT MAX HEAD, 2" DISCHARGE

The Pro680-Series from Liberty Pumps is the most advanced residential sewage package available! The Pro680-Series features a large 46 gallon capacity tank with integrally molded handles and an anti-flotation collar. This Liberty sewage package arrives from the factory pre-assembled with QuickTree Technology saving valuable labor time on the job site.

Includes Duplex Liberty ProVore 1.0 HP Sewage Grinder Pumps and Duplex Alternating Control Panel with Alarm

SHIPS IN 1-2 BUSINESS DAYS VIA LTL FREIGHT

$3760.00MSRP: $4916.00

Item #:P682XPRG101

Manufacturer: Liberty Pumps

Liberty ProVore 680 Specifications

Duplex ProVore 1.0 HP Sewage Grinder Pumps

  • Model PRG101A
  • 1.0 HP, 115VAC, 12.0A, 60 Hz
  • 30 GPM @ 25ft of Head Pressure
  • Shut Off: 50ft, Max GPM: 46
  • 2'' NPT Vertical Female Discharge
  • Heavy Duty Cast Iron Construction
  • Patented V-Slice Cutter Technology
  • Shreds Difficult Solids Such As Feminine Products, Wipes, Rags, Etc.
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes Duplex Alternating Pump Controller with Plug-In Ready Cords for Quick Installation
  • Dimensions: 11.1'' L x 7.2'' W x 17.6'' T
  • Three Year Warranty

30'' X 24'' Basin

  • 41 Gallon Capacity
  • SCH 80 2'' Discharge Pipe
  • Stainless Steel Cover Bolts
  • Integrated Cord Seal Technology
  • Integral Rubber Gaskets Attached To The Covers
  • Integrally Molded No-Hub 4'' Inlet
  • QuickTree Removable Float System Allows Easy Access To Switch - Separate From Pump!
  • Molded Anti-Flotation Collar
  • Integrally Molded Torque-Stops for Pump Stability

Liberty ProVore 680 Applications

The Liberty Pro Series Pre-Assembled Sewage System is one of the most feature packaged, best selling sewage systems on the market. These packages are designed to be installed in a basement floor or crawlspace.

  • Residential Sewage Pumping
  • Pumping Sewage from a Basement to Sewer or Septic
  • Pumping Sewage from a Crawl Space to Sewer or Septic

Liberty ProVore 680 1.0 HP Duplex Sewage Grinder System Videos

Liberty ProVore Residential Sewage Grinder Pump

Liberty ProVore 680 1.0 HP Duplex Sewage Grinder System Downloadable Documents

FileName
ProVore_380-680Series_SpecificationsViewDownload
ProVore_680Series_FeaturesViewDownload
ProVore_InstallationViewDownload
