• 100 Gallon Simplex Polyethylene Pump Station with 3/4 HP Sewage Ejector Pump - Part Number 100PPT-LE71

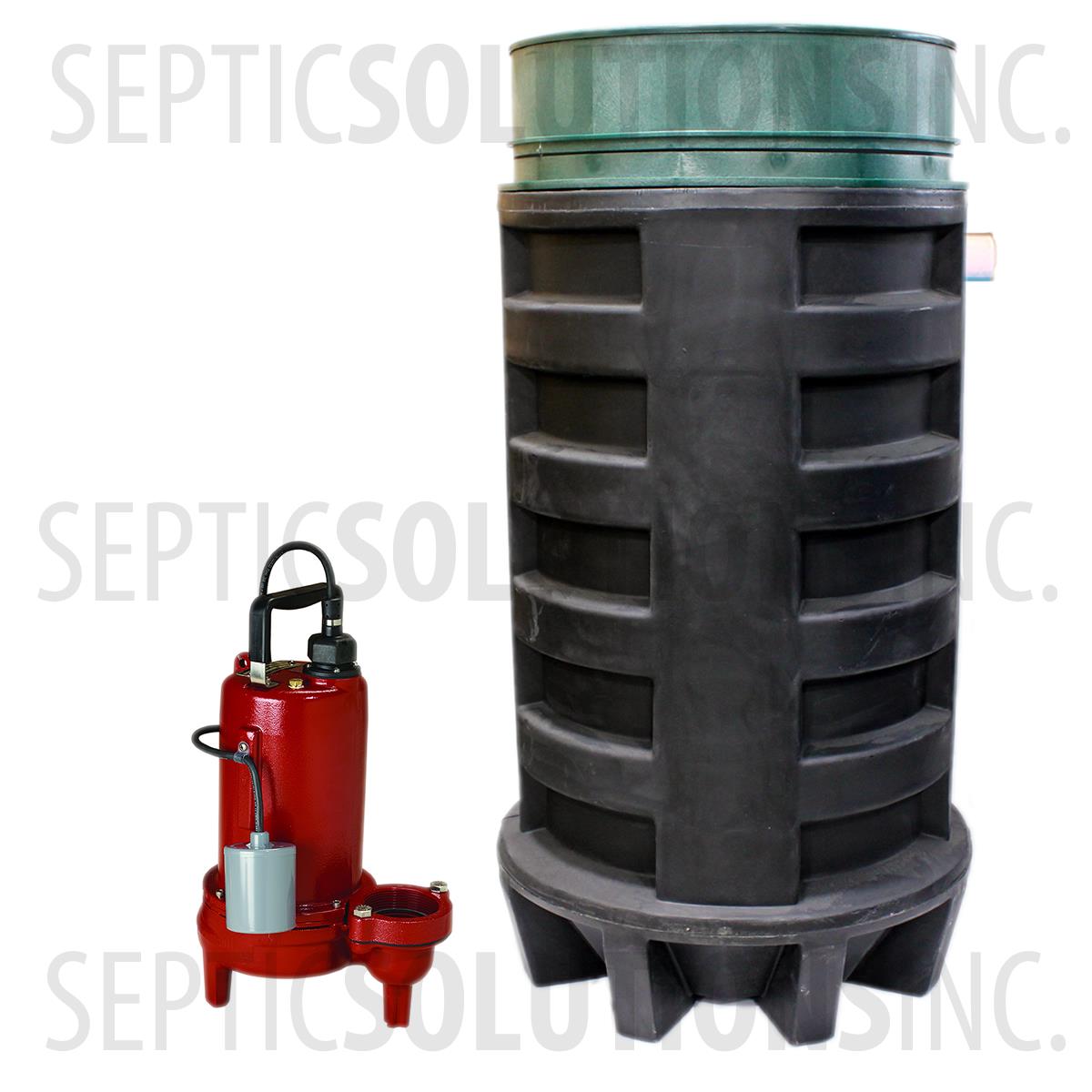

100 Gallon Simplex Polyethylene Pump Station with 3/4 HP Sewage Ejector Pump

Print

28'' x 57'' BASIN, 3/4 HP SEWAGE PUMP, 29 FT OF HEAD, 160 GPM

This 100 gallon polyethylene pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground sewage lift station. The Liberty LE71 3/4HP sewage ejector pump included in this system is designed for raw sewage pumping applications. The typical application for this package is to pump sewage and wastewater from a household to the septic system or city sewer.

THIS ITEM SHIPS LTL FREIGHT. PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

Assembled In USA

Built To Order Within 1-2 Business Days

$1950.00MSRP: $2199.00

Item #:100PPT-LE71

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

100 GALLON POLYETHYLENE TANK

  • 28'' Diameter, 57'' Tall
  • Heavy Duty Poly Plastic Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

    LIBERTY 3/4 HP SEWAGE PUMP

    • Model LE71A
    • 3/4 HP, 115VAC, 12.0A, 60 Hz
    • 100 GPM @ 15ft of Head Pressure
    • Shut Off: 30ft, Max GPM: 160
    • 2'' NPT Vertical Female Discharge, 2'' Solids Handling
    • Heavy Duty Cast Iron Construction
    • 2-Vane Cast Iron Impeller
    • Includes Quick-Disconnect 10' Power Cord with Plug
    • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
    • Dimensions: 12.5'' L x 9.0'' W x 15.3'' T
    • Three Year Warranty

    RELATED ITEMS SOLD SEPARATELY

    These items are considered optional but are often added to our pump stations:

    This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

    100 Gallon Pump Station with 3/4 HP Sewage Ejector Pump Downloadable Documents

    FileName
    100GallonPolyTank-SpecificationViewDownload
    LE71_FeaturesViewDownload
    LE71A_SpecificationsViewDownload
    Pump-Station-Backfill-InstructionsViewDownload
