• 70 Gallon Simplex Fiberglass Pump Station with 1/2 HP Effluent Pump - Part Number 2153-283

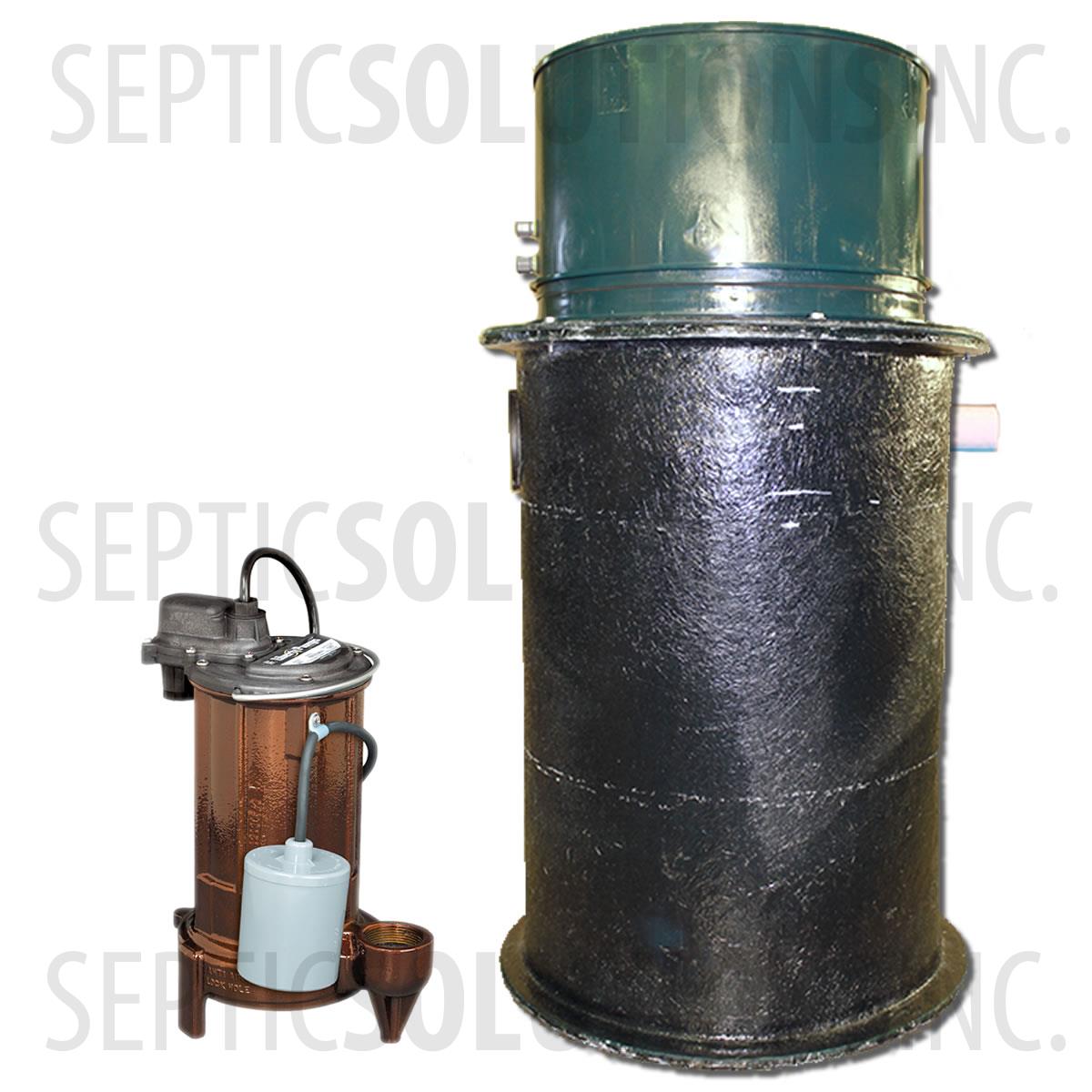

70 Gallon Simplex Fiberglass Pump Station with 1/2 HP Effluent Pump

Print

28'' x 52'' BASIN, 1/2 HP EFFLUENT PUMP, 37 FT OF HEAD, 70 GPM

This 70 gallon fiberglass pump station comes pre-assembled and ready to install with all of the components needed to install a direct burial in-ground lift station. The Liberty 280 series effluent pump included in this package is designed to pump treated effluent with minimal solids. The typical application for this package is to pump treated effluent from a septic tank or aerobic treatment system to a leach field or secondary treatment system.

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Built To Order Within 1-2 Business Days

$1425.00MSRP: $1899.00

Item #:2153-283

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

70 GALLON FIBERGLASS TANK

  • 28'' Diameter, 52'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 20'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 1-1/2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LIBERTY 1/2 HP EFFLUENT PUMP

  • Model 283
  • 1/2 HP, 115VAC, 8.0A, 60 Hz
  • 50 GPM @ 15ft of Head Pressure
  • Shut Off: 37ft, Max GPM: 70
  • 1-1/2'' NPT Vertical Female Discharge, 3/4'' Solids Handling
  • Vortex Style Impeller
  • Liberty's One-Piece "Unibody" Casting
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 9.5'' L x 6.4'' W x 13.2'' T
  • Three Year Warranty

RELATED ITEMS SOLD SEPARATELY

These items are considered optional but are often added to our pump stations:

This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

70 Gallon Pump Station with 1/2 HP Effluent Pump Downloadable Documents

FileName
283_FeaturesViewDownload
70GallonFiberglassTank_SpecViewDownload
Pump-Station-Backfill-InstructionsViewDownload
