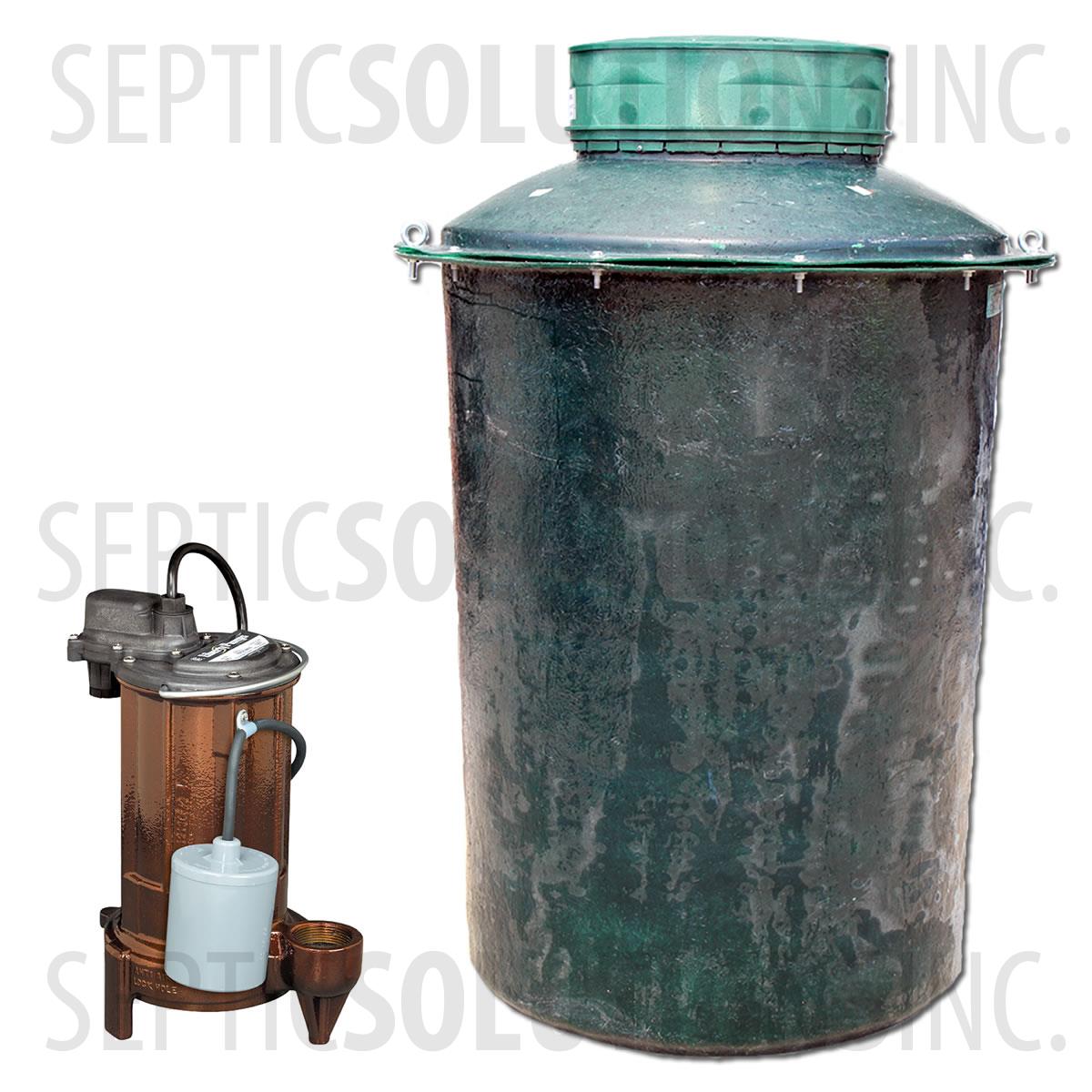

300 Gallon Simplex Fiberglass Pump Station with 1/2 HP Effluent Pump
Print57" Diameter x 71" Tall Basin • 37 ft Max Head • Up to 70 GPM • Pre-Assembled Effluent Lift Station
This 300-gallon simplex effluent pump station is a complete, ready-to-install solution designed for pumping treated effluent with minimal solids. It features a durable fiberglass basin paired with a reliable 1/2 HP Liberty effluent pump — ideal for moving clarified wastewater from a septic tank or aerobic treatment system to a leach field, drip irrigation system, or secondary treatment area.
Built To Order Within 1-2 Business Days
Item #:300FPT-283
Manufacturer: Septic Solutions
FEATURES & BENEFITS
- Pre-Assembled & Ready to Install — Arrives fully assembled with pump, basin, access cover, discharge piping, and mechanical float switch.
- Heavy-Duty Fiberglass Construction — 300-gallon tank engineered for direct burial with excellent corrosion resistance and structural strength.
- Liberty 1/2 HP Effluent Pump — Vortex impeller handles up to 3/4" solids in treated effluent; designed for continuous duty in demanding applications.
- Solid Performance — Delivers up to 70 GPM with a maximum head of 37 ft.
- Easy Access — Includes a 24" diameter Polylok access cover; optional risers available to bring service to grade.
- Reliable Automatic Operation — Includes a wide-angle mechanical float switch with piggyback plug.
TECHNICAL SPECIFICATIONS
300-Gallon Fiberglass Tank
- Dimensions: 57" Diameter x 71" Tall
- Heavy-duty fiberglass for direct burial
- 24" Polylok access cover
- 4" inlet with grommet
- 2" SCH 40 discharge pipe sealed with grommet
- Cord seals for power and float switch
Liberty 1/2 HP Effluent Pump (Model 283)
- 1/2 HP, 115V, 8.0A, 60 Hz, single phase
- Performance: 50 GPM @ 15 ft head • Max 70 GPM • Shut-off: 37 ft
- 1-1/2" NPT vertical female discharge
- Handles 3/4" solids
- Vortex style impeller with Liberty’s one-piece “Unibody” casting
- Includes 10 ft quick-disconnect power cord with plug
- Includes 10 ft wide-angle mechanical float switch with piggyback plug
- Dimensions: 9.5" L x 6.4" W x 13.2" H
- 3-Year Manufacturer Warranty
Important Note: Effluent pumps are designed for treated effluent with minimal solids (after a septic tank or ATU). They are not for raw sewage (use sewage ejector or grinder pumps for that).
APPLICATIONS
- Pumping effluent from septic tank to leach field or drip system
- Aerobic treatment system discharge
- Mound systems or elevated sand mounds
- Retrofitting or repairing existing drain fields
- Any application requiring reliable effluent transport
WHAT'S INCLUDED
- 300-gallon fiberglass pump basin
- Liberty 1/2 HP effluent pump (Model 283)
- Wide-angle mechanical float switch
- 24" Polylok access cover
- Pre-installed discharge piping and seals
- All necessary grommets and hardware
RELATED ITEMS SOLD SEPARATELY
These items are considered optional but are often added to our pump stations:
- Alarm and/or Control Panel (Choose Only One of These Options):
- Other Optional Items:
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details
