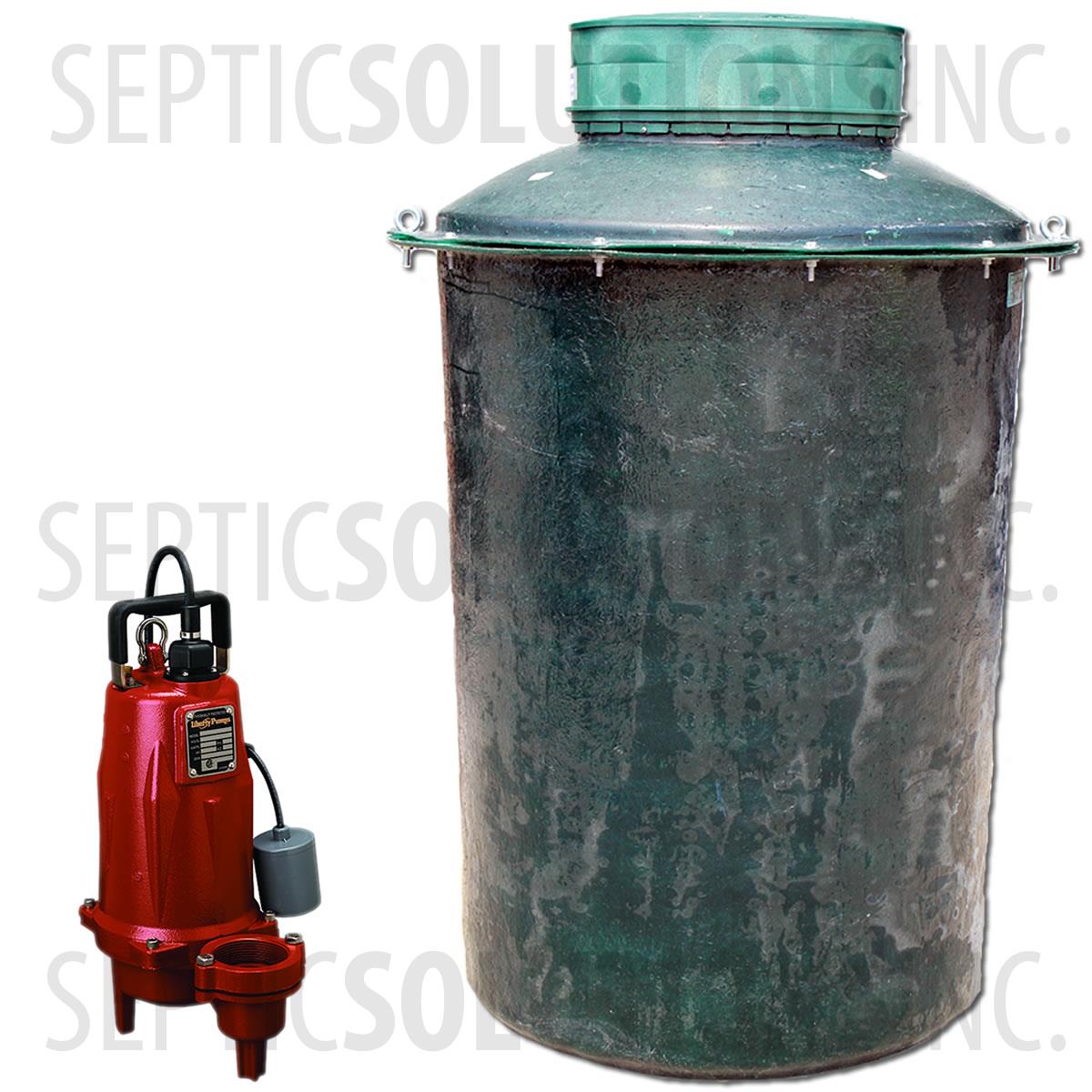

300 Gallon Simplex Fiberglass Pump Station with 1.0 HP Liberty Sewage Ejector Pump
Print57" Diameter x 71" Tall Basin • 53 ft Max Head • Up to 200 GPM • Pre-Assembled Sewage Lift Station
This 300-gallon simplex sewage ejector pump station is a heavy-duty, ready-to-install solution designed for residential and light commercial raw sewage applications. It features a durable fiberglass basin paired with a powerful 1.0 HP Liberty LEH102A sewage ejector pump with high-head performance, making it ideal for homes with basements or low-lying plumbing that need to pump sewage to a septic tank or city sewer main where gravity flow is not possible or higher head pressure is required.
Built To Order Within 1-2 Business Days
Item #:300FPT-LEH102
Manufacturer: Septic Solutions
FEATURES & BENEFITS
- Pre-Assembled & Ready to Install — Arrives fully assembled with pump, basin, access cover, discharge piping, and mechanical float switch for fast installation.
- Heavy-Duty Fiberglass Construction — 300-gallon tank (57" diameter x 71" tall) engineered for direct burial with excellent corrosion resistance and structural strength.
- Powerful 1.0 HP Liberty Sewage Ejector Pump — Handles up to 2" solids with strong high-head performance, perfect for demanding applications.
- High Performance — Delivers up to 200 GPM with a maximum head of 53 ft and a 15 ft minimum head requirement.
- Easy Access — Includes a 24" diameter Polylok access cover; optional risers available to bring service to grade.
- Reliable Automatic Operation — Includes a wide-angle mechanical float switch with piggyback plug.
TECHNICAL SPECIFICATIONS
300-Gallon Fiberglass Tank
- Dimensions: 57" Diameter x 71" Tall
- Heavy-duty fiberglass for direct burial
- 24" Polylok access cover
- 4" inlet with grommet
- 2" SCH 40 discharge pipe sealed with grommet
- Cord seals for power and float switch
Liberty 1.0 HP Sewage Ejector Pump (Model LEH102A)
- 1.0 HP, 230V, 12.0A, 60 Hz, single phase
- Performance: 125 GPM @ 35 ft head • Max 200 GPM • Shut-off: 53 ft
- 15 FT MINIMUM HEAD REQUIREMENT!
- 2" NPT vertical female discharge
- Handles 2" solids
- 2-vane cast iron impeller
- Heavy-duty cast iron construction
- Includes 10 ft quick-disconnect power cord with plug
- Includes 10 ft wide-angle mechanical float switch with piggyback plug
- Dimensions: 12.6" L x 9.0" W x 15.3" H
- 3-Year Manufacturer Warranty
Important Note: Sewage ejector pumps are designed for pumping raw sewage into a septic tank or gravity sewer main. For pumping to a pressurized force main, use grinder pumps instead.
APPLICATIONS
- Homes with basements or below-grade bathrooms
- Pumping sewage from the house to a septic tank
- Retrofitting existing properties to connect to city sewer
- New construction on lots without gravity drainage
- Applications requiring higher head pressure
WHAT'S INCLUDED
- 300-gallon fiberglass pump basin
- Liberty 1.0 HP sewage ejector pump (LEH102A)
- Wide-angle mechanical float switch
- 24" Polylok access cover
- Pre-installed discharge piping and seals
- All necessary grommets and hardware
RELATED ITEMS SOLD SEPARATELY
These items are considered optional but are often added to our pump stations:
- Alarm and/or Control Panel (Choose Only One of These Options):
- Other Optional Items:
This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.
