• 500 Gallon Simplex Fiberglass Pump Station with 1.0 HP Liberty Sewage Ejector Pump - Part Number 500FPT-LEH102

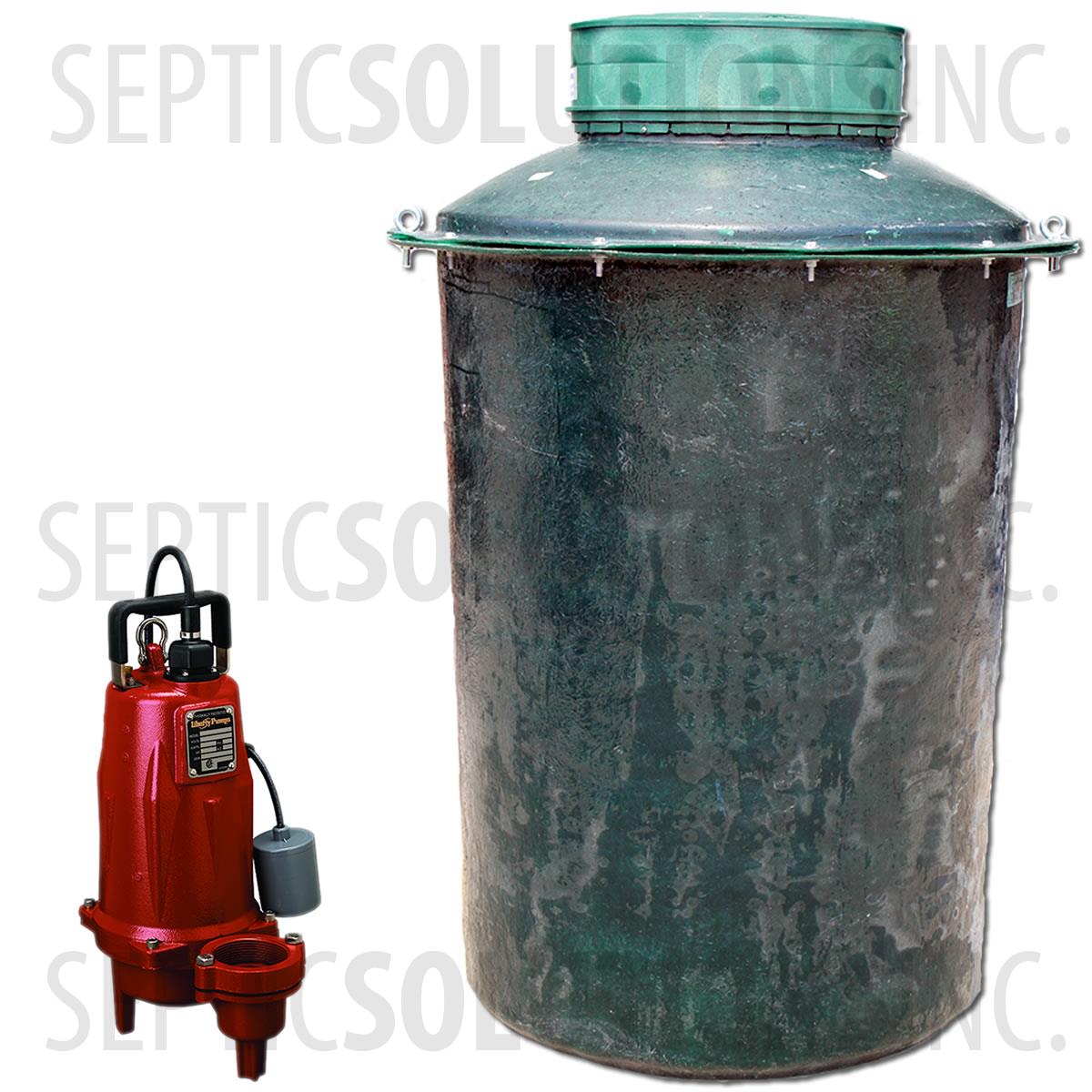

500 Gallon Simplex Fiberglass Pump Station with 1.0 HP Liberty Sewage Ejector Pump

Print

70'' x 67'' BASIN, 1.0 HP SEWAGE PUMP, 53 FT OF HEAD, 200 GPM

This 500 gallon fiberglass pump station comes pre-assembled and ready to install with all of the components needed to install an outdoor pump station. The Liberty LEH102 sewage ejector pump included in this unit is designed for raw sewage pumping applications. The typical application for this package is to pump sewage and wastewater from a household to the septic system or city sewer.

THIS ITEM SHIPS VIA LTL FREIGHT. PLEASE CALL 1-877-925-5132 TO GET A SHIPPING QUOTE OR PLACE AN ORDER.

Built To Order Within 1-2 Business Days

$3525.00MSRP: $3999.00

Item #:500FPT-LEH102

Manufacturer: Septic Solutions

THIS ITEM SHIPS LTL FREIGHT.
PLEASE EMAIL SALES@SEPTICSOLUTIONS.COM FOR A QUOTE OR CALL (877)-925-5132 TO PLACE AN ORDER.

500 GALLON FIBERGLASS TANK

  • 70'' Diameter, 67'' Tall
  • Heavy Duty Fiberglass Designed For Direct Burial
  • 24'' Diameter Polylok Access Cover
  • Risers Available To Bring Access To Grade
  • 4'' Inlet Hole with Grommet
  • 2'' SCH 40 Discharge Pipe Sealed with Grommet
  • Cord Seals For Power and Float

LIBERTY 1.0HP SEWAGE PUMP

  • Model LEH102A
  • 1.0 HP, 230VAC, 12.0A, 60 Hz
  • 125 GPM @ 35ft of Head Pressure
  • 15' MINIMUM HEAD REQUIREMENT
  • Shut Off: 53ft, Max GPM: 200
  • 2'' NPT Vertical Female Discharge, 2'' Solids Handling
  • Heavy Duty Cast Iron Construction
  • 2-Vane Cast Iron Impeller
  • Includes Quick-Disconnect 10' Power Cord with Plug
  • Includes 10' Wide Angle Mechanical Float Switch with Piggyback Plug
  • Dimensions: 12.6'' L x 9.0'' W x 15.3'' T
  • Three Year Warranty

RELATED ITEMS SOLD SEPARATELY

These items are considered optional but are often added to our pump stations:

This item is custom built to our customers' site specific needs. Therefore it is considered a "Custom Product" and cannot be returned for a refund. See our Return Policy for more details.

500 Gallon Pump Station with 1.0 HP Liberty Sewage Ejector Pump Downloadable Documents

FileName
500FiberglassTank_SpecViewDownload
LEH102A_FeaturesViewDownload
LEH102A_SpecificationsViewDownload
Pump-Station-Backfill-InstructionsViewDownload
